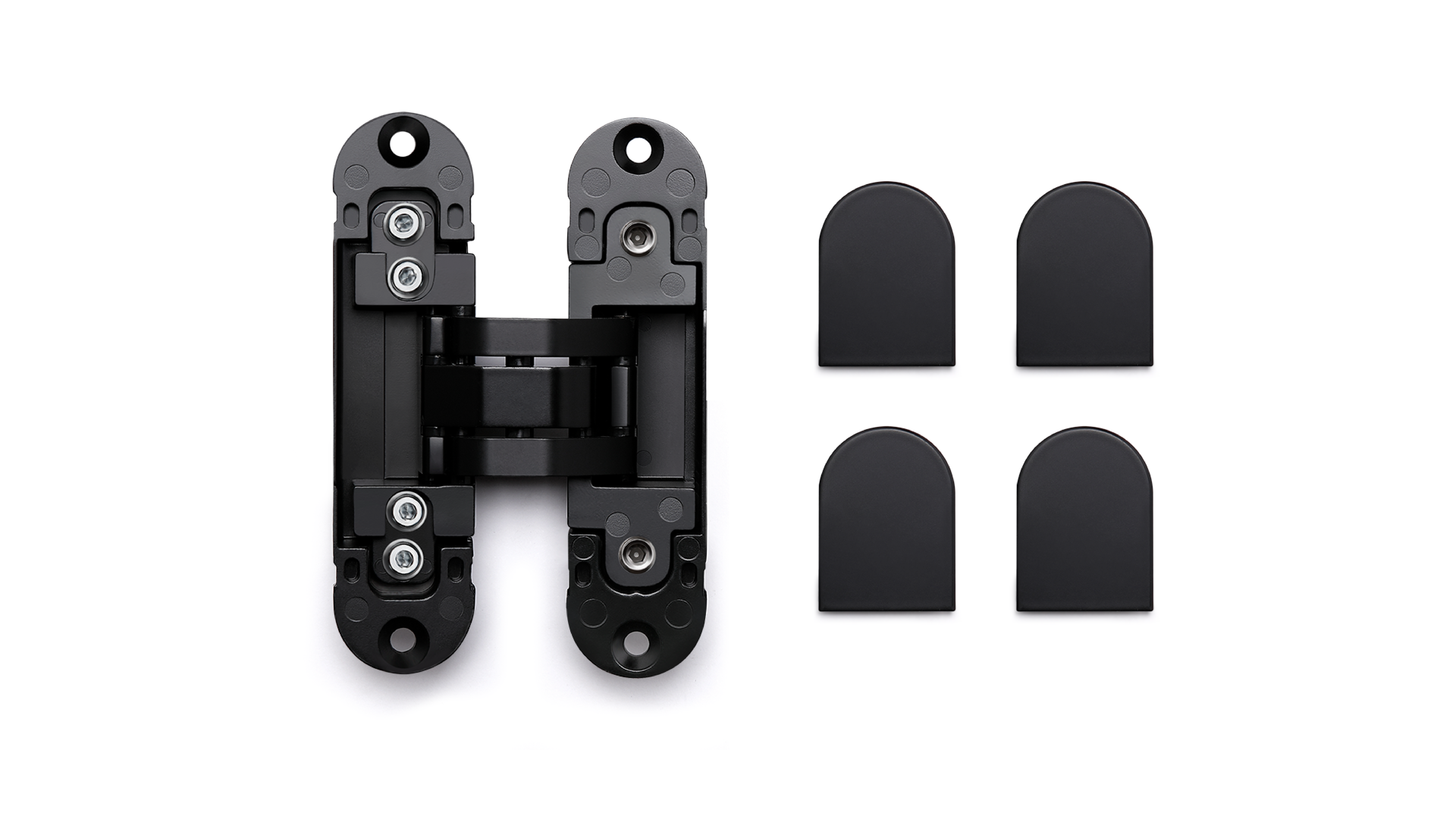

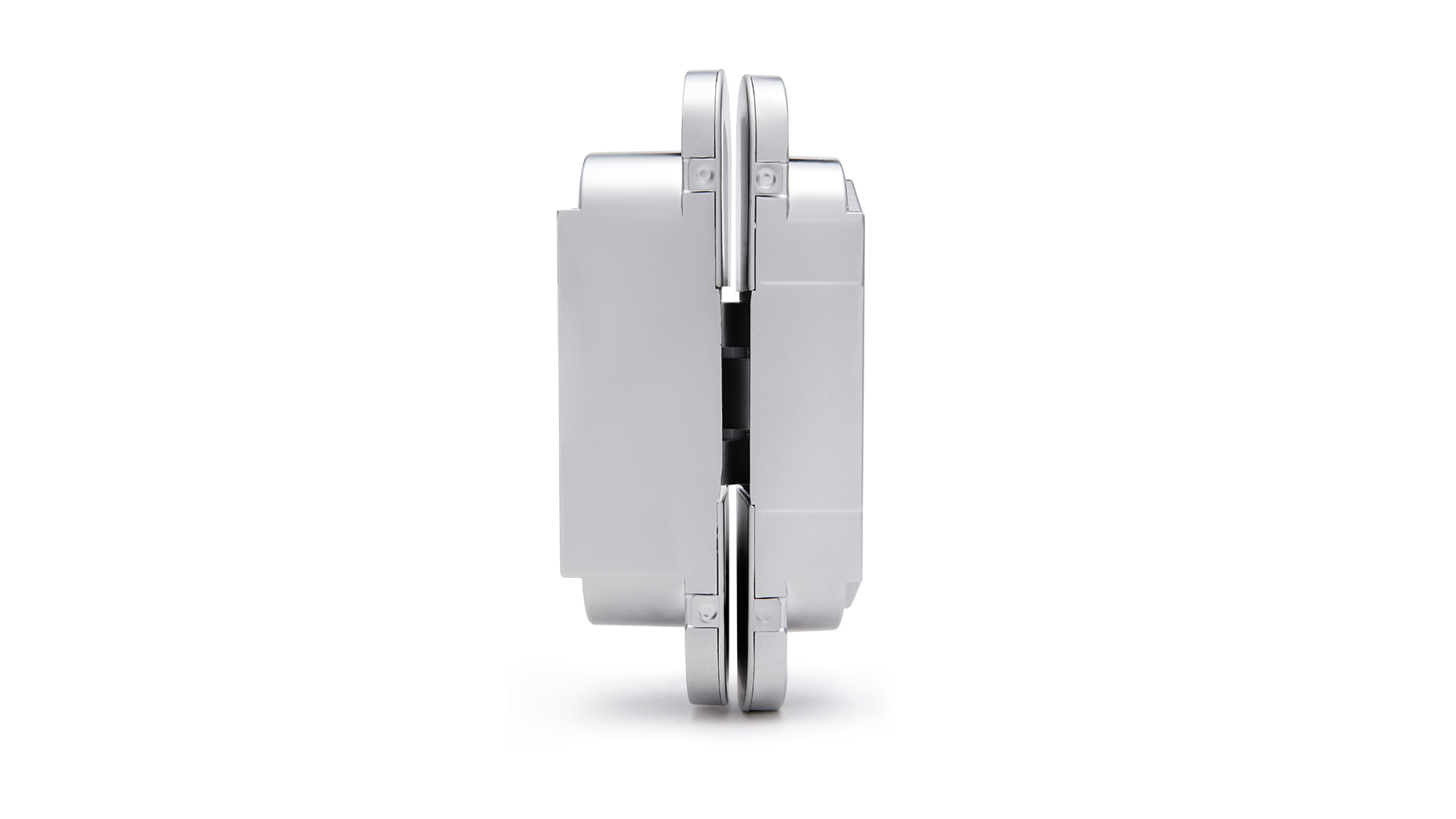

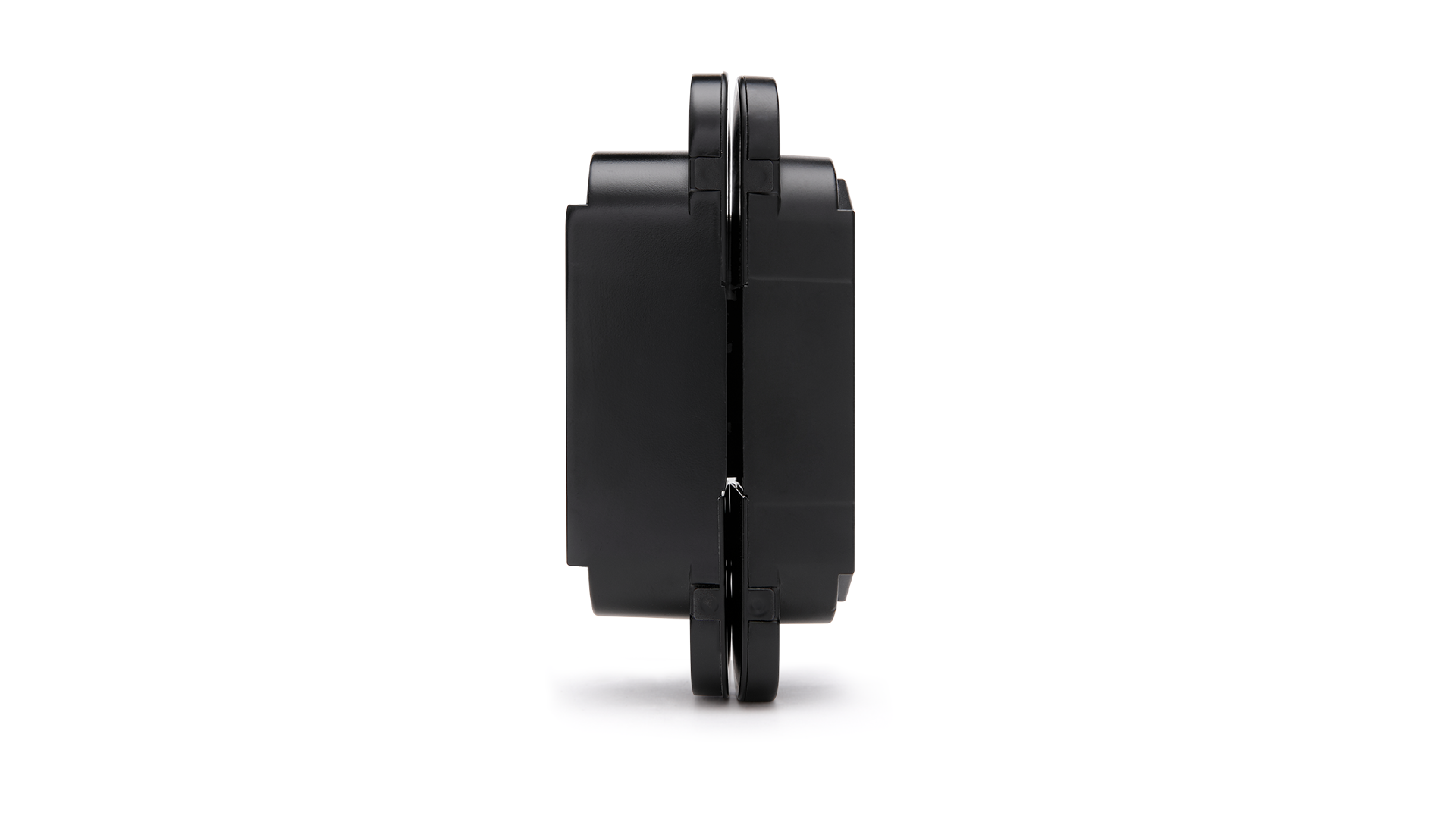

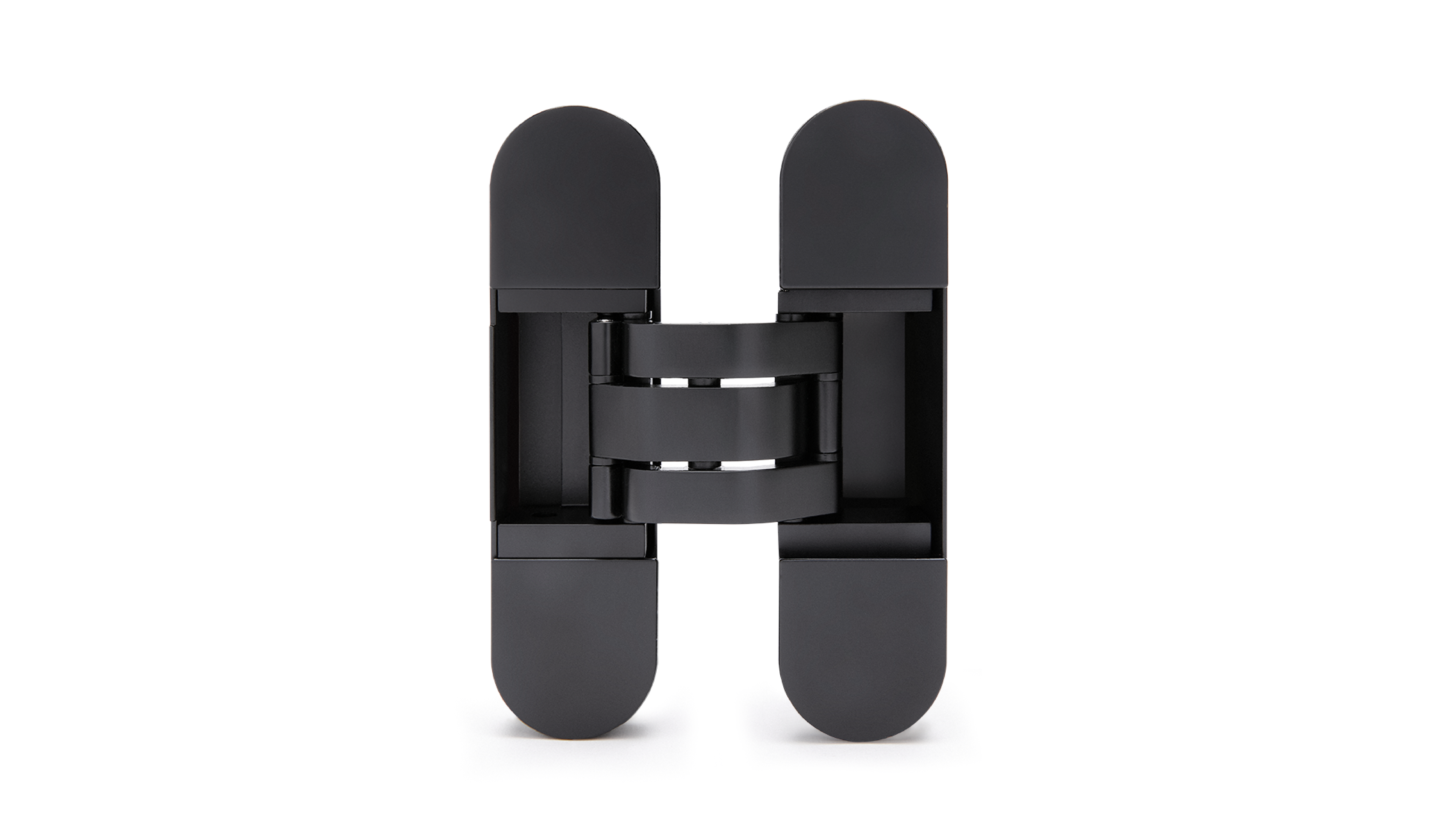

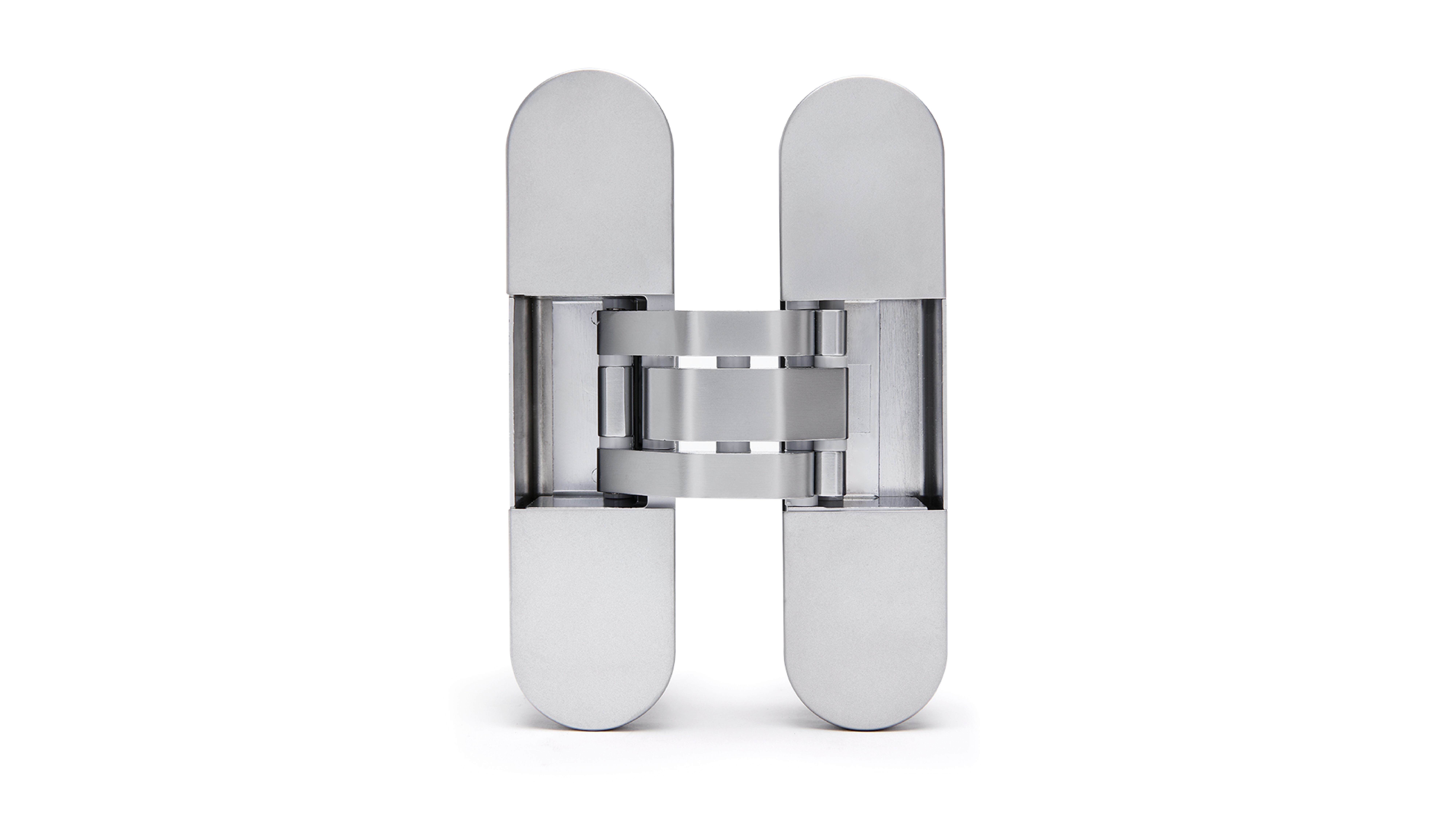

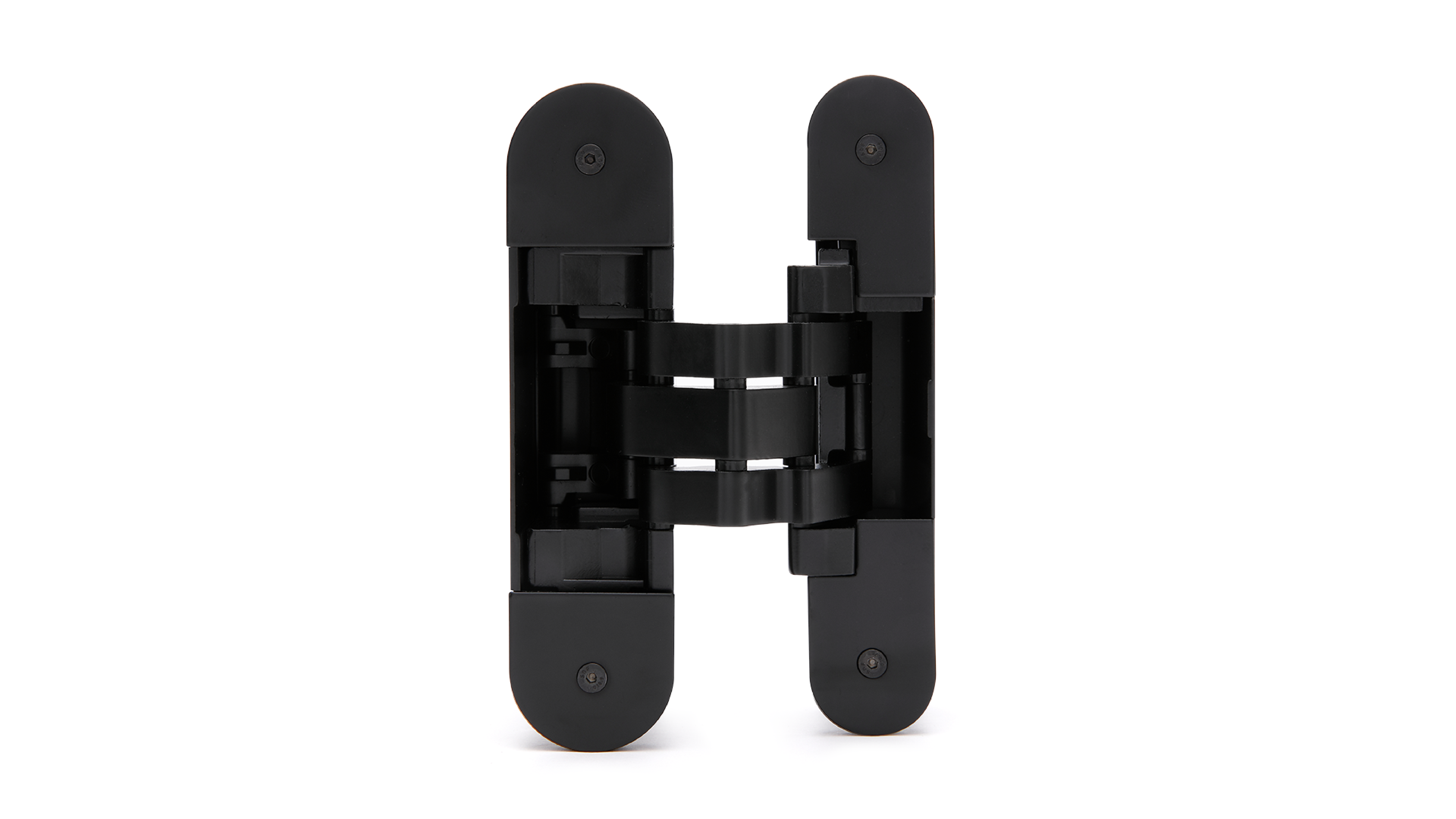

The T120 3D is designed for completely concealed installations on flush commercial doors and residential doors. It requires a minimum door panel thickness of 36 mm (1.417 inches) and offers a load capacity of up to 80 kg (176 lbs) with 2 installed.
80 kg (176 lbs) with 2 installed

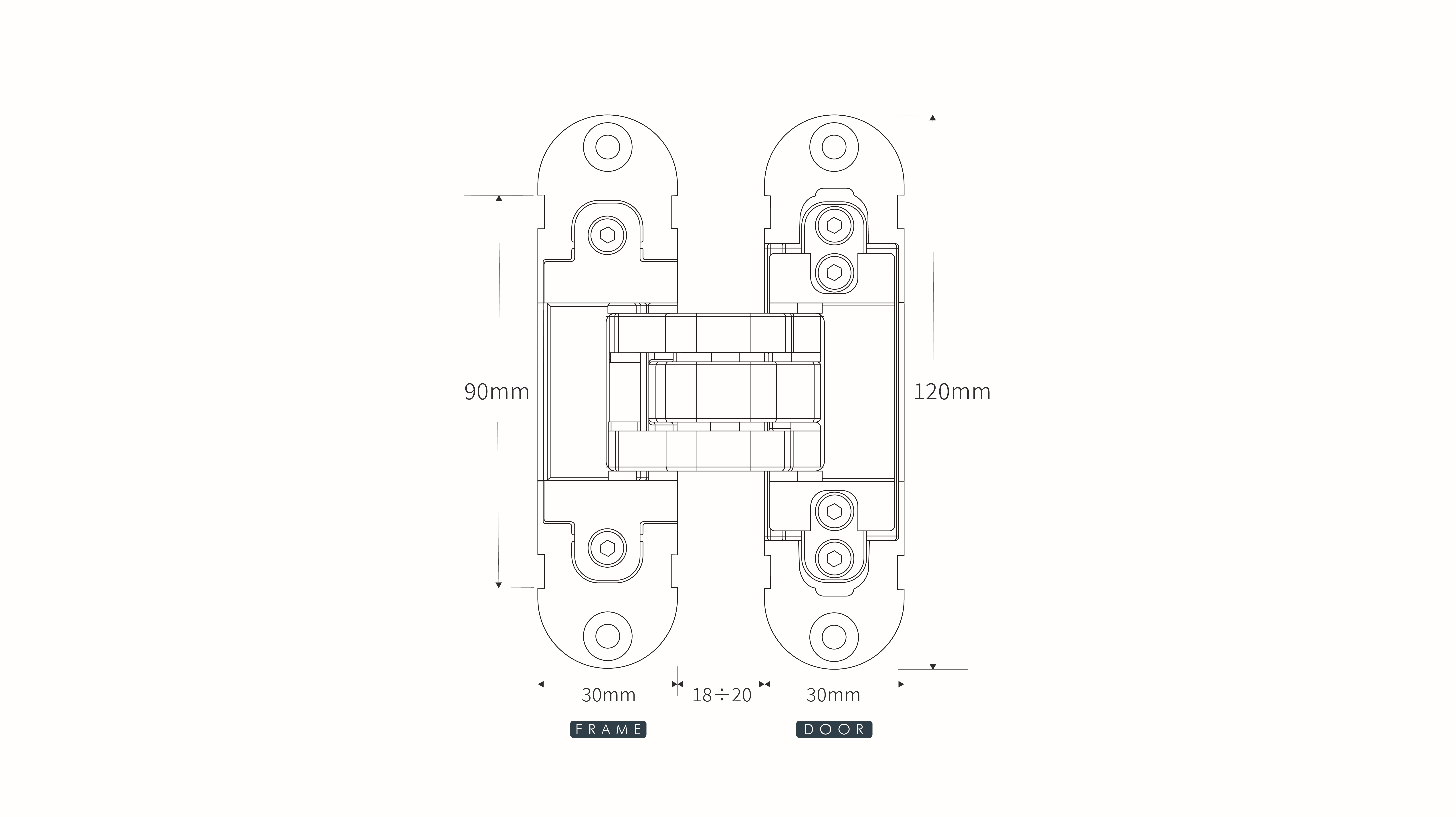

120 mm (4.724 inches)

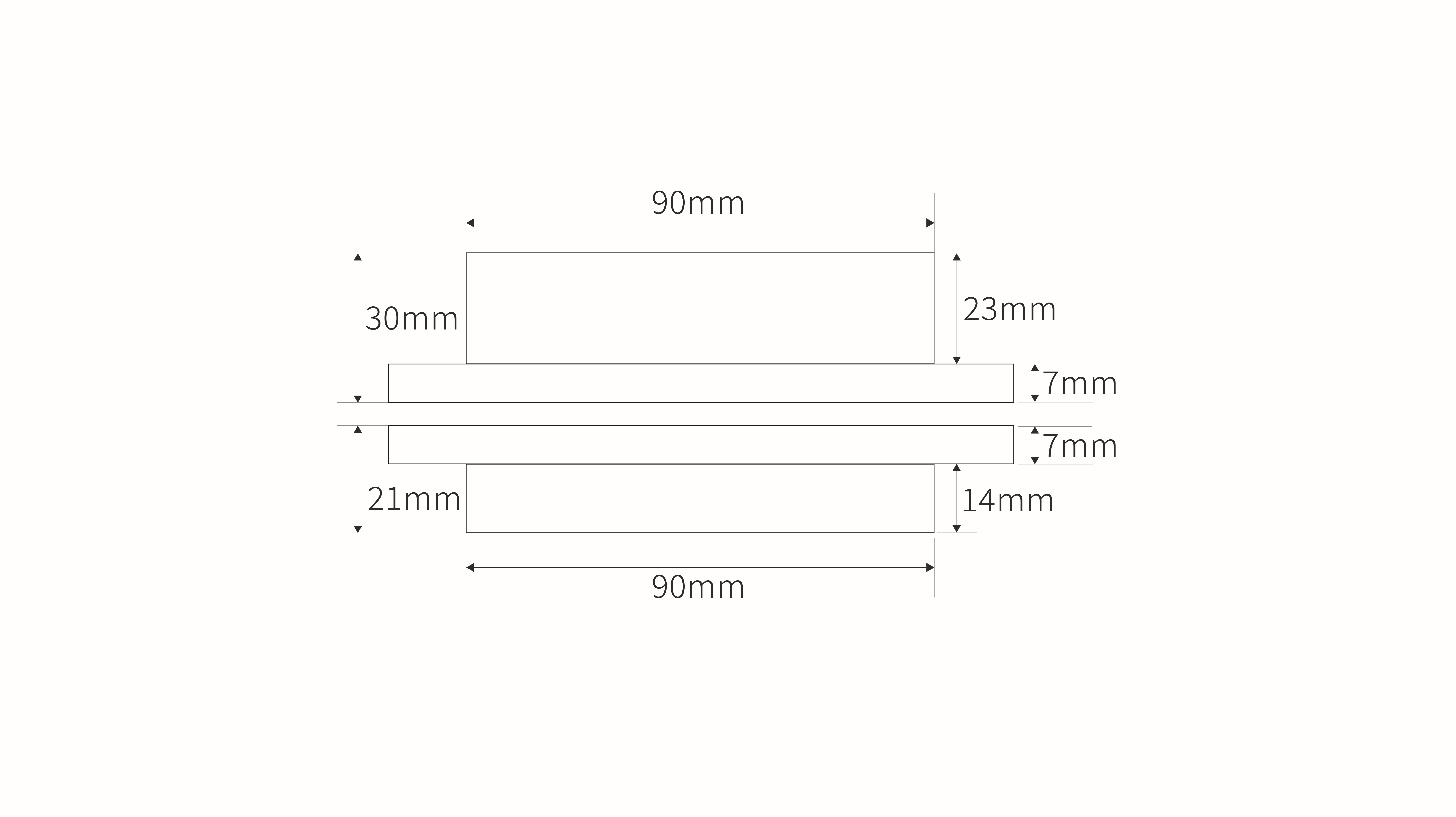

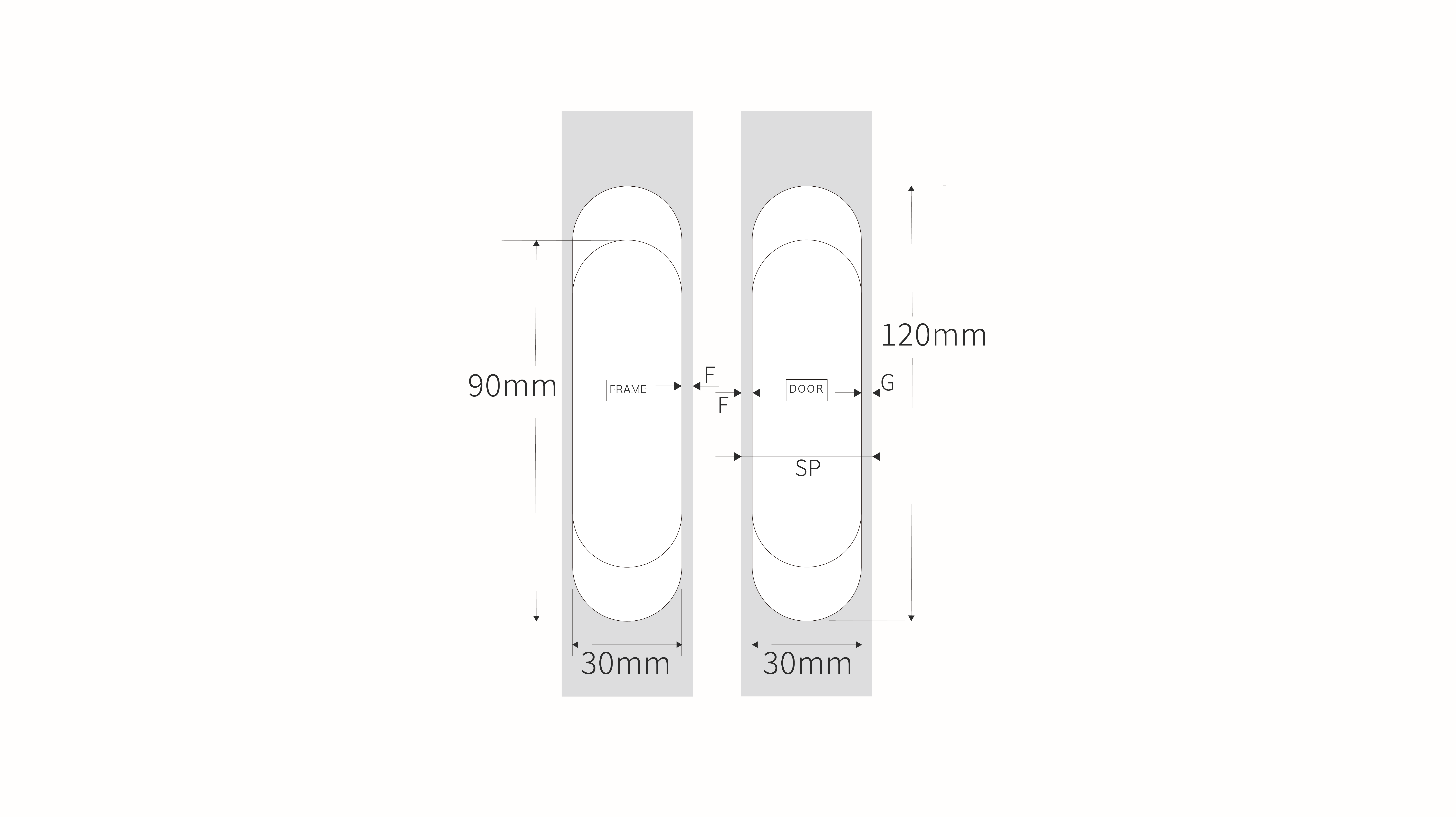

Frame: 30 mm (1.181 inches) / Leaf: 30 mm (1.181 inches)

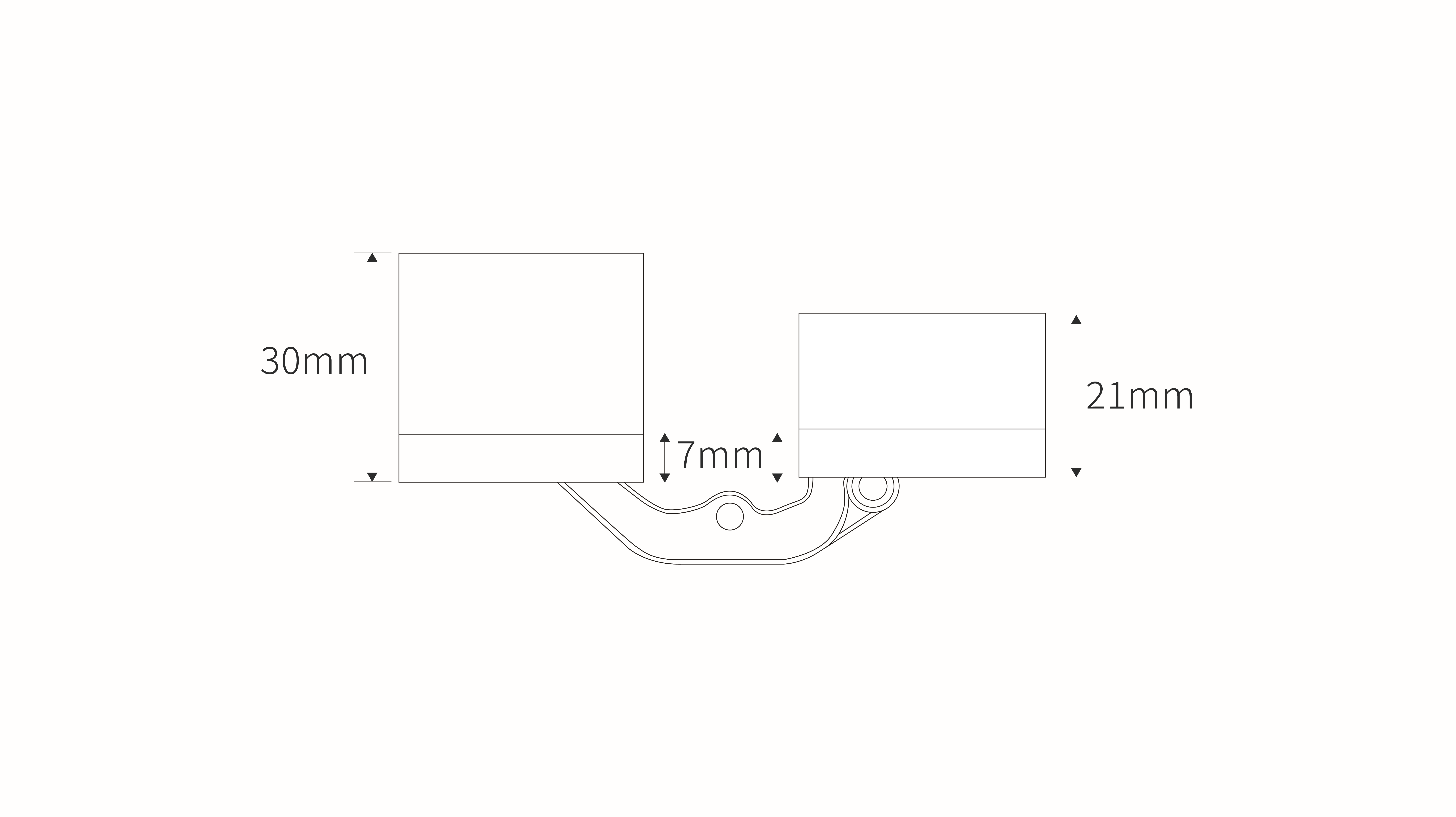

Frame: 21 mm (0.826 inches) / Leaf: 30 mm (1.181 inches)
36 mm (1.417 inches)
30 mm (1.181 inches)
180°
For wood, casing, steel and aluminum frames

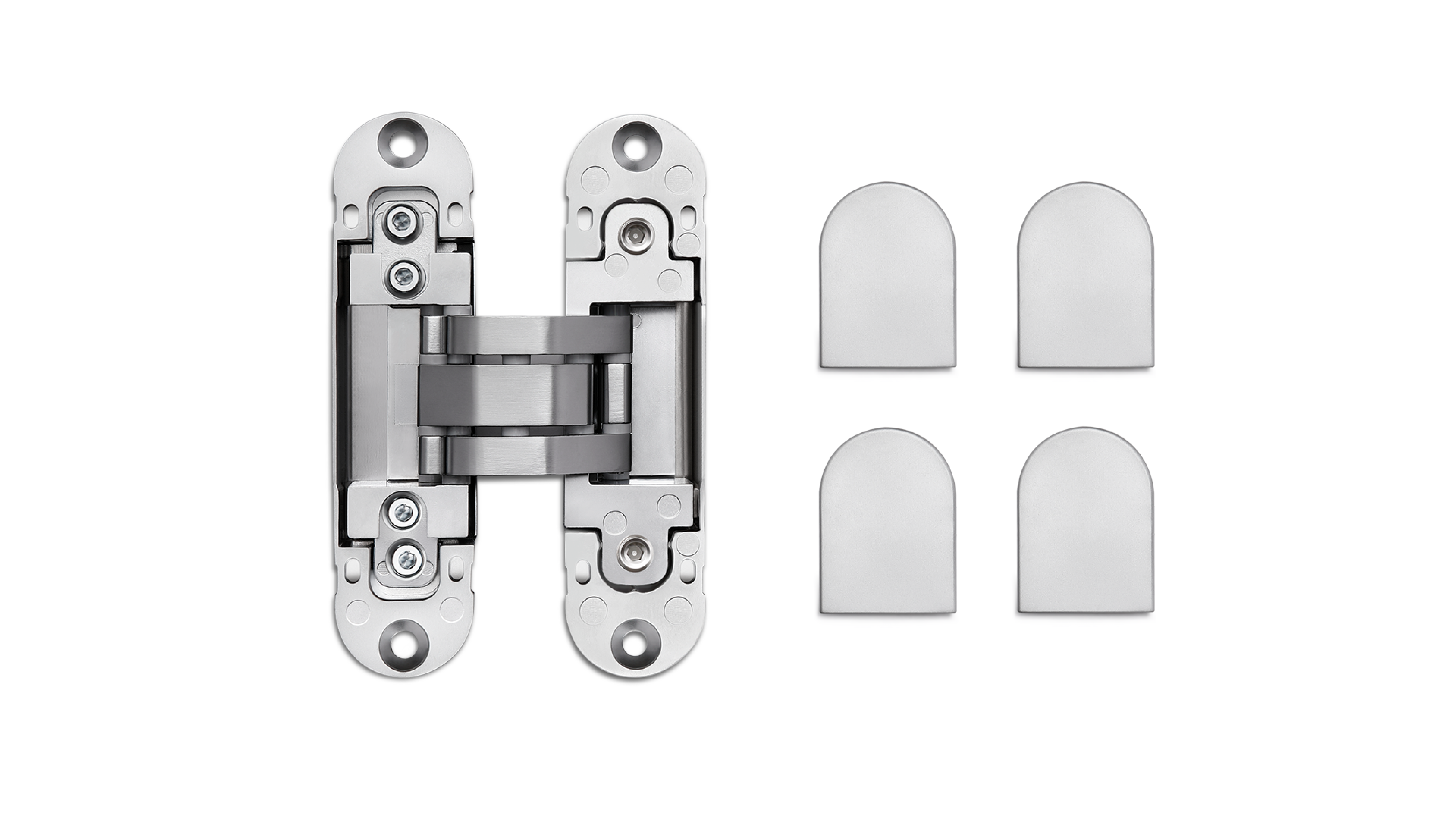

Made in zinc alloy

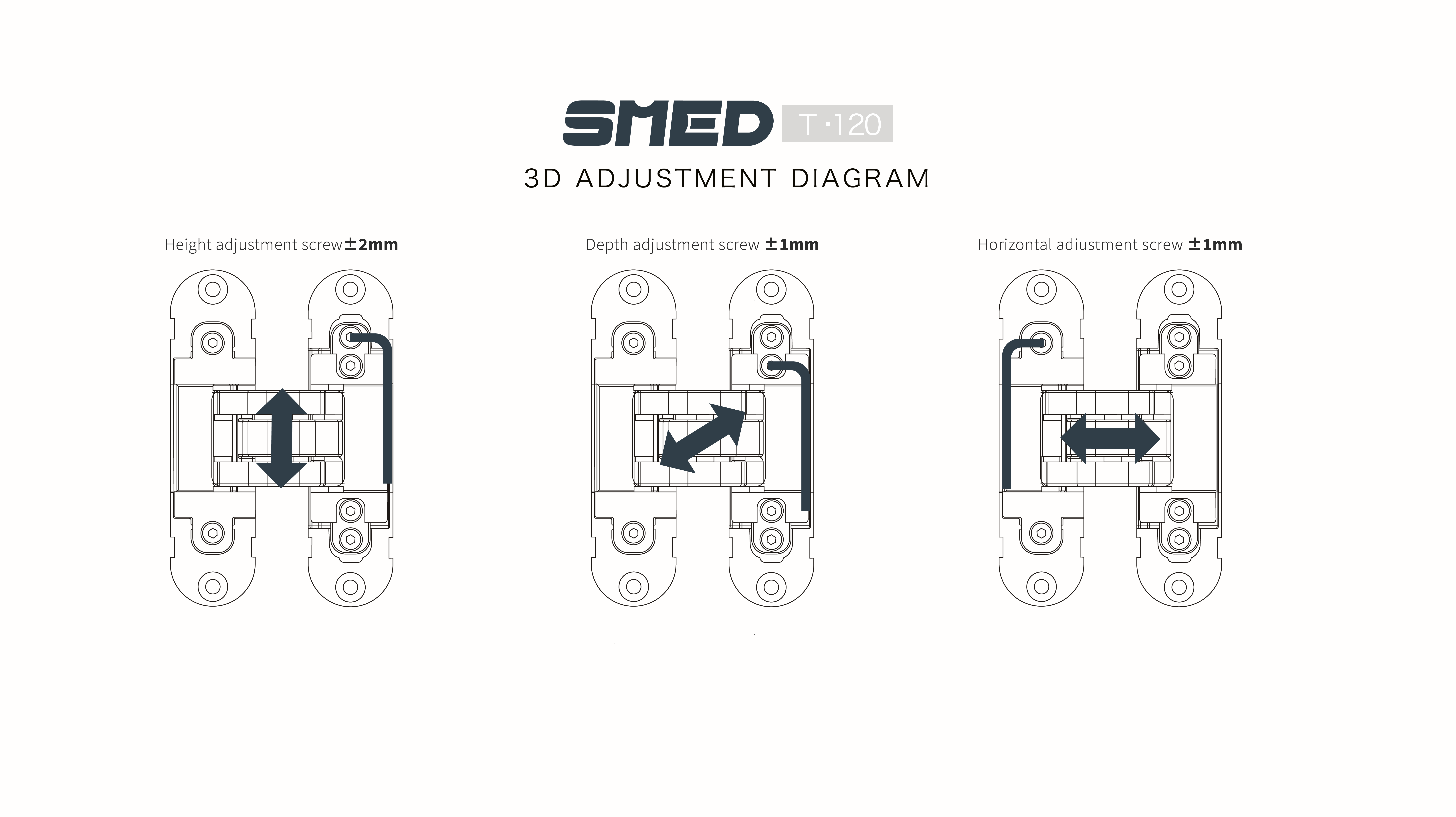

Allows for easily continuous adjustment in 3 dimensions
Height: + /– 2 mm
Depth : + /– 1 mm
Side: + /– 1 mm
