TD006-B

The TD006-B is a versatile pivot hinge designed for a sleek, concealed installation, supporting doors up to 350 kg (771 lbs) with 360-degree rotation and multiple hold positions, making it ideal for pivoting walls. Crafted from high-quality and corrosion-resistant materials, our durable and customizable hinges enhance safety and convenience, making them the perfect solution for both residential and commercial projects.

Product Detail

Specifications

Weight Capacity:

350 kg (771 lbs)

Dimensions:

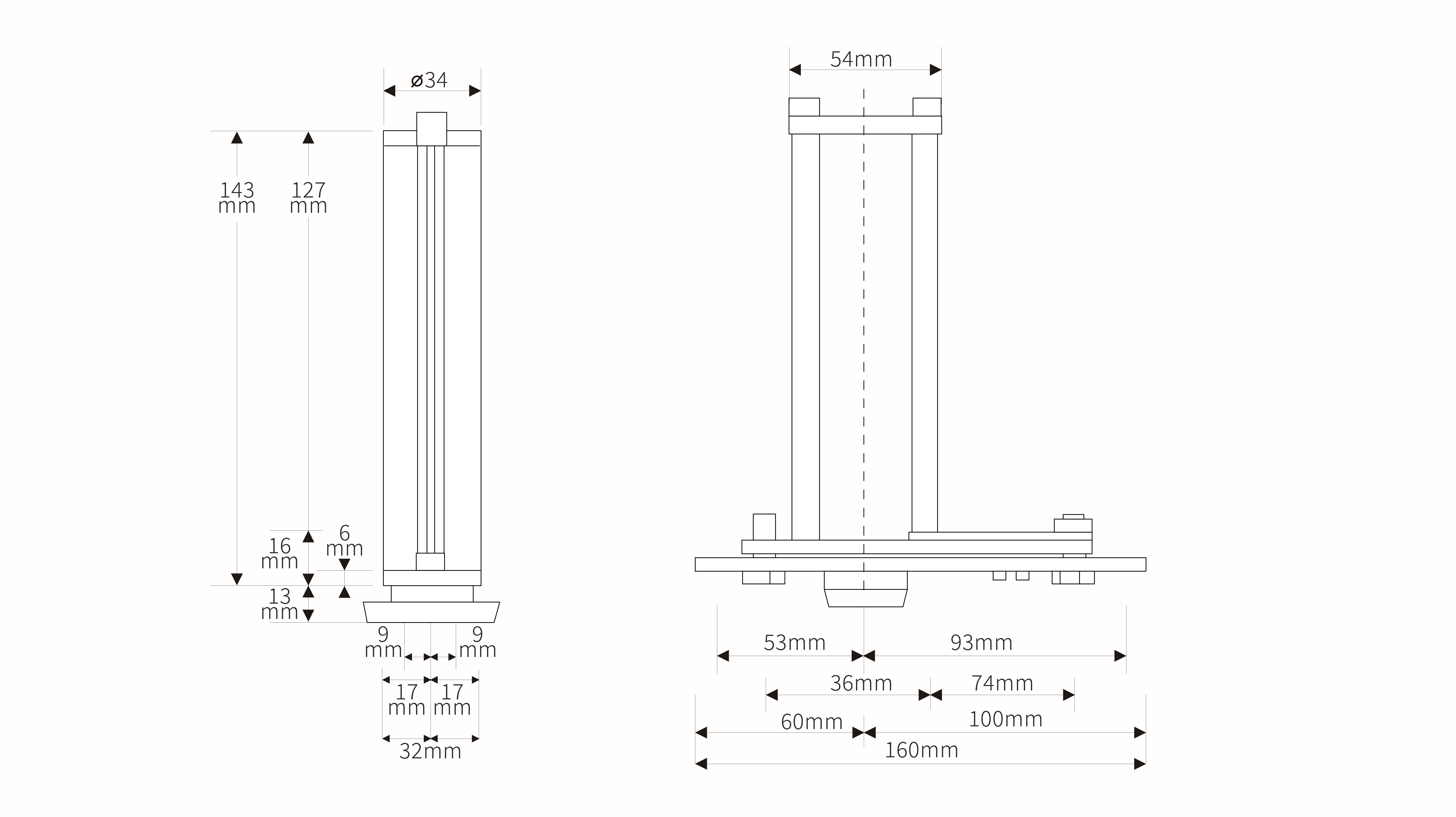

160 x 143 x 34 mm (6.3 x 5.6 x 1.3 inches)

Min. Door Thickness:

40 mm (1.574 inches)

Pivot Point:

Middle

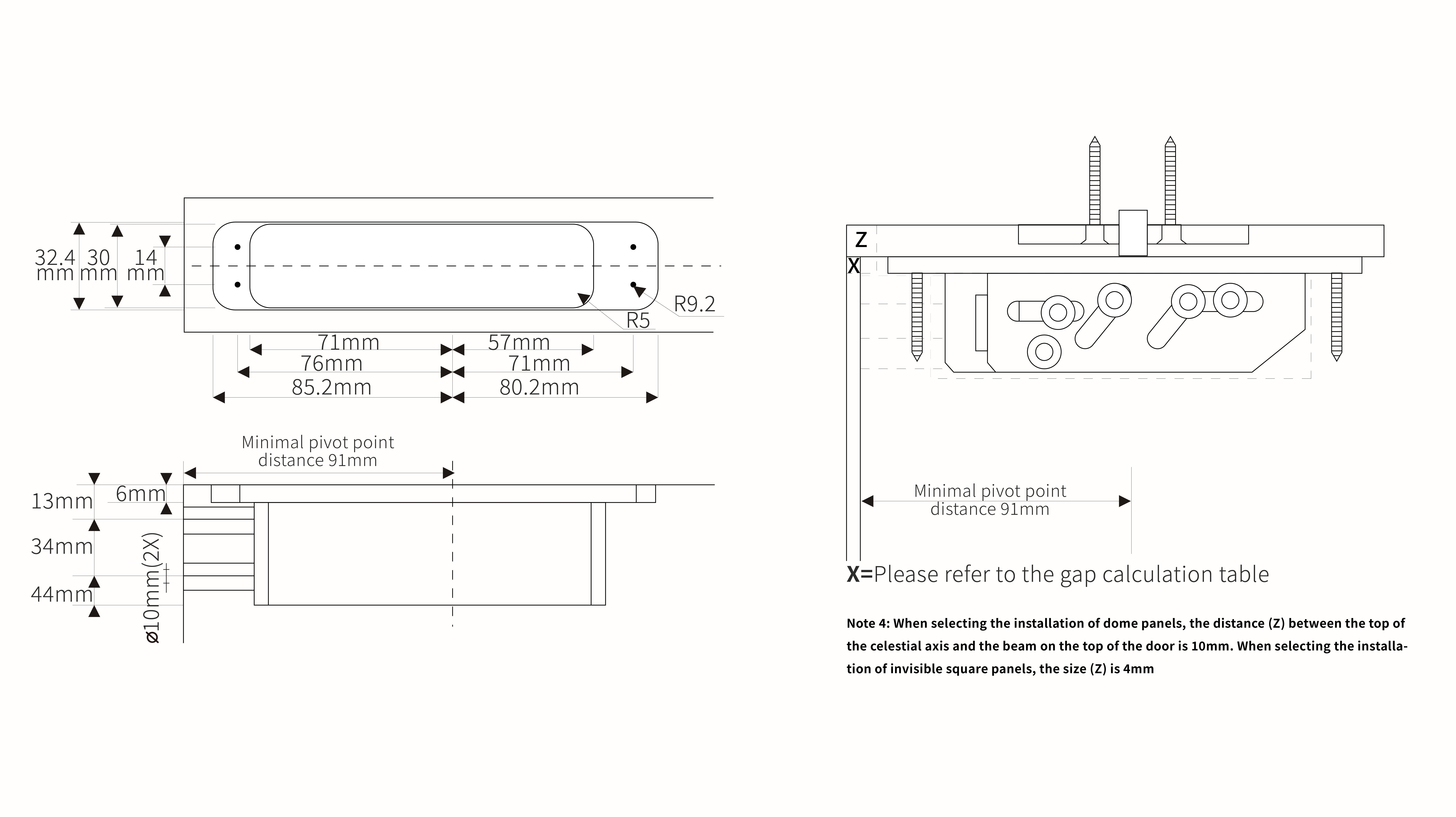

Top Gap:

10 mm (0.393 inches)

Bottom Gap:

13 mm (0.511 inches)

Opening Angle:

360°

Features

For wood, aluminum frames and framed glass, massive cladded doors

Made in stainless steel, aluminum alloy

Working cycles: up to 1,000,000

Double Acting (360° rotation):✓

Hold positions (0º, 90º, 180º and 270º): ✓

Movement Adjustability: None

Axial/Plumb Adjustment + /– 5mm

Door Movement: The door moves to a hold position at each 45º angle in both directions
