The TD006-A is a broadly applicable pivot hinge and is designed for a sleek, concealed installation, supporting doors up to 500 kg (1102 lbs) with 360-degree rotation for flexibility. Crafted from high-quality materials, our durable and customizable hinges enhance safety and convenience, making them the perfect solution for your residential and commercial projects.
500 kg (1102 lbs)

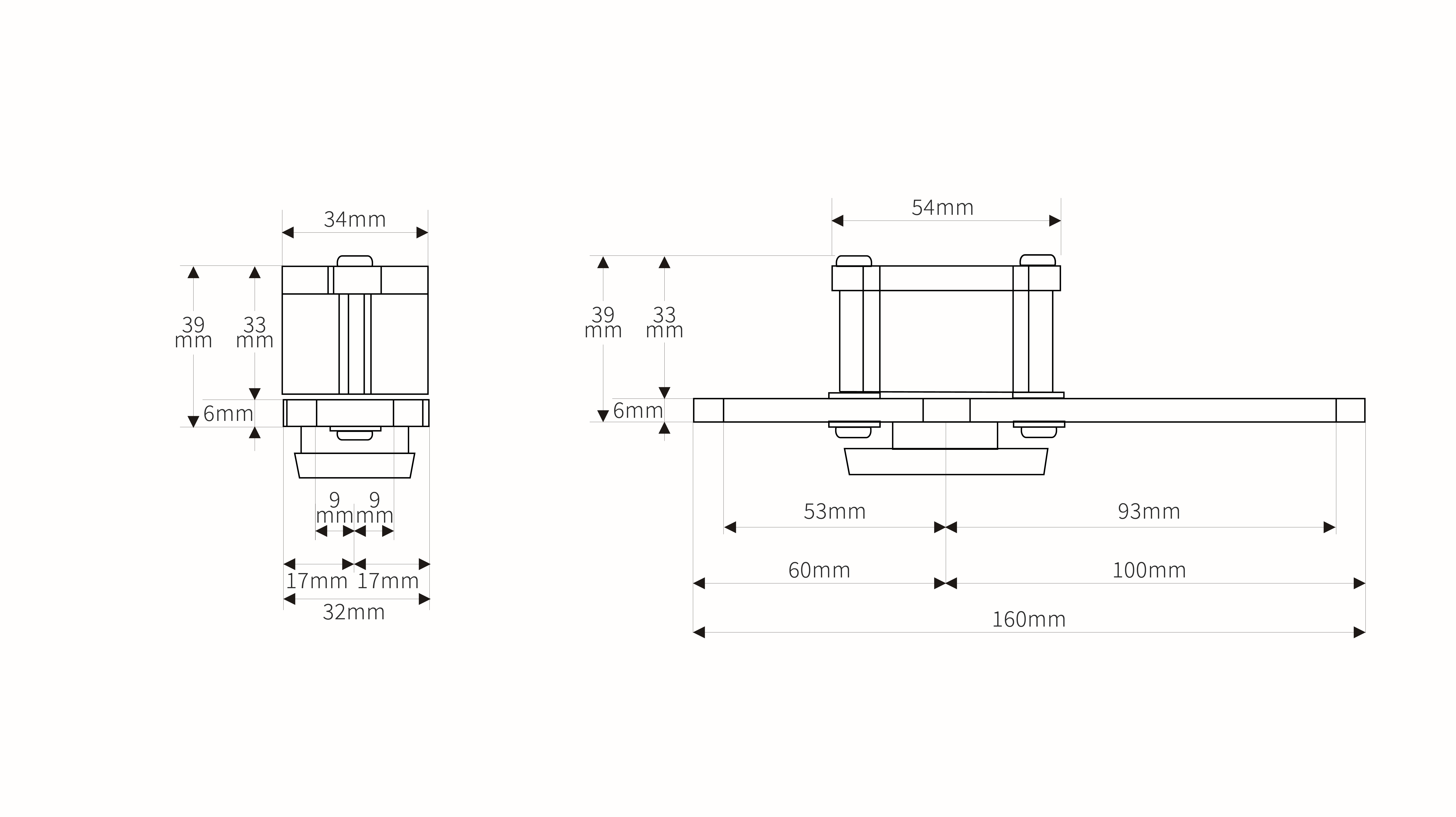

160 x 39 x 32 mm (6.3 x 1.5 x 1.2 inches)
40 mm (1.574 inches)
Side and middle

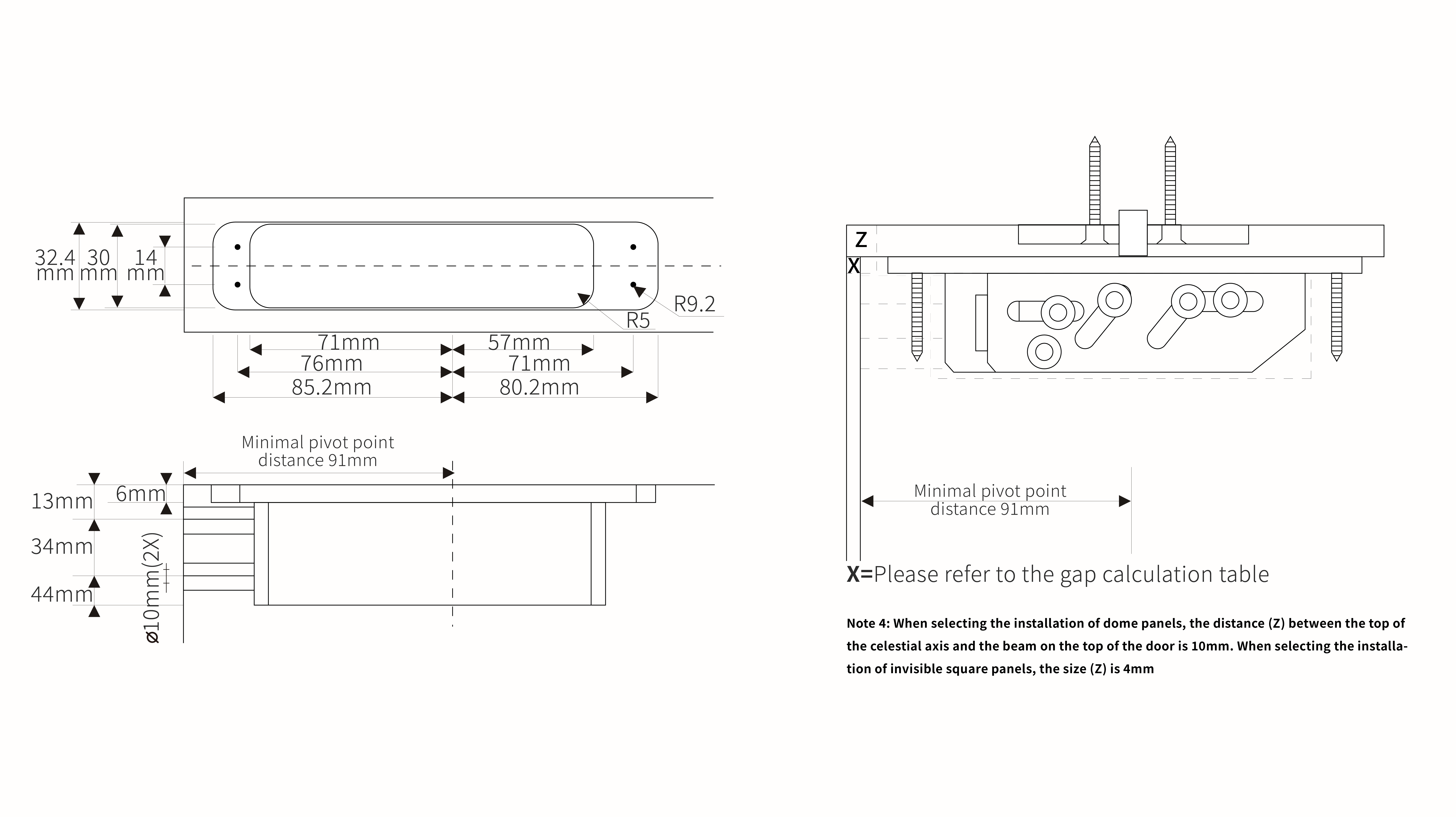

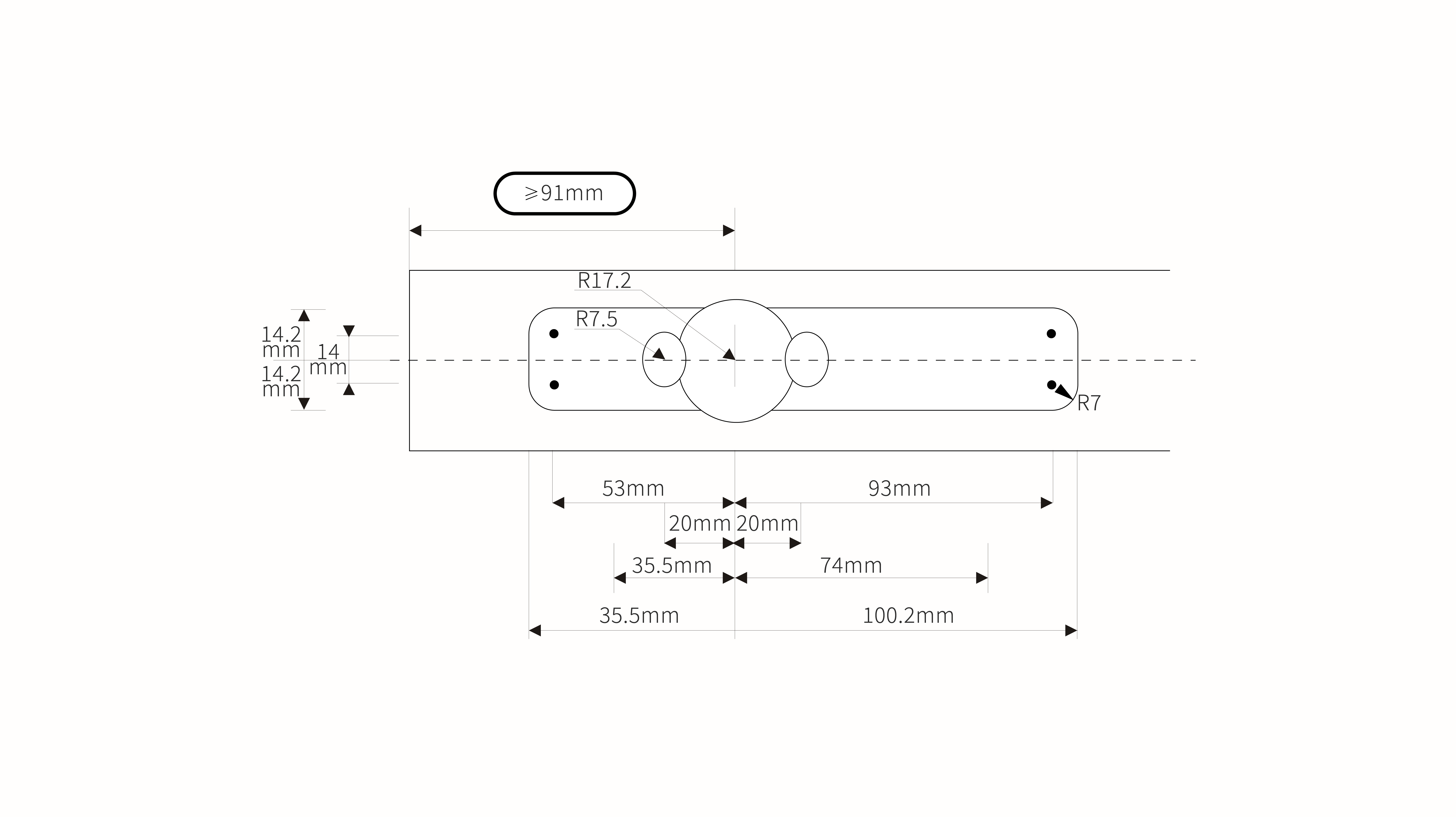

91 mm (3.582 inches)
360°
For wood, aluminum frames and framed glass, massive cladded doors

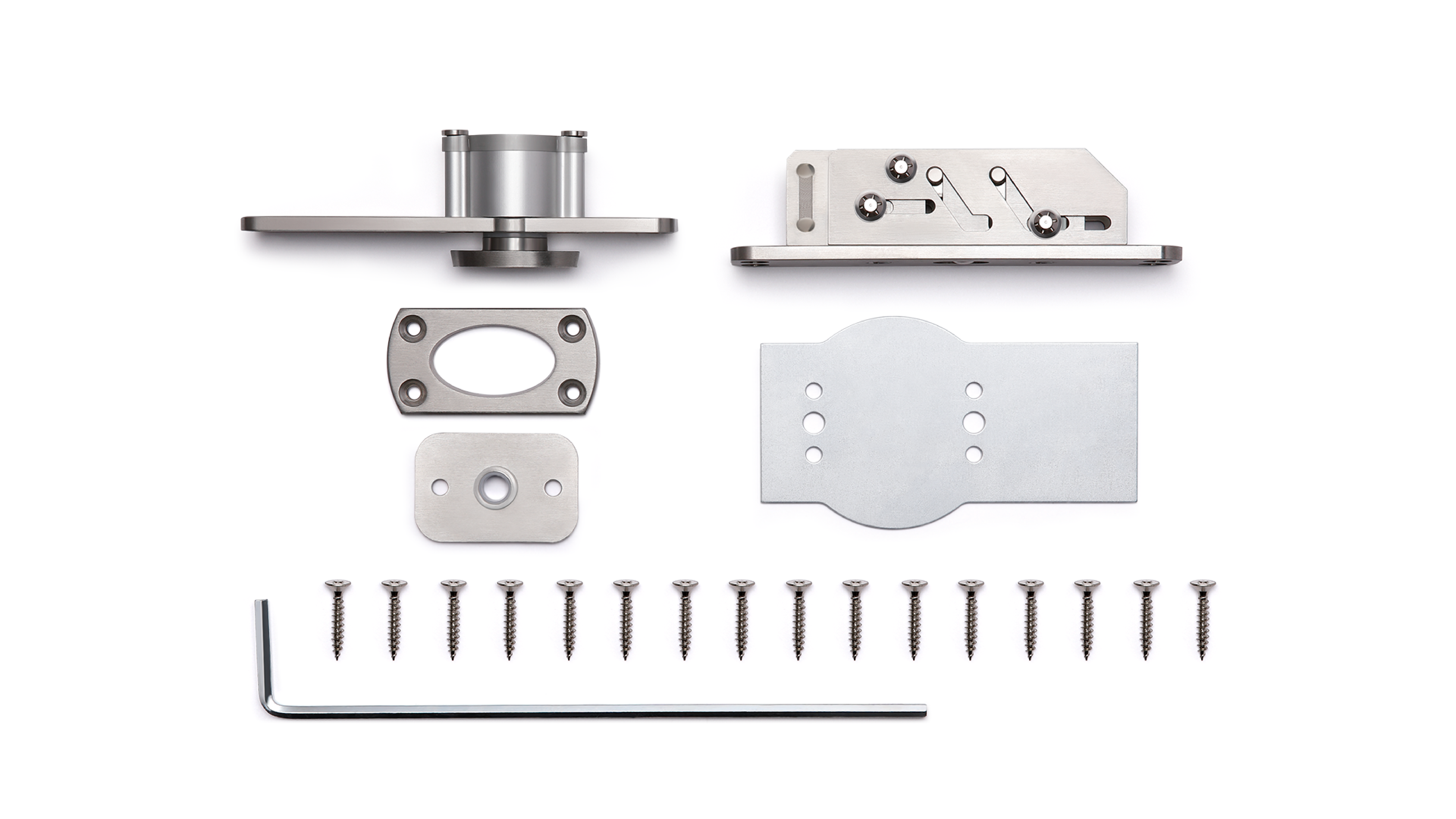

Made in stainless steel, aluminum alloy
Working cycles: up to 1,000,000
Free Swing:✓
Single Acting (90° rotation):✓
Double Acting (360° rotation):✓
Hold positions: None
Axial/Plumb Adjustment + /– 5mm
