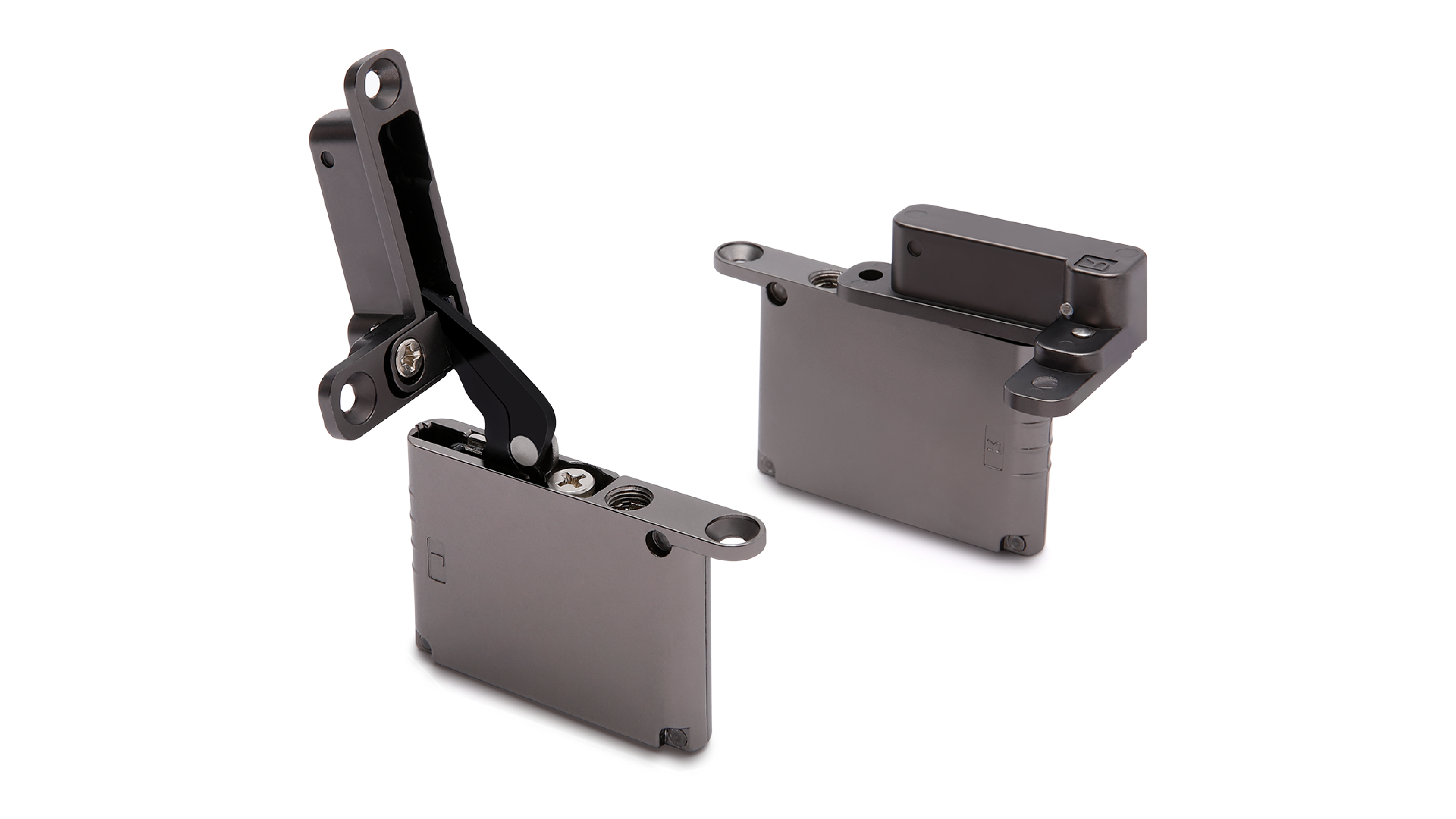

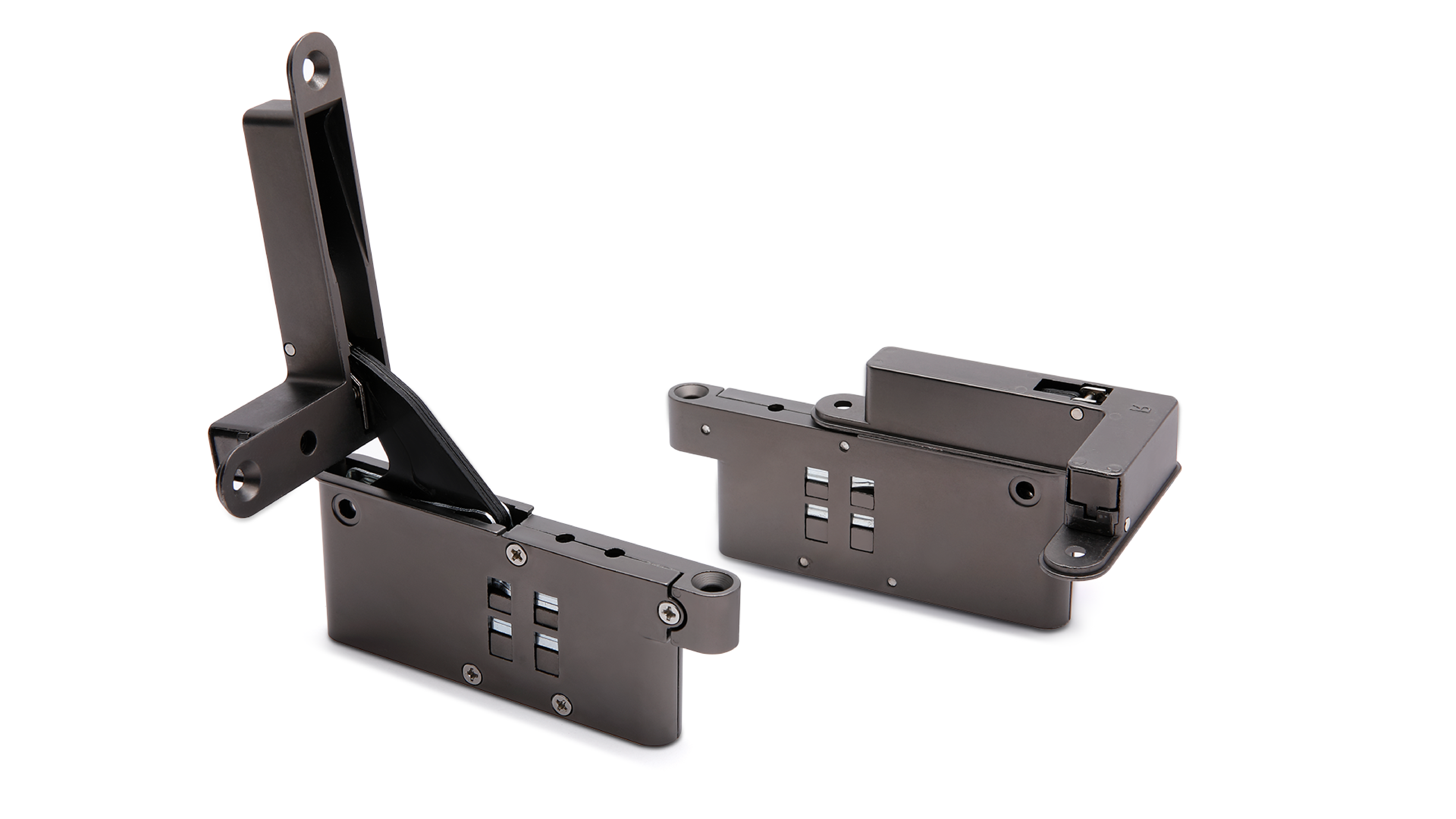

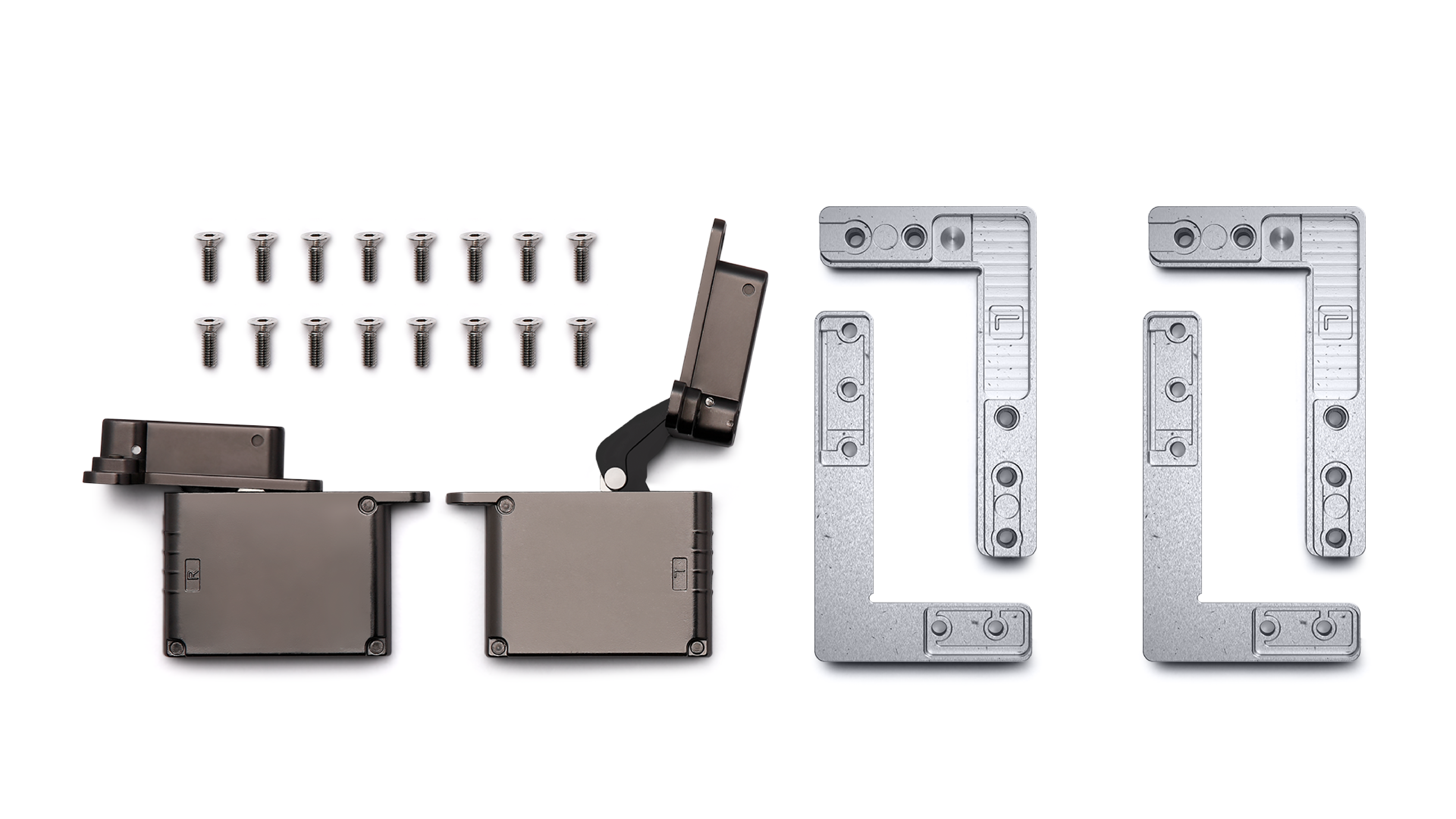

TD001 3D

The TD001 3D is engineered for compact, concealed installation while providing full functionality for furniture manufacturers. Its discreet design allows for easy integration into cabinets and doors, making it virtually invisible—perfect for kitchens, bathrooms, living spaces and bedroom furniture or display cabinets. The hinge also features a convenient self-opening mechanism for handleless furniture.

Product Detail

Specifications

Weight Capacity:

20 kg (44 lbs)

Max. Door Dimensions:

2100 x 600 mm (82.6 x 23.6 inches)

Min. Door Thickness:

18 mm (0.7 inches)

Max. Door Weight:

20 kg (44 lbs)

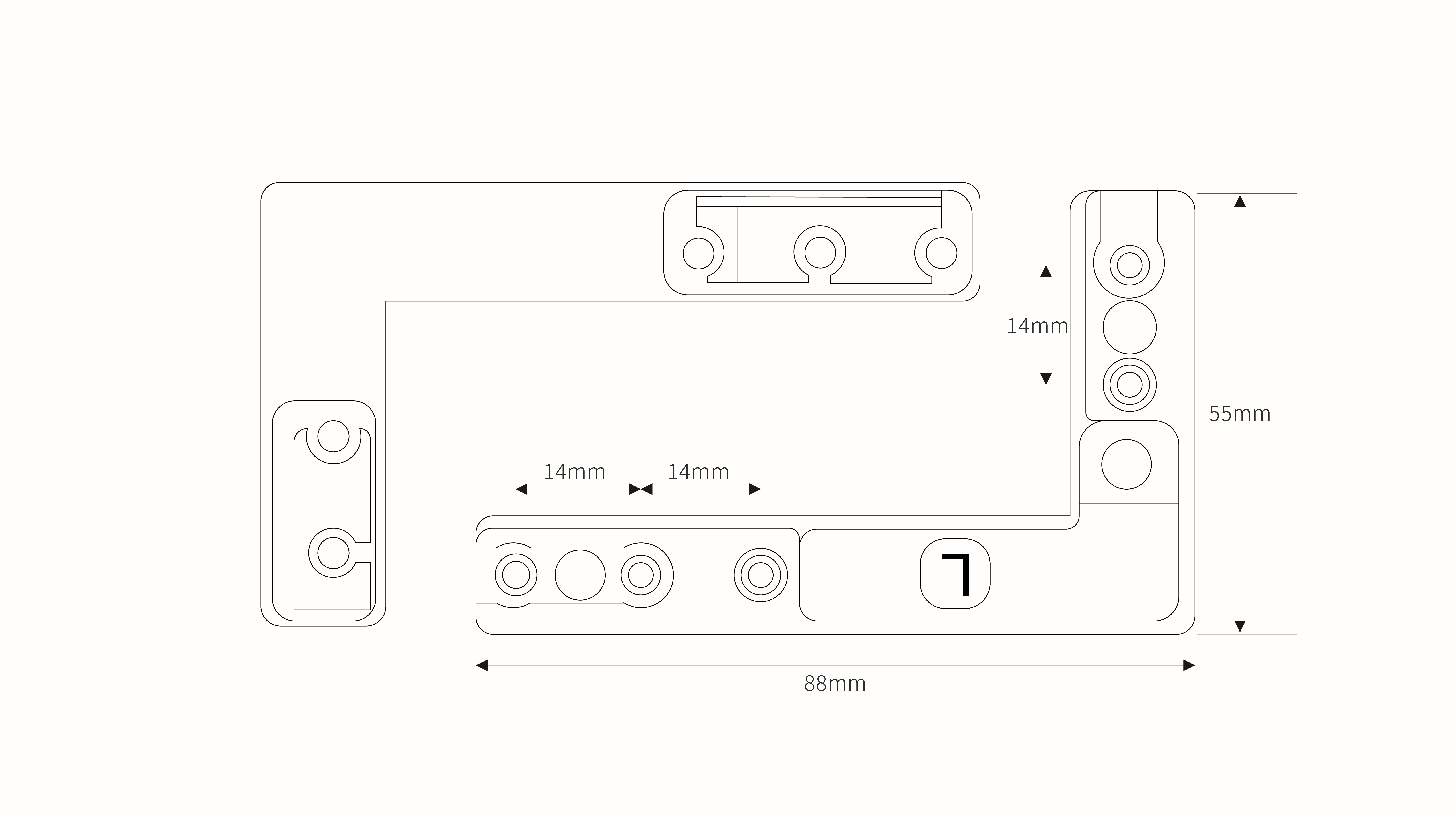

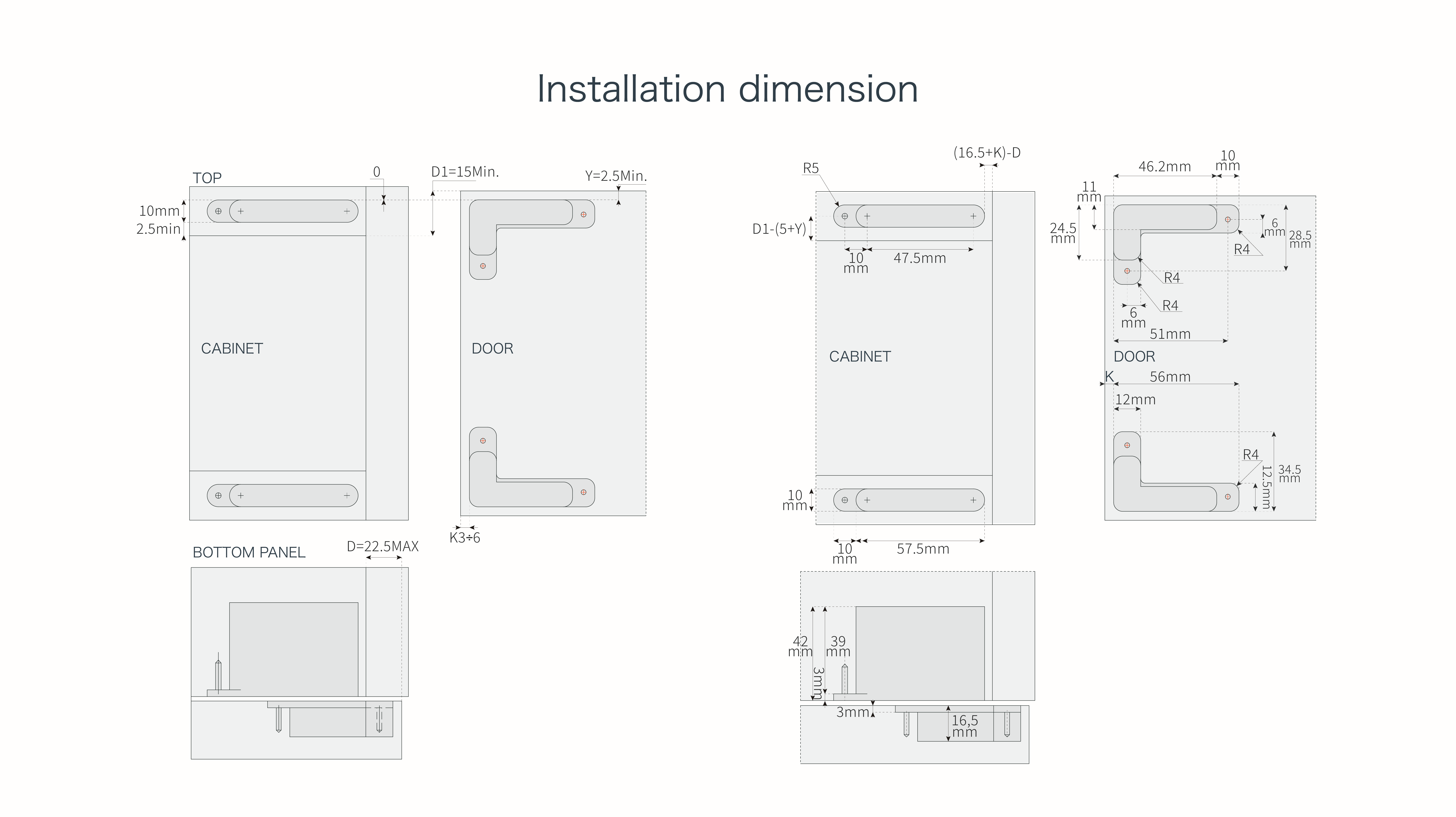

Drilling distance on the wooden door:

3~6 mm (0.1~0.2 inches)

Cup Depth:

15 mm (0.590 inches)

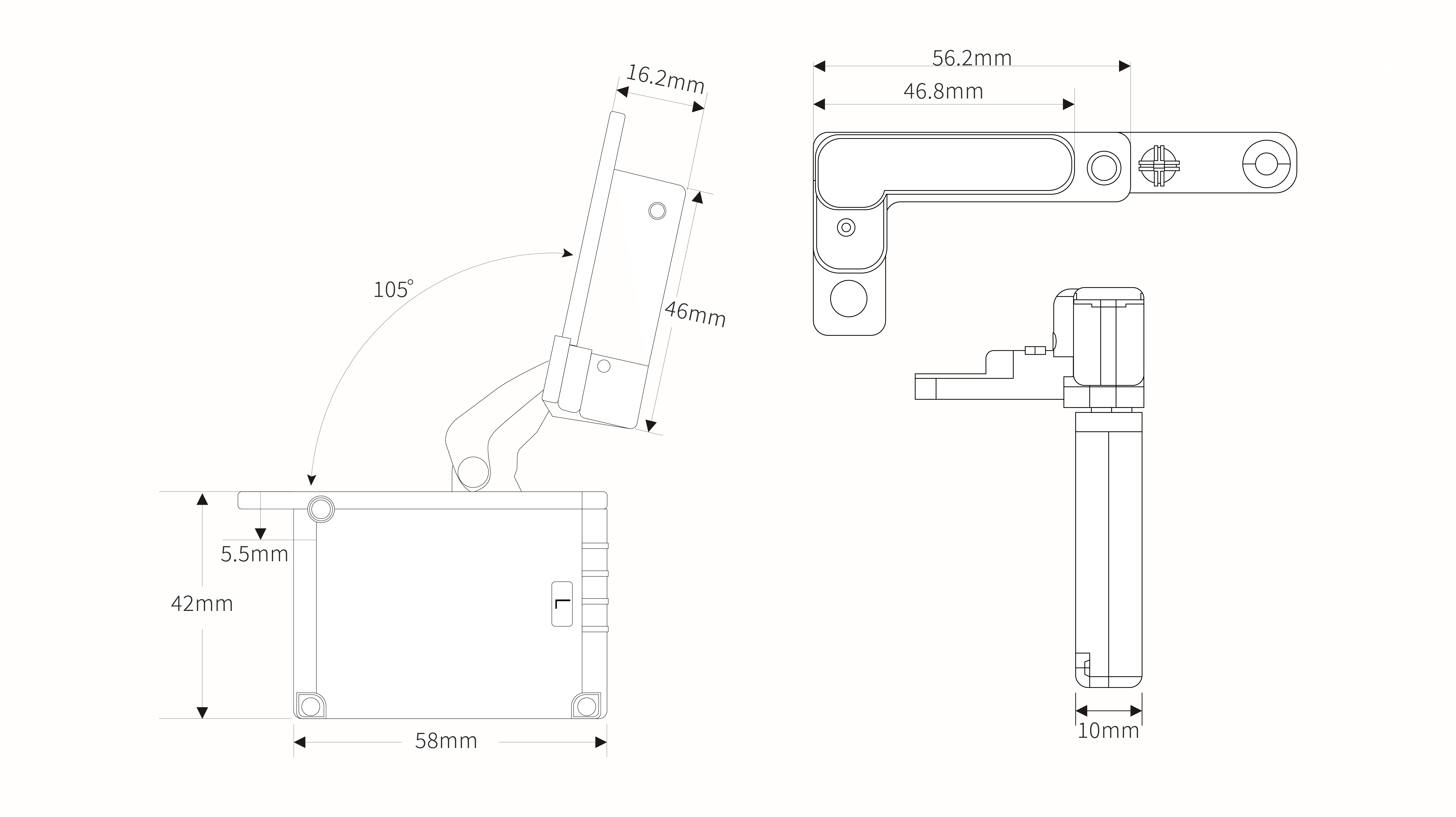

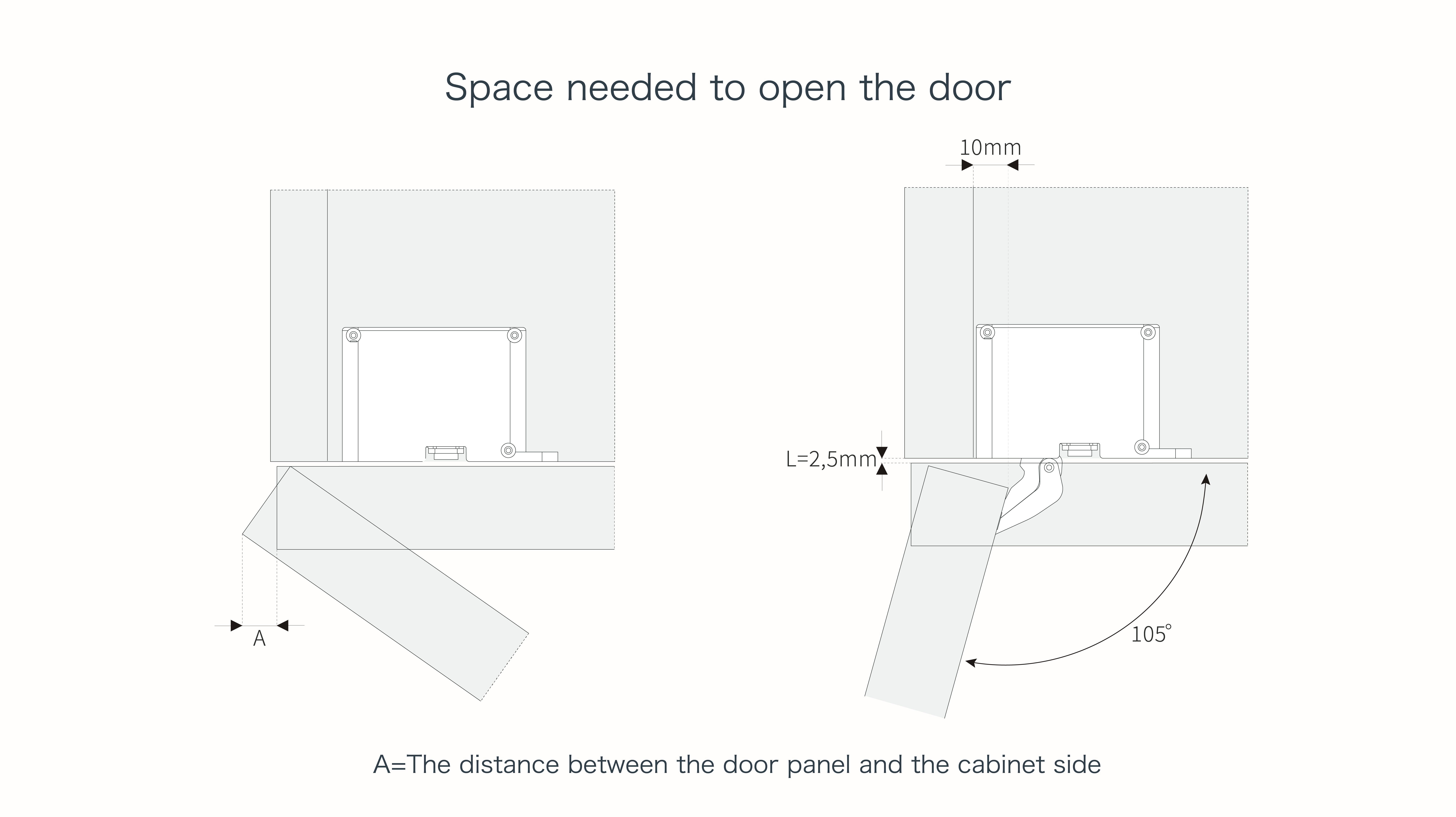

Opening Angle:

105°

Features

For wood, aluminum frames

Made in manganese steel, zinc alloy

Working cycles: up to 100,000

Self-opening:✓

Soft close:✓

Allows for easily continuous adjustment in 3 dimensions

Height: + /– 1.3 mm

Depth : + /– 0.5~2 mm

Side: + /– 1.75 mm
