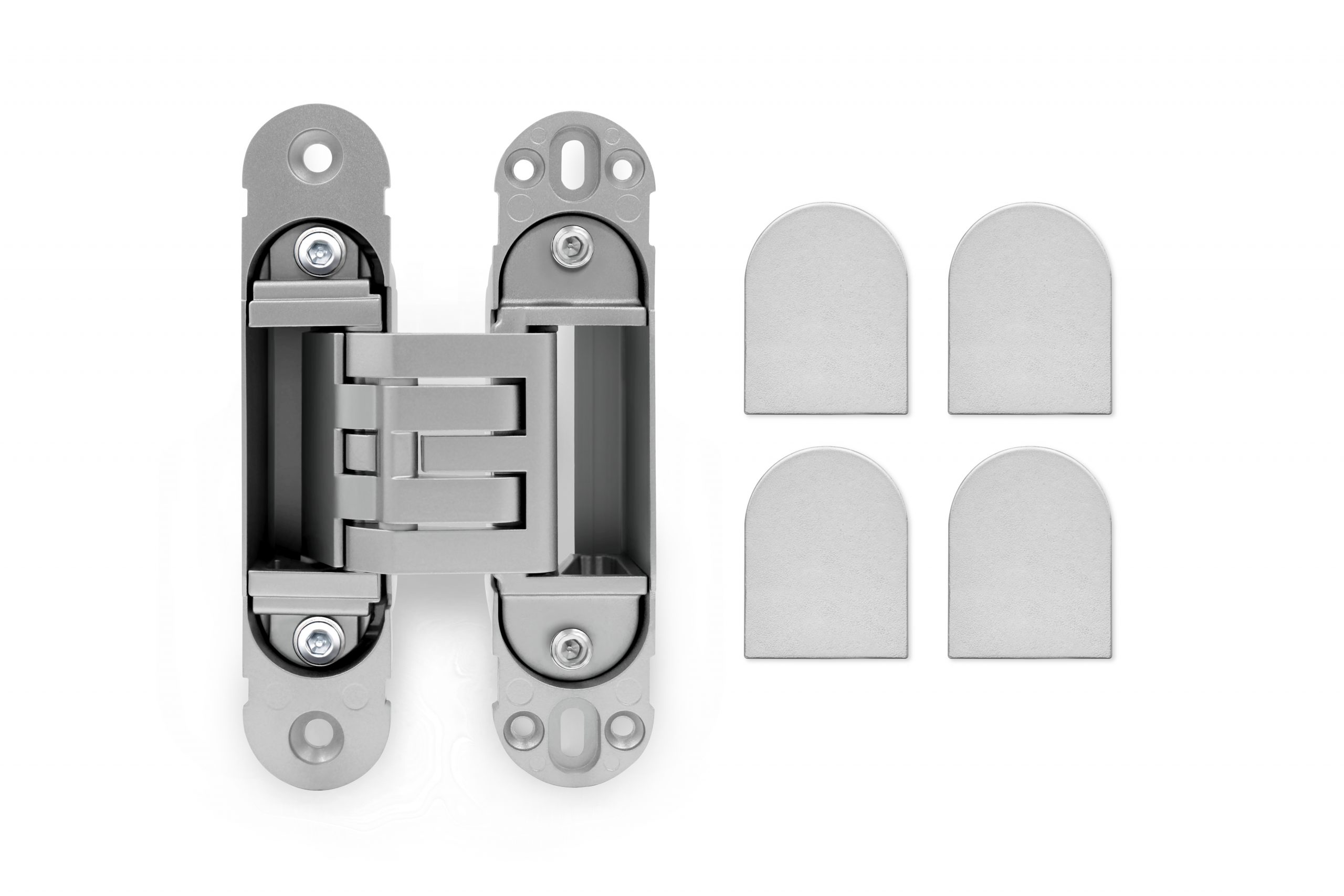

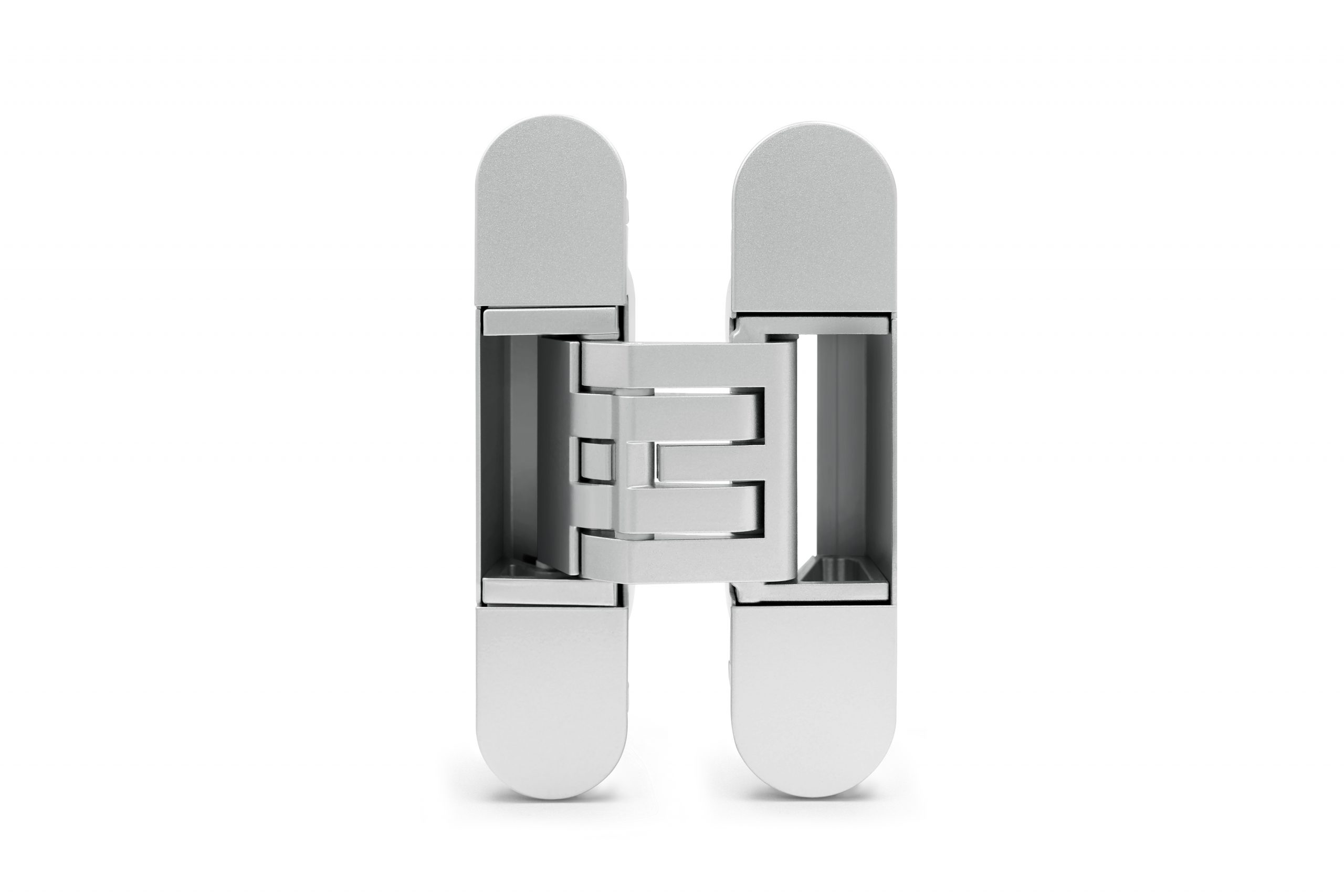

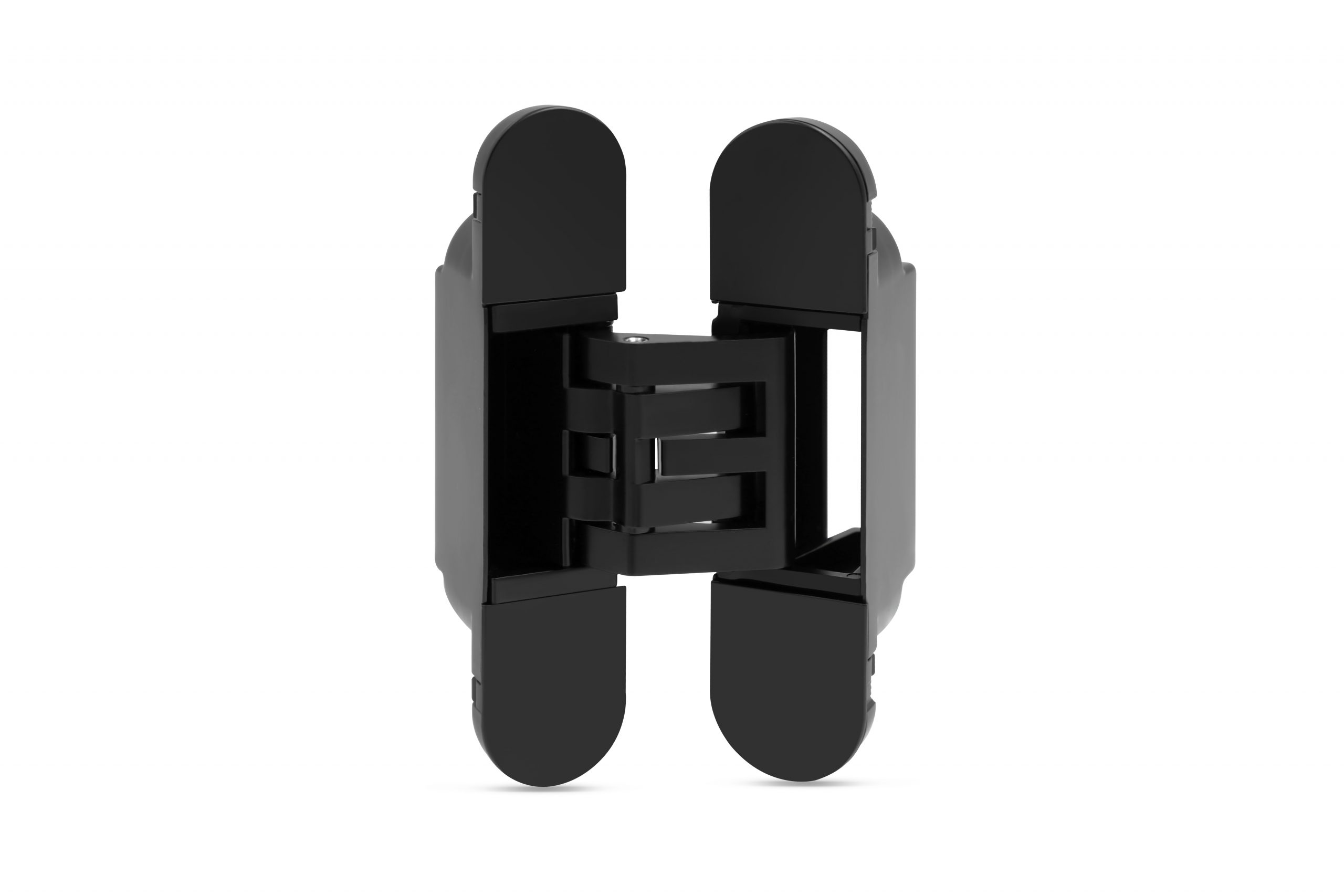

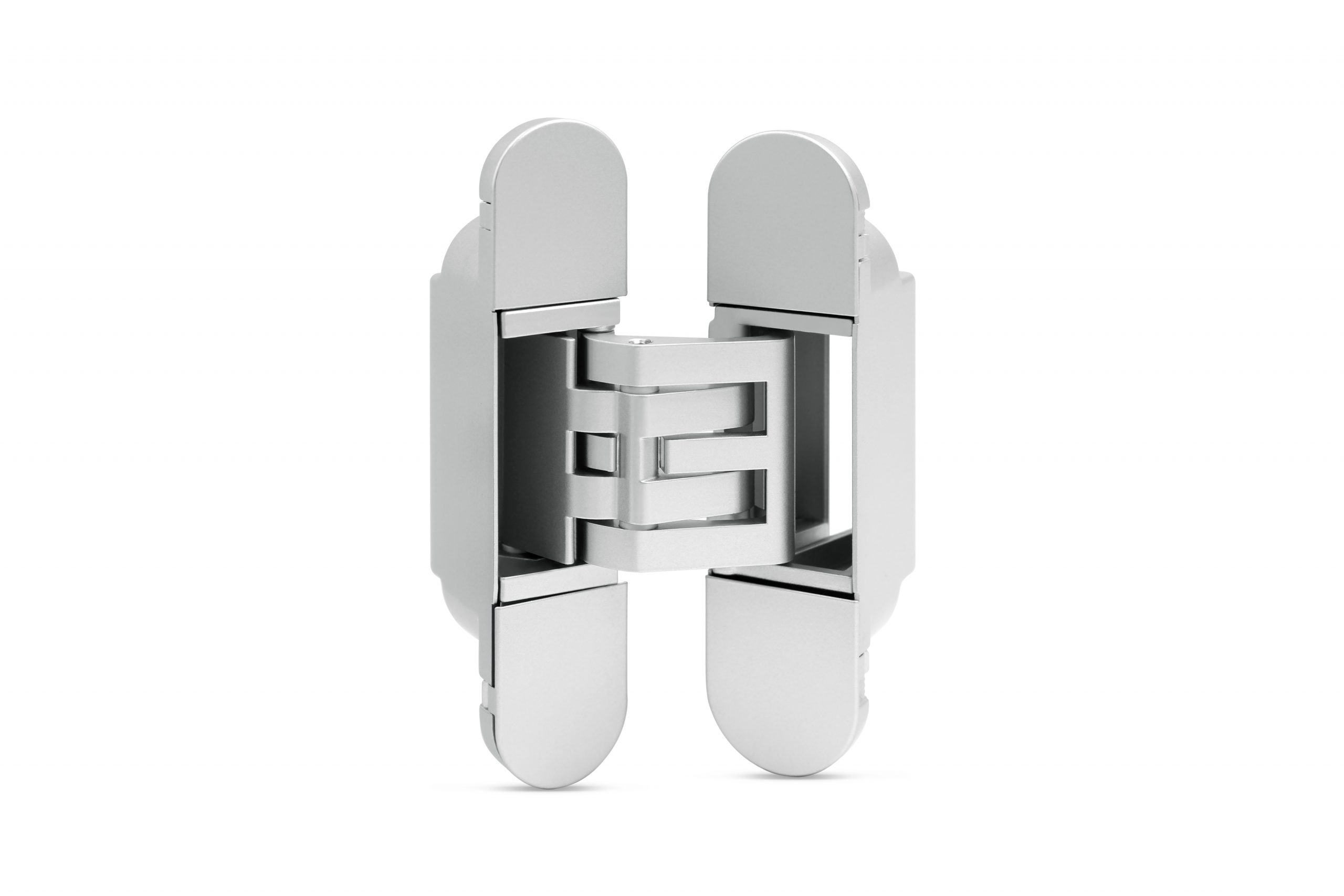

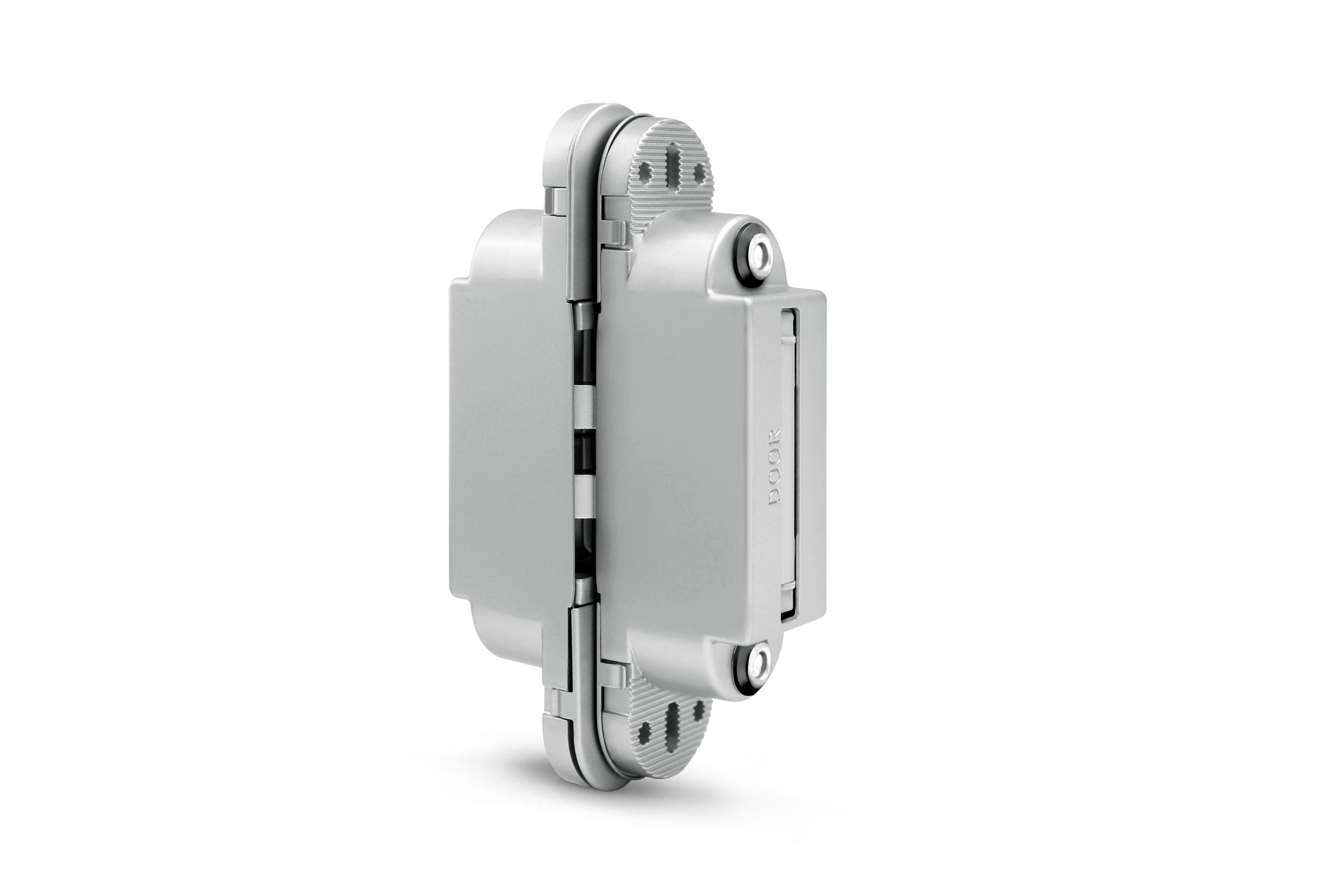

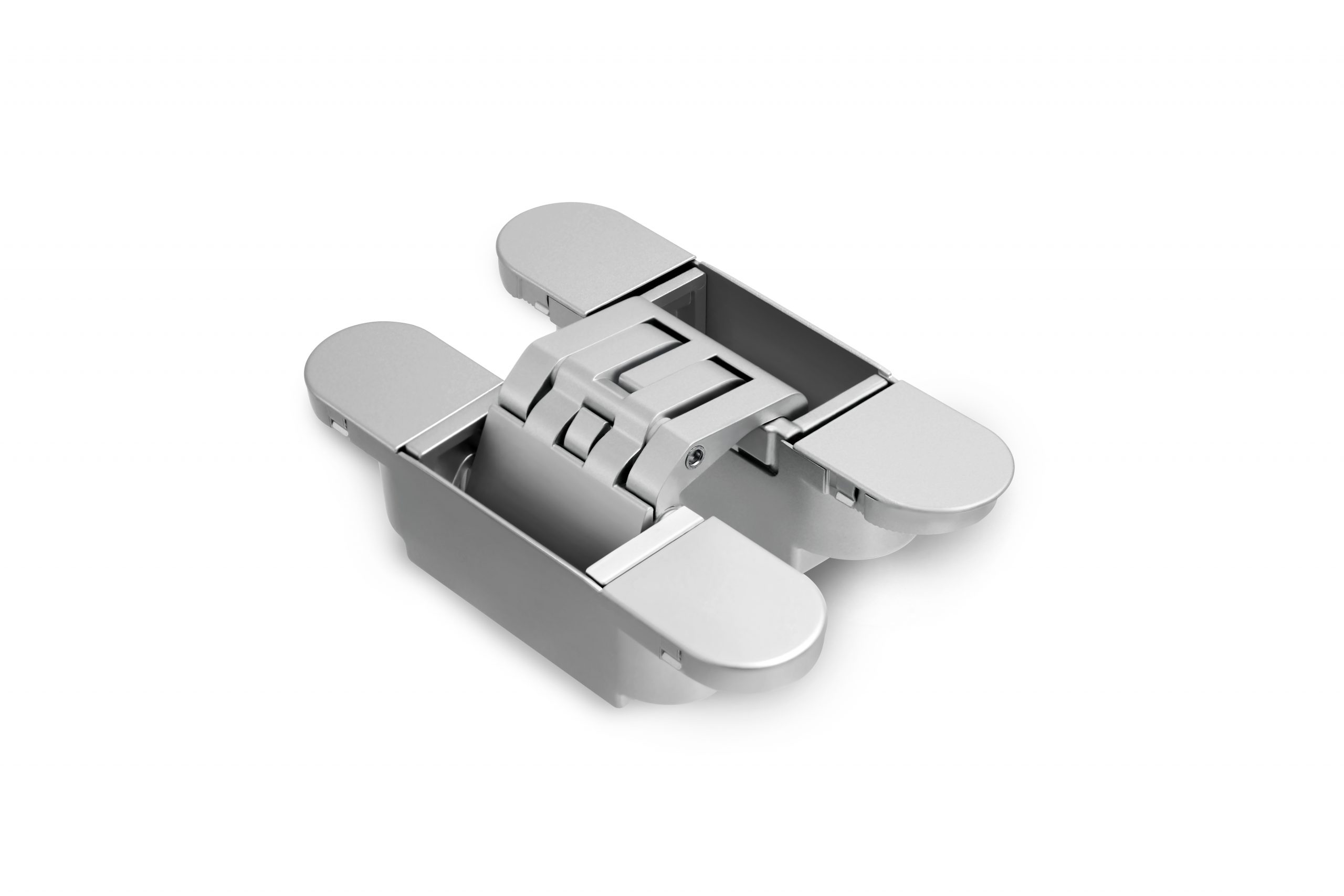

The T128-130 3D is the concealed offset hinge system for seamless door-trim integration for completely concealed installations on flush commercial doors and residential doors. It requires a minimum door panel thickness of 45 mm (1.771 inches) and offers a load capacity of up to 60 kg (132 lbs) with 2 installed.
60 kg (132 lbs) with 2 installed
Jamb: 125 mm (4.921 inches) / Leaf: 130 mm (5.118 inches)
Jamb: 28 mm (1.102 inches) / Leaf: 37 mm (1.456 inches)
Jamb: 31 mm (1.220 inches) / Leaf: 33.5 mm (1.318 inches)
4 mm (0.157 inches)
0.474 kg (1.044 lbs)
12 mm (0.472 lbs)
45 mm (1.771 inches)
180°
For wood, casing, steel and aluminum frames
For rebated flush residential doors
Hinge symmetrically aligned with the door leaf’s central axis
Made in zinc alloy
Allows for easily continuous adjustment in 3 dimensions
Height: + /– 2.5 mm
Depth : + /– 1 mm
Side: + 2 /– 1.5 mm
