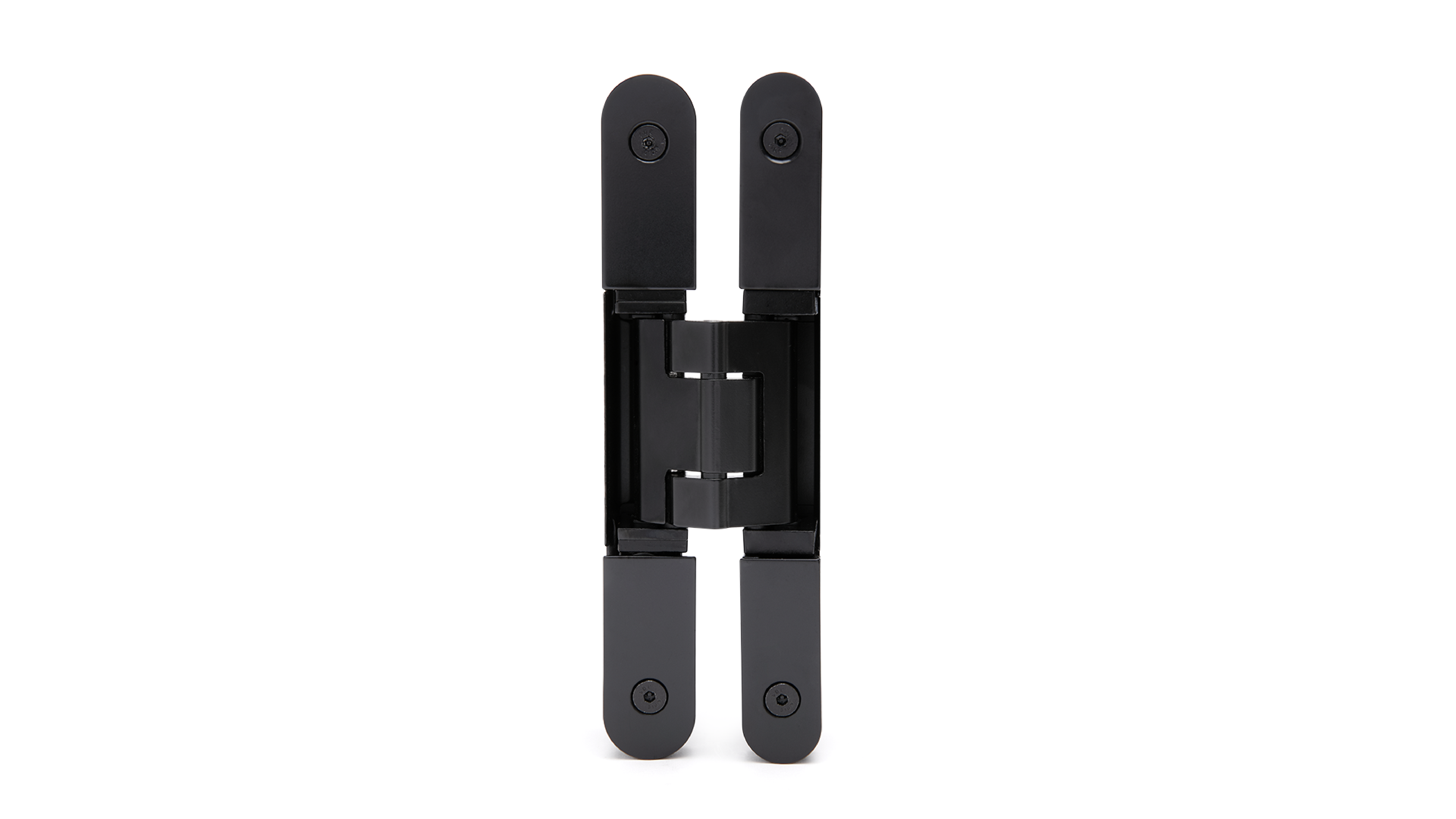

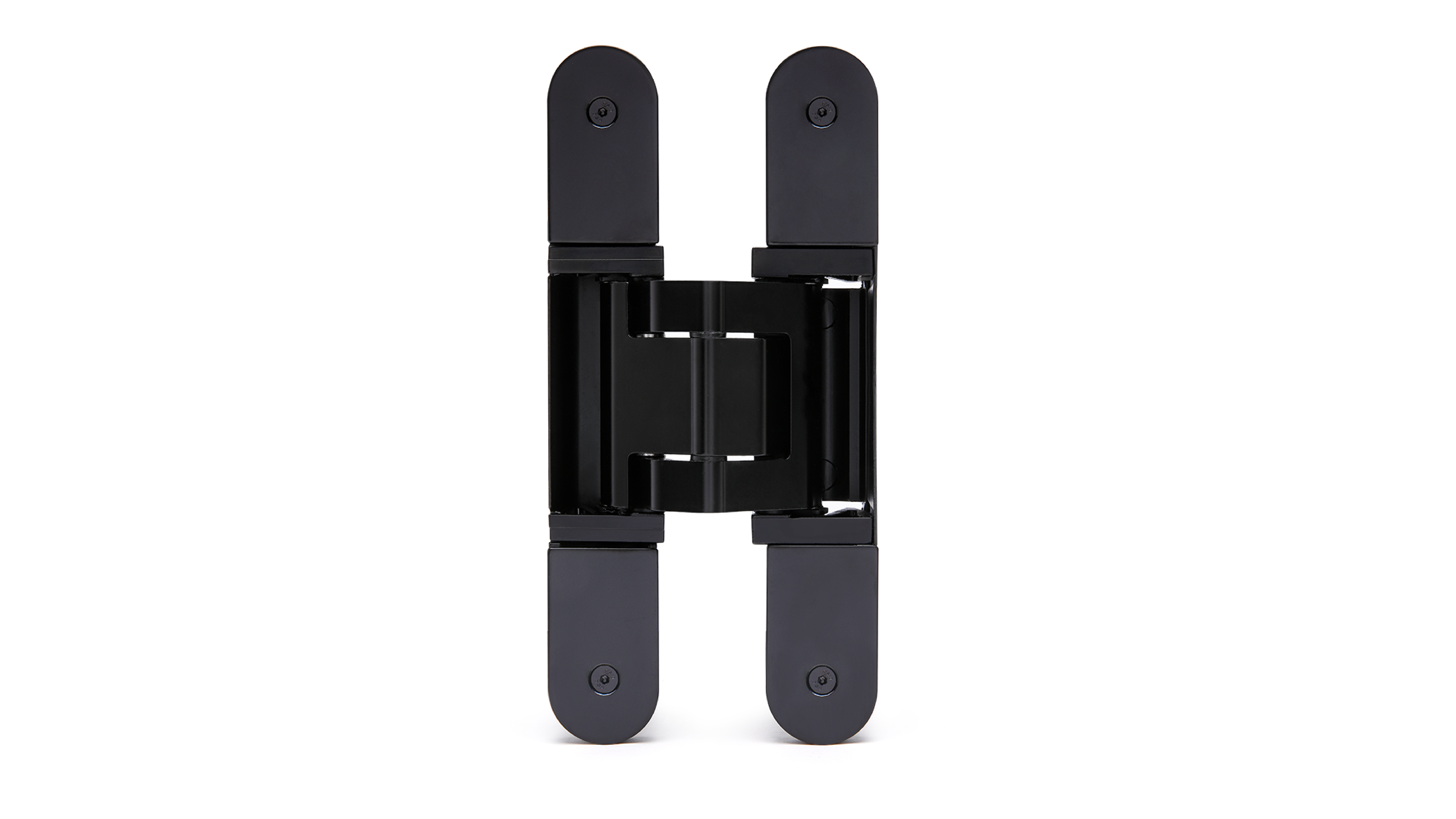

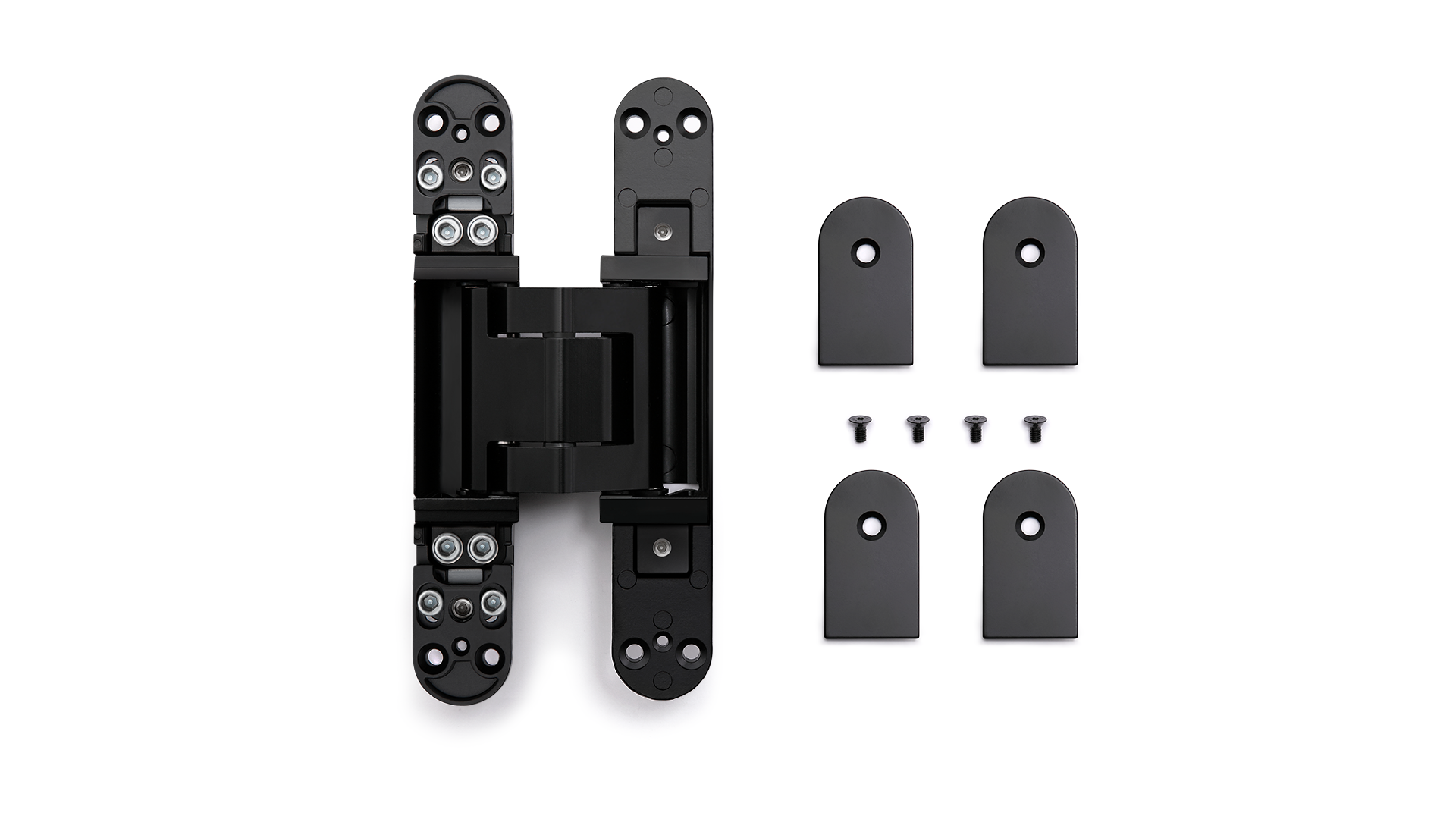

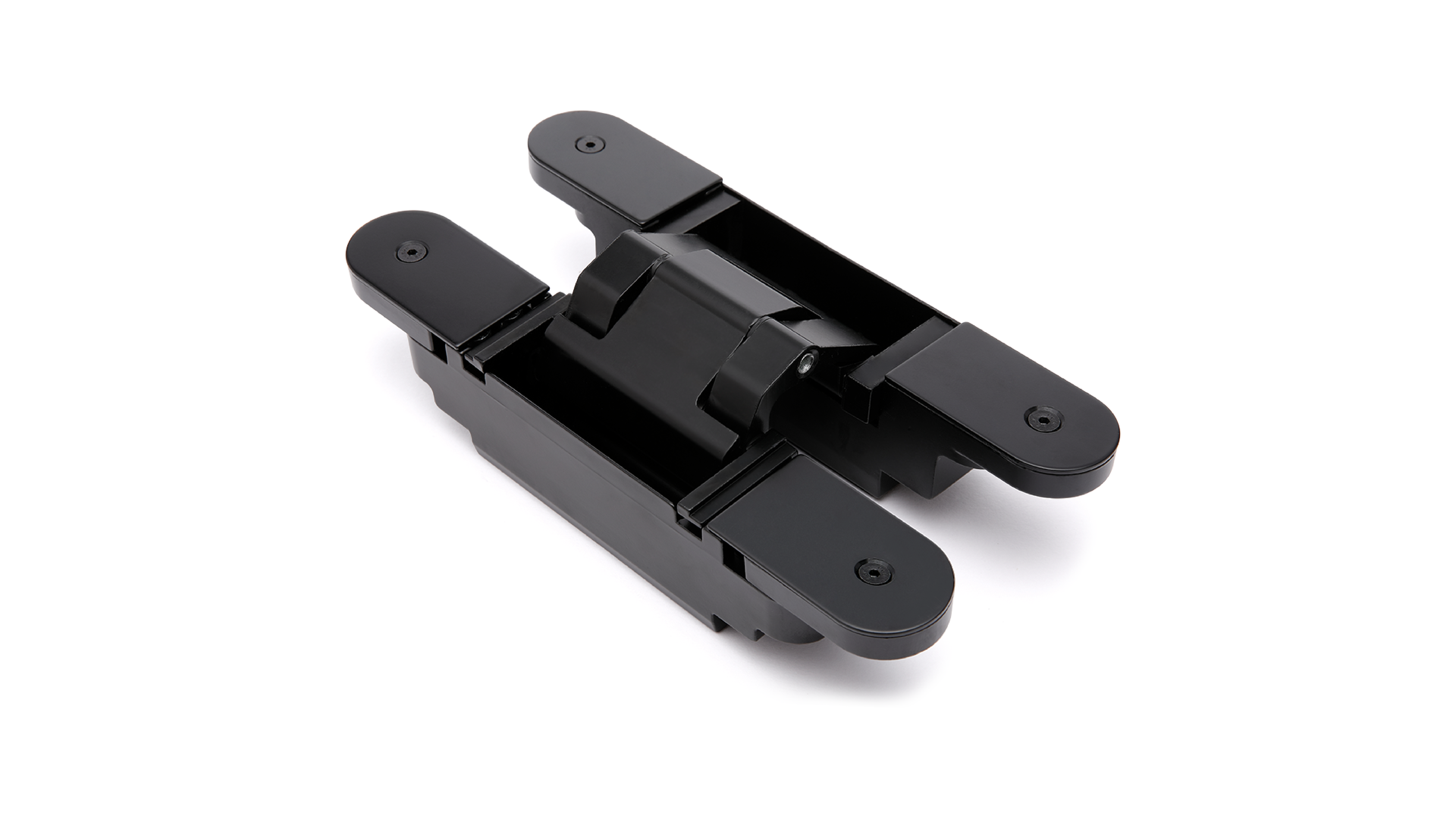

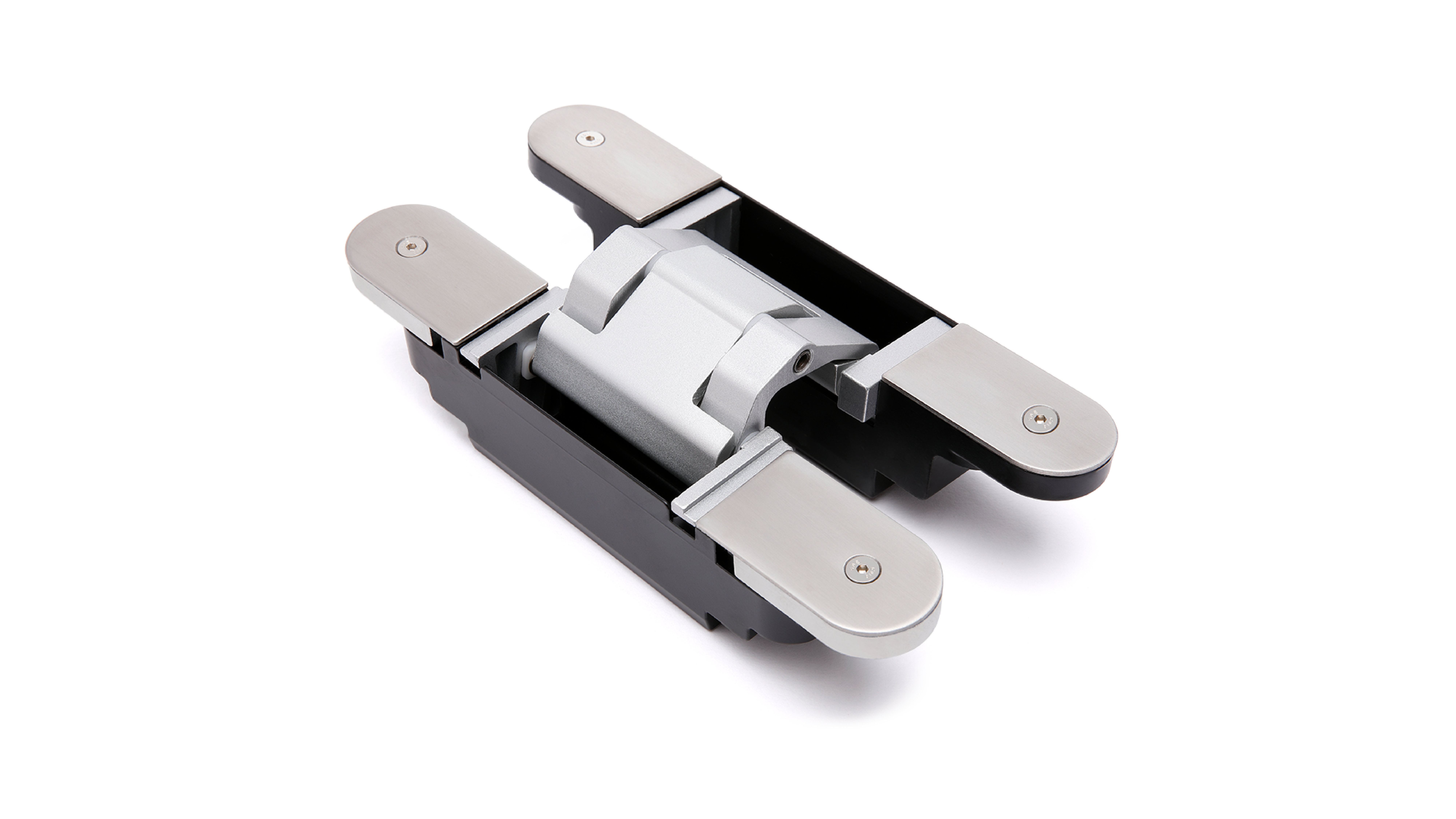

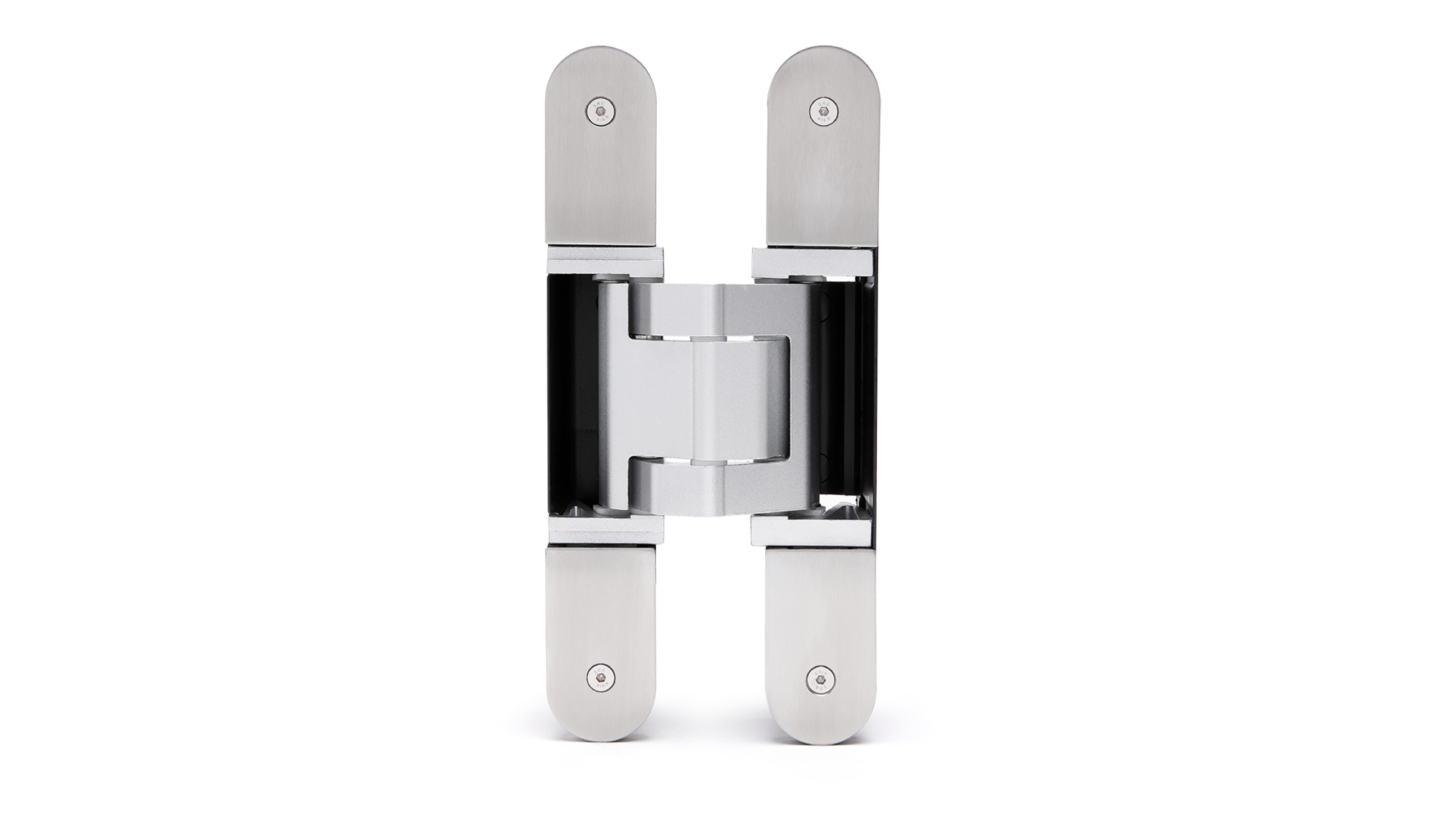

The C215-200 3D is designed for completely concealed installations on flush commercial doors and residential doors. It requires a minimum door panel thickness of 50 mm (1.968 inches) and offers a load capacity of up to 100 kg (220 lbs) with 2 installed.
100 kg (220 lbs) with 2 installed

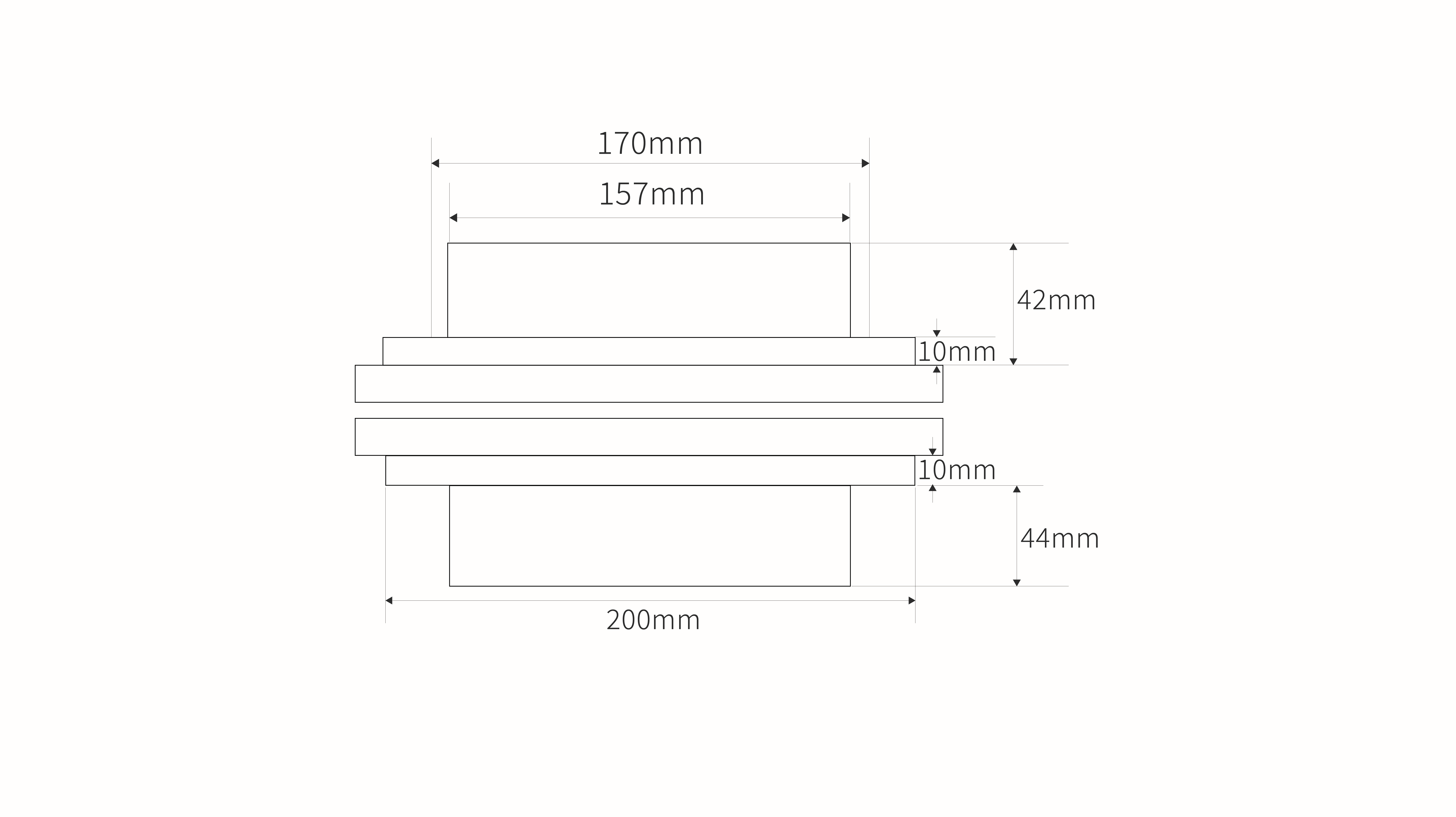

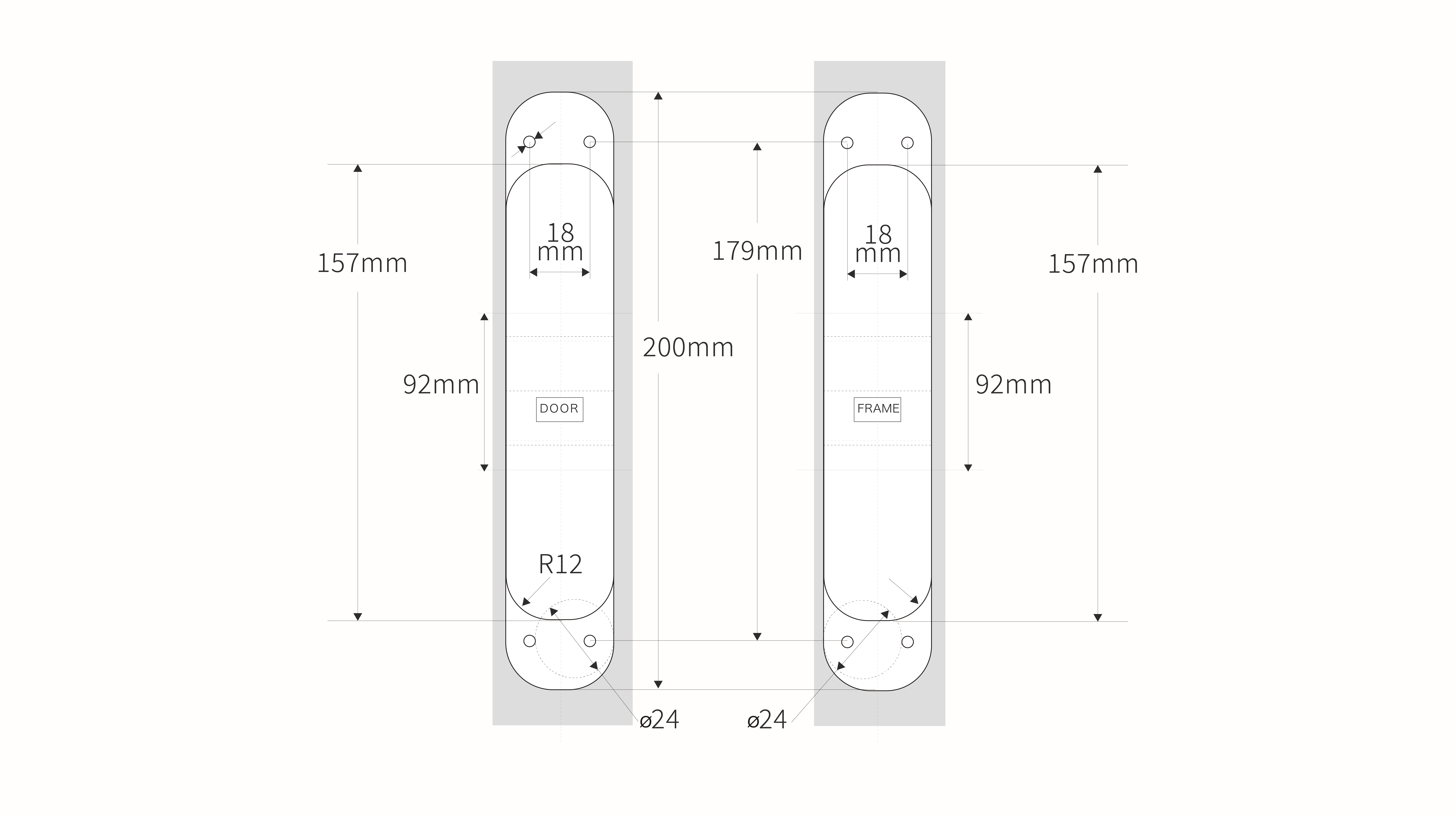

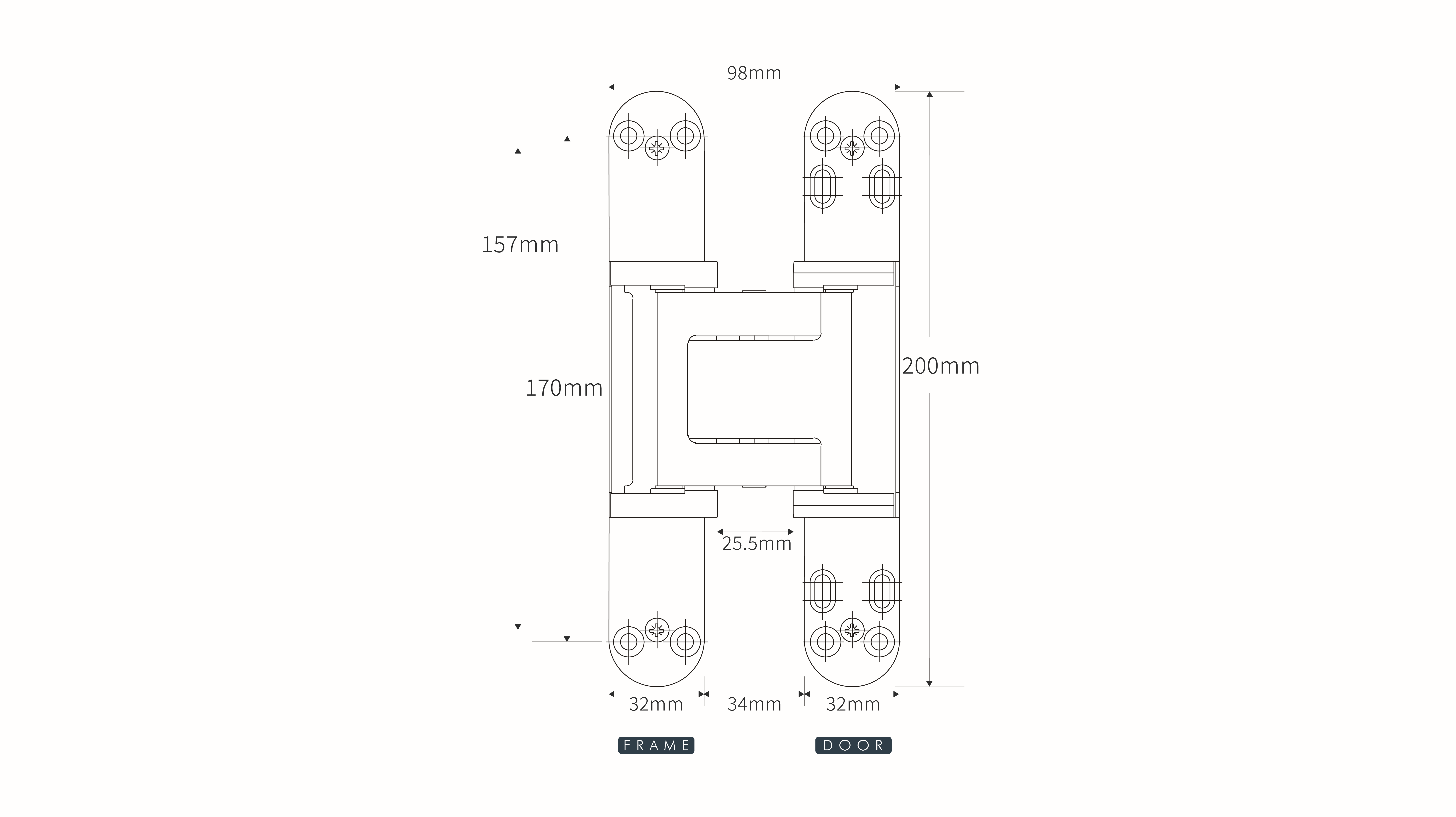

200 mm (7.874 inches)

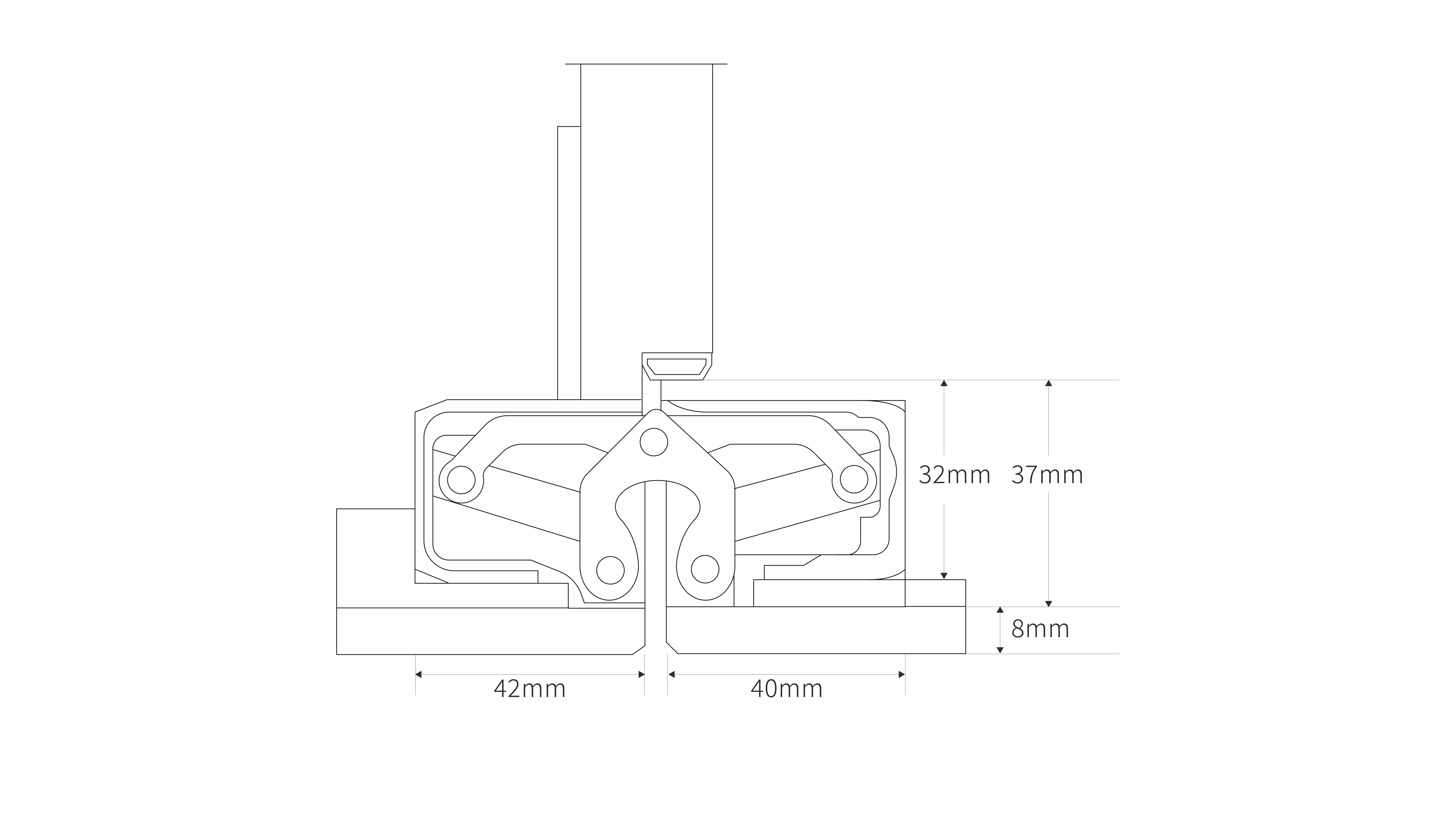

Frame: 32 mm (1.259 inches) / Leaf: 32 mm (1.259 inches)
Frame: 41 mm (1.614 inches) / Leaf: 43.5 mm (1.712 inches)
50 mm (1.968 inches)
24 mm (0.944 inches)
180°
For wood, casing, steel and aluminum frames
Made in zinc alloy

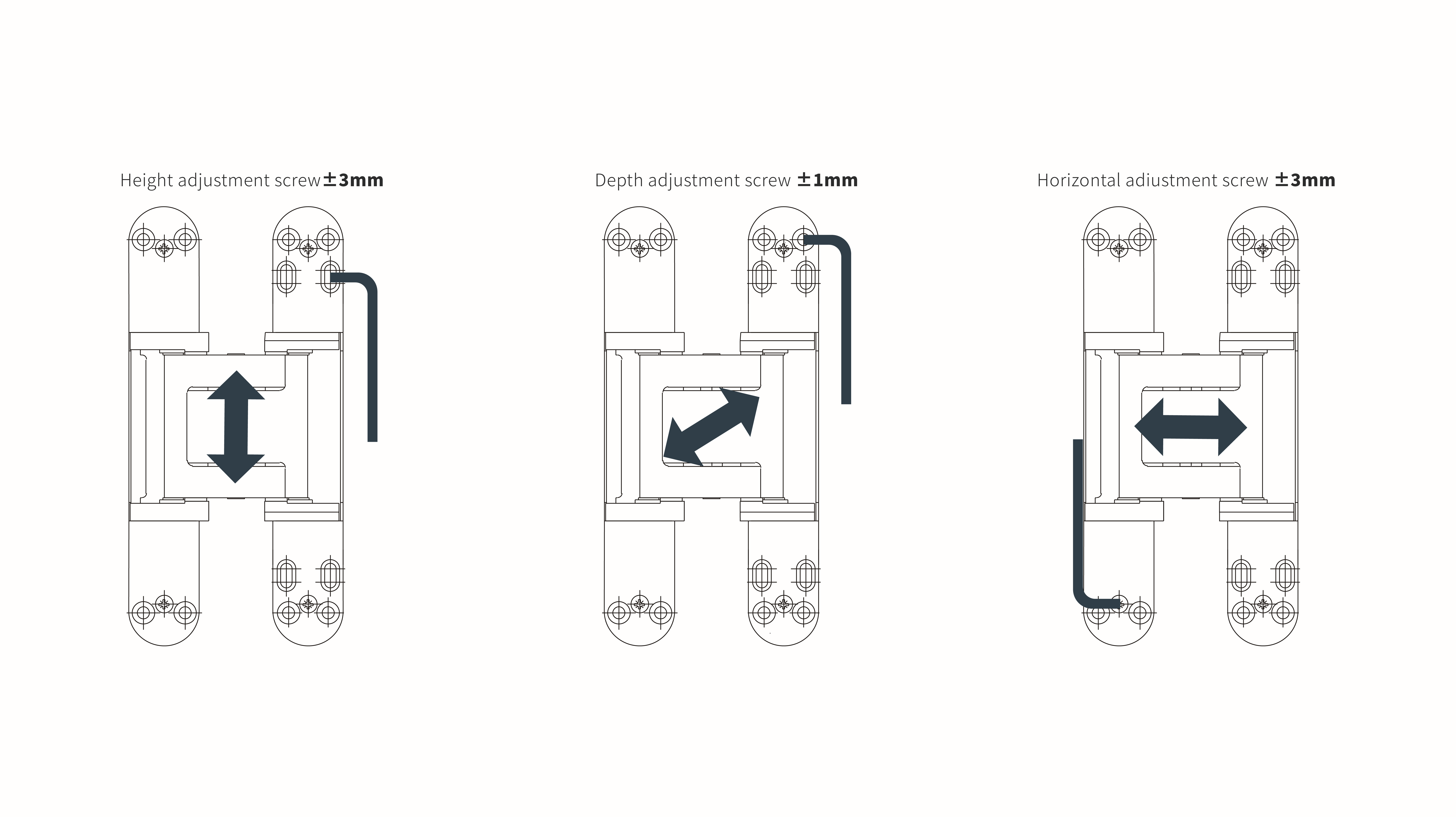

Allows for easily continuous adjustment in 3 dimensions
Height: + /– 3 mm
Depth : + /– 1 mm
Side: + /– 3 mm
