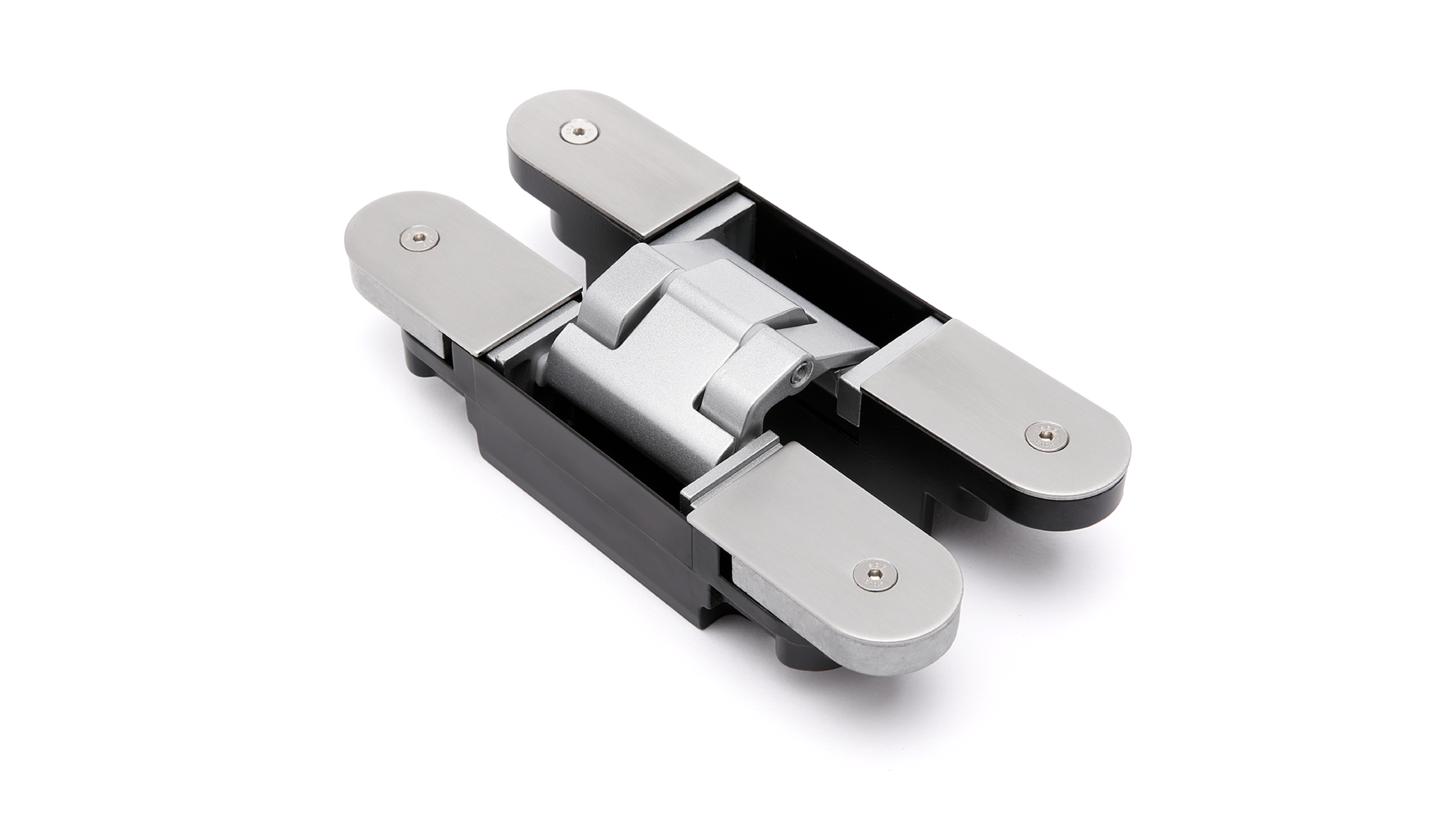

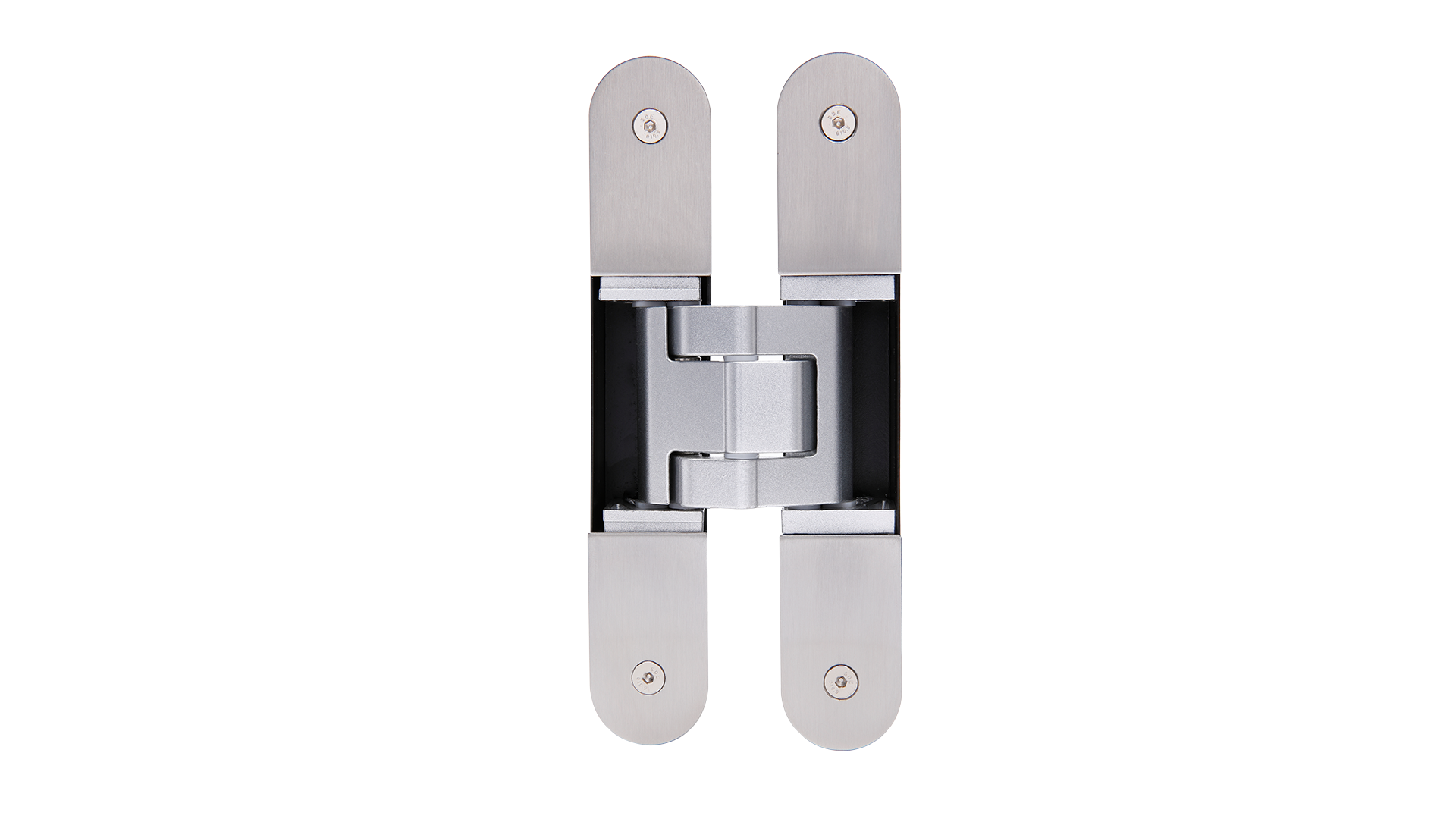

Crafted with refined finishes and a sleek minimal design, the C215-160 3D concealed door hinge delivers a fully hidden, 3-axis-adjustable solution for flush commercial or residential doors. Each pair of these 3D concealed hinges fits panels from 40 mm / 1.57 in thick and safely carries up to 80 kg / 176 lb, ensuring precise alignment, silent operation, and a clean, uninterrupted door face.
80 kg (176 lbs) with 2 installed

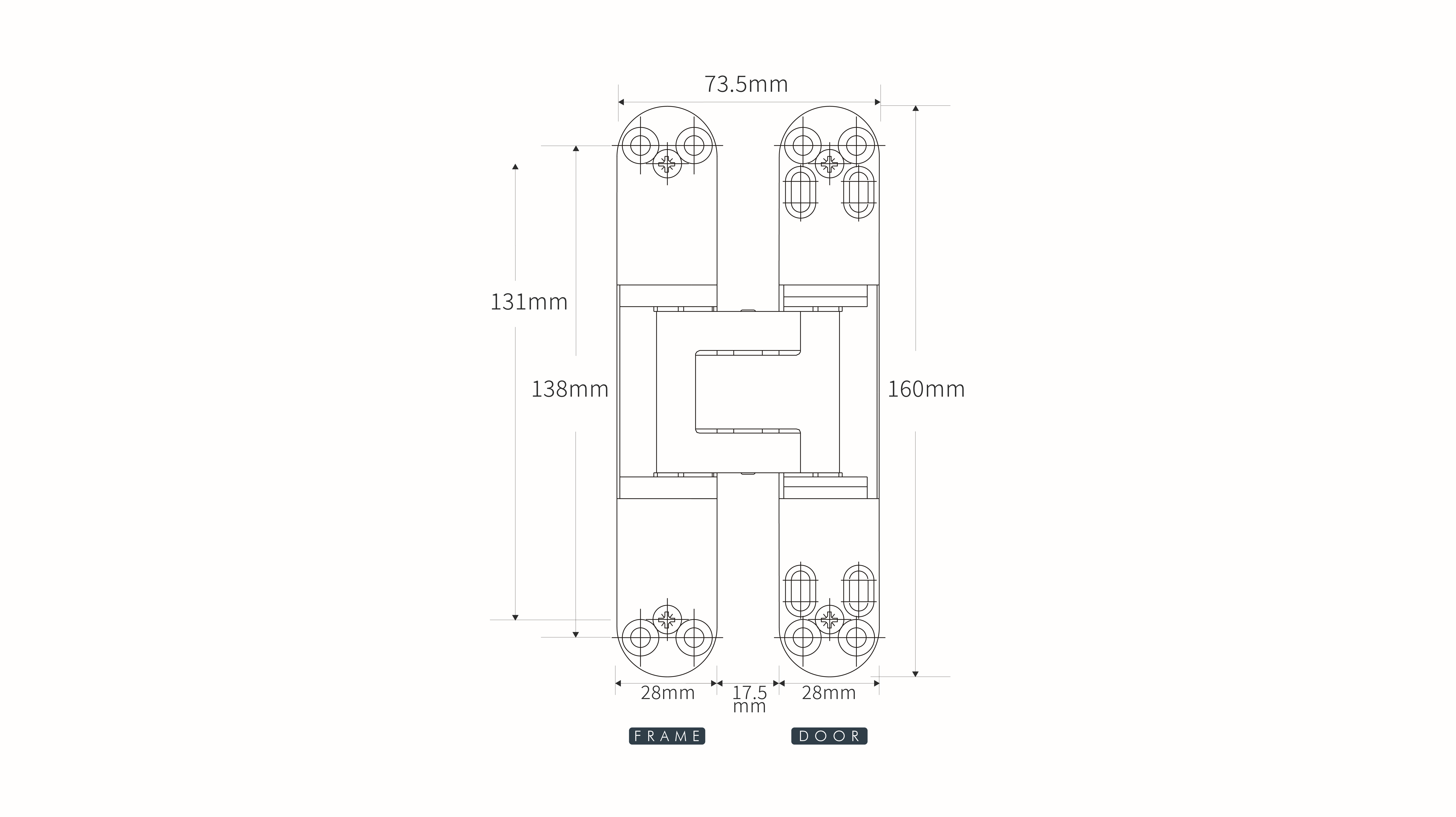

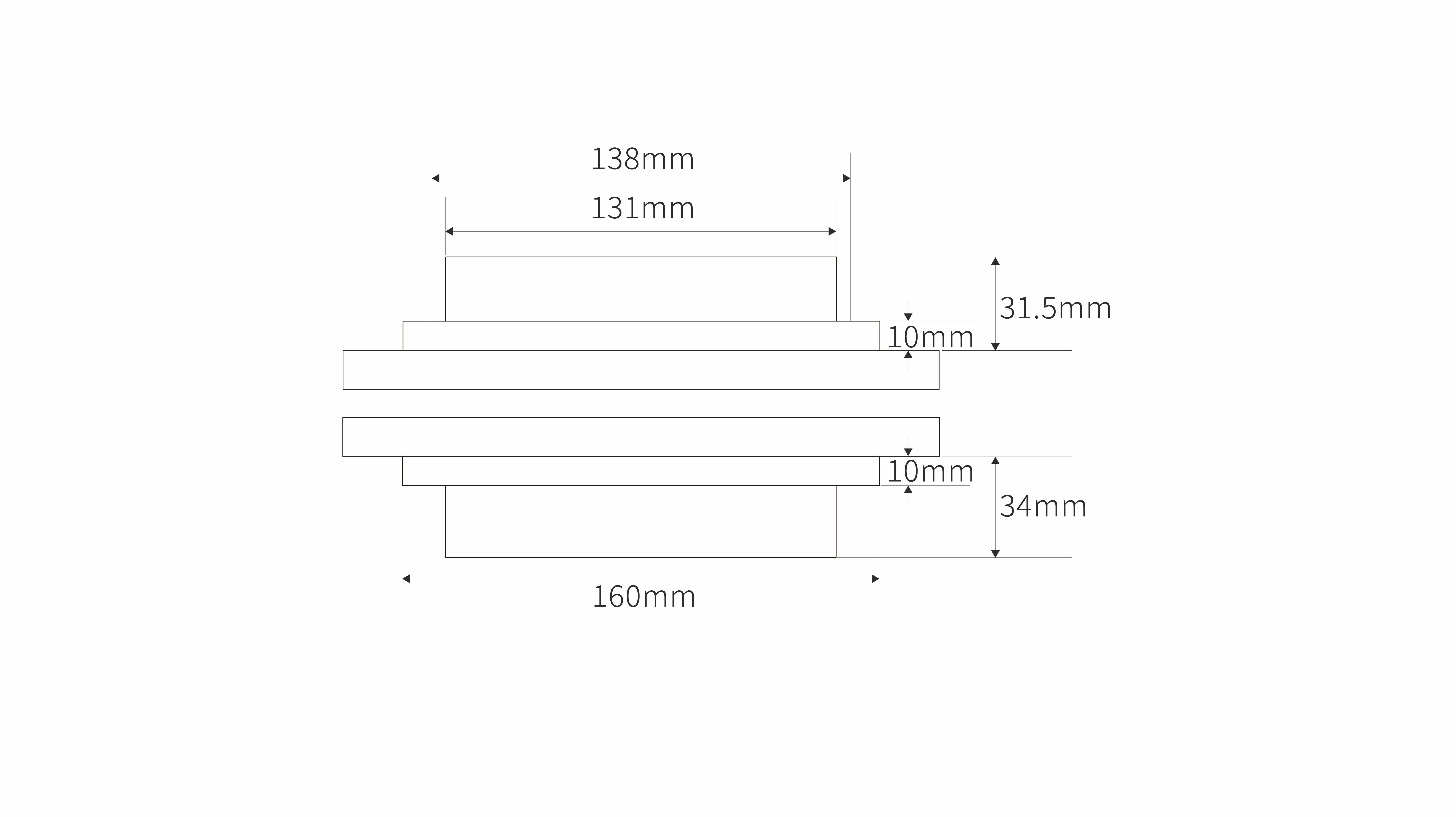

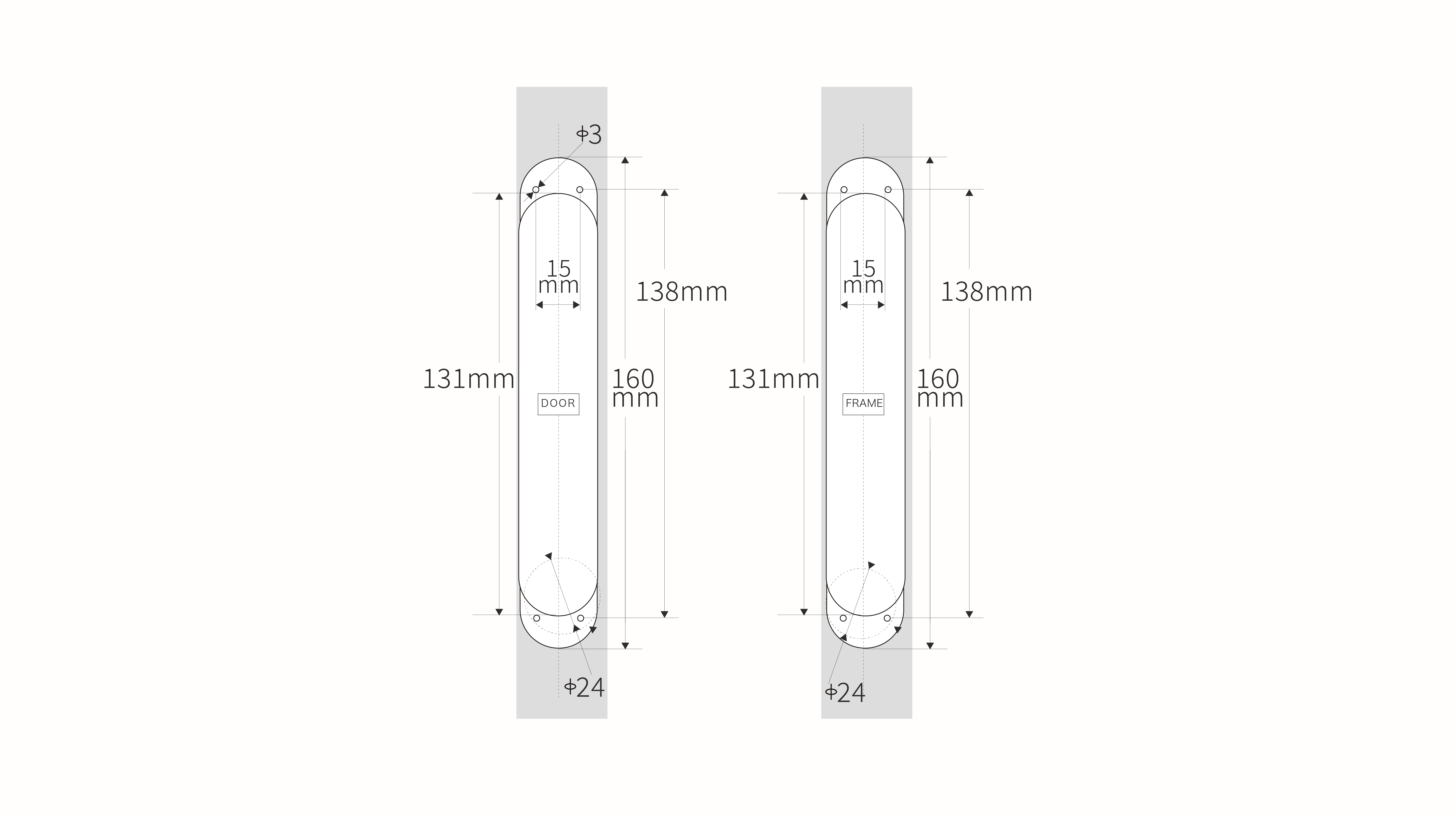

160 mm (6.299 inches)

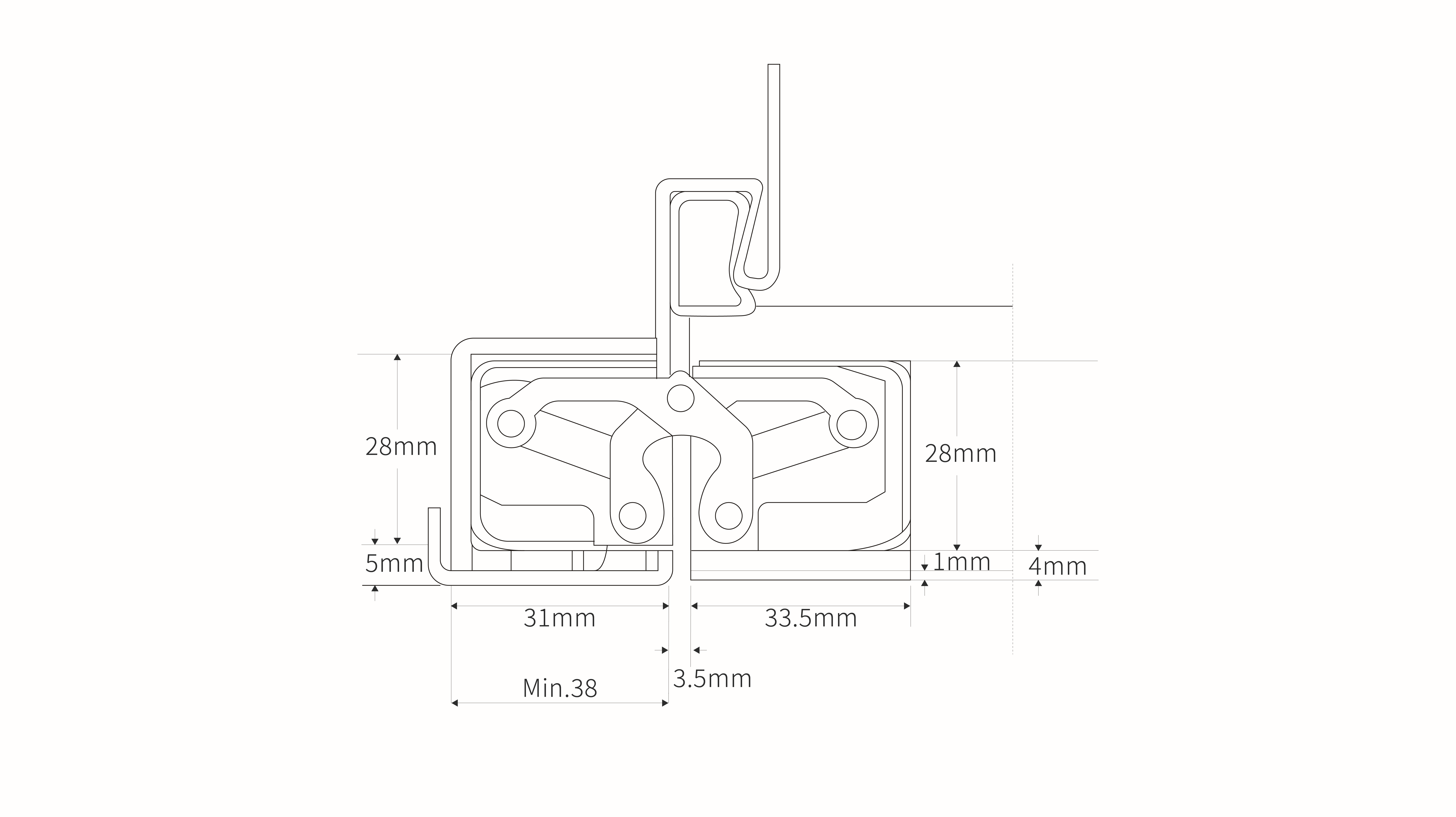

Frame: 28 mm (1.102 inches) / Leaf: 28 mm (1.102 inches)

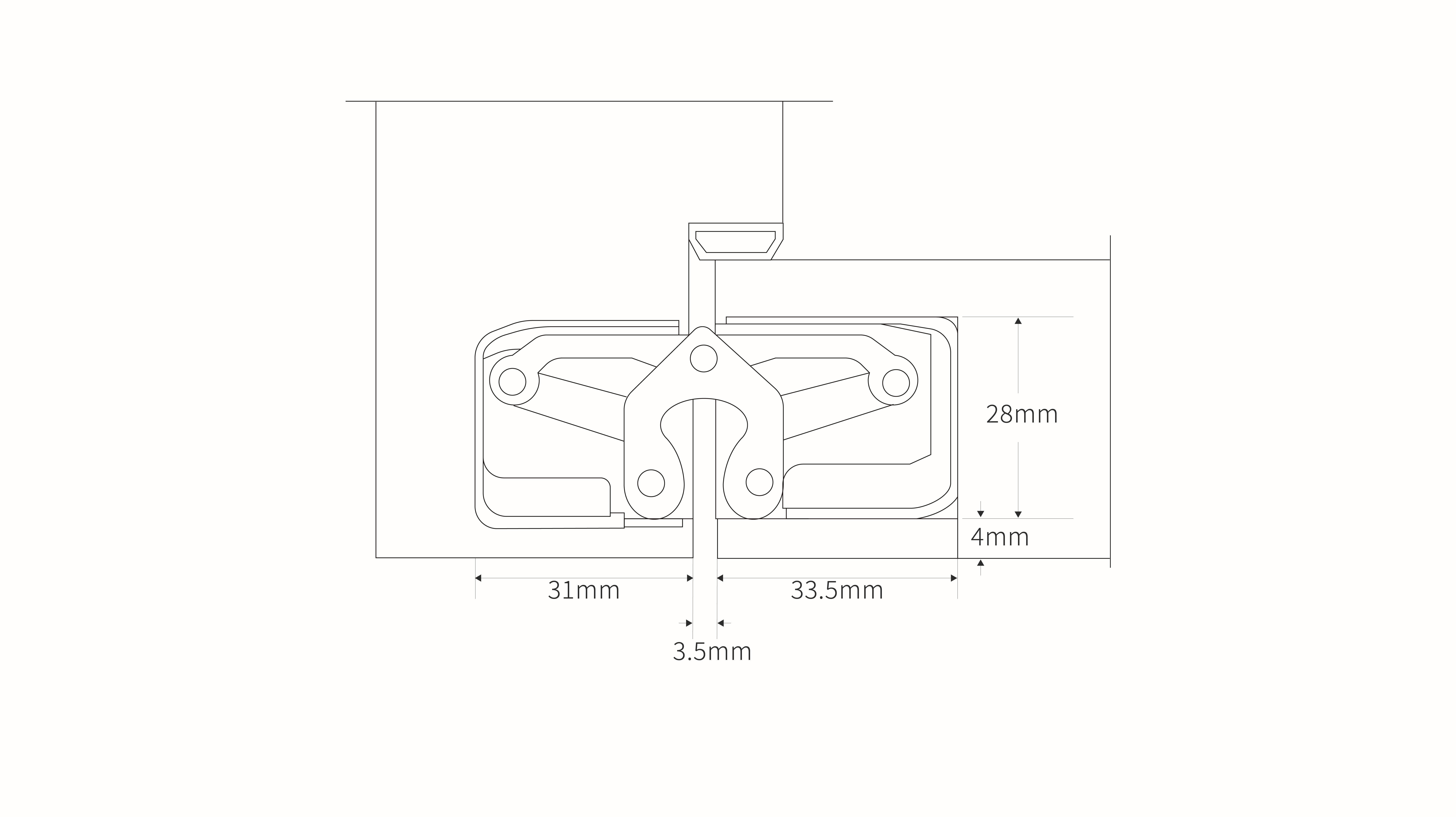

Frame: 31 mm (1.220 inches) / Leaf: 33.5 mm (1.318 inches)
40 mm (1.574 inches)
24 mm (0.944 inches)
180°
For wood, casing, steel and aluminum frames
Made in zinc alloy

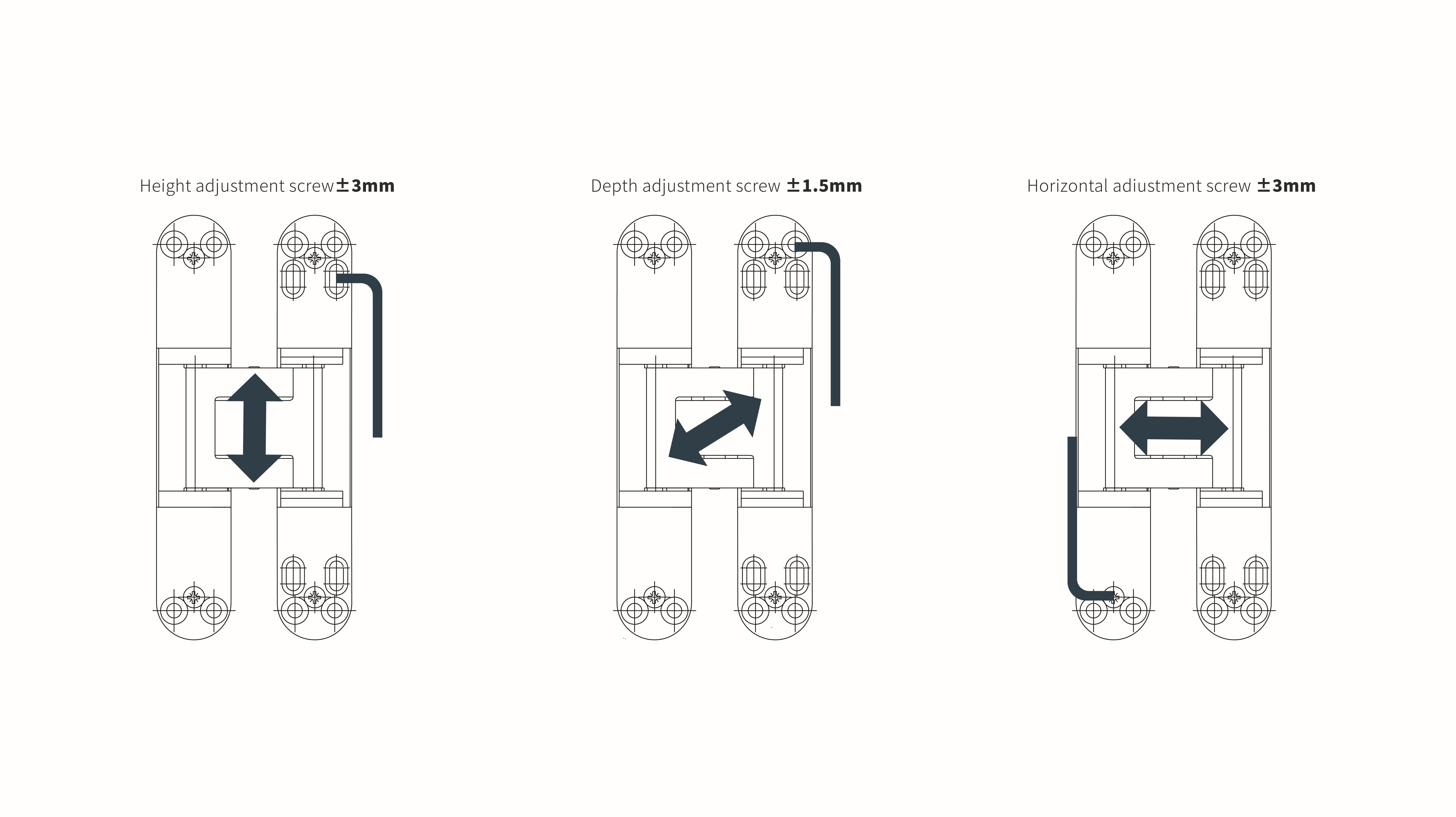

Allows for easily continuous adjustment in 3 dimensions
Height: + /– 3 mm
Depth : + /– 1 mm
Side: + /– 3 mm
True 3-Axis Precision
Enjoy an exceptional experience with three-dimensional concealed door hinges, and every door will open and close perfectly and effortlessly. For architects and designers, the C215-160 3D concealed hinges are easy to adjust and install in different spaces. They can be adjusted to fine-tune height (±3 mm), side (±3 mm) and depth (±1 mm) with a single hex key after the door is hung. The 3D concealed door hinges can deal with door gap problems effectively and eliminate costly callbacks. Plus, Keep a minimalist and elegant appearance while improving the functionality of your space.
Easily correct minor deviations in the door frame for a perfectly centered, visually pleasing result.
Uneven floors? No problem—precisely control the door leaf’s height to guarantee smooth opening and closing.
Fine-tune the fit to keep the door tightly sealed and secure when closed.
Heavy-Duty Door Hinges
Featuring a zinc-alloy body with hardened steel knuckles, these two 3D concealed hinges support doors 40–850 mm thick (up to 80 kg/176 lb), delivering a minimalist look and durability for high-traffic lobbies and luxury residences. Additionally, with a fluid opening of 180 degrees, the 3D concealed hinges enable doors to open fully for easy access, suitable for catering, retail stores, office buildings, and homes.
Invisible Elegance
Crafted with precision, the 3D adjustable concealed hinges feature classic colors and smooth coatings, satisfying your desire for functionality and elegance. Experience a seamless fusion of art and engineering. Our high-end 3D concealed hinges are designed to be recessed within the door and frame, making them nearly invisible when the door is closed. They allow for a smooth operation, and uninterrupted surface while elevating your home’s aesthetic and comfort.
