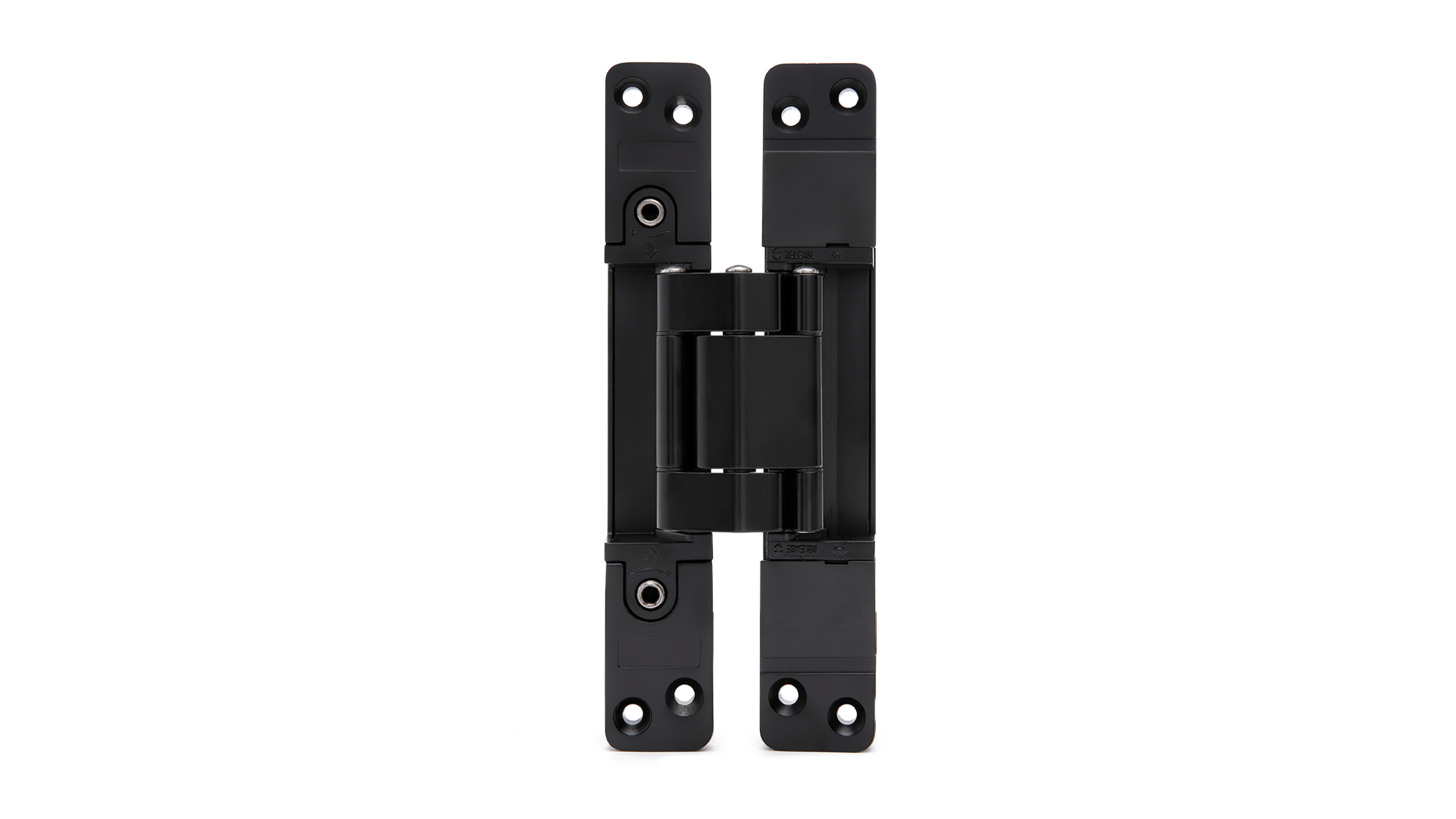

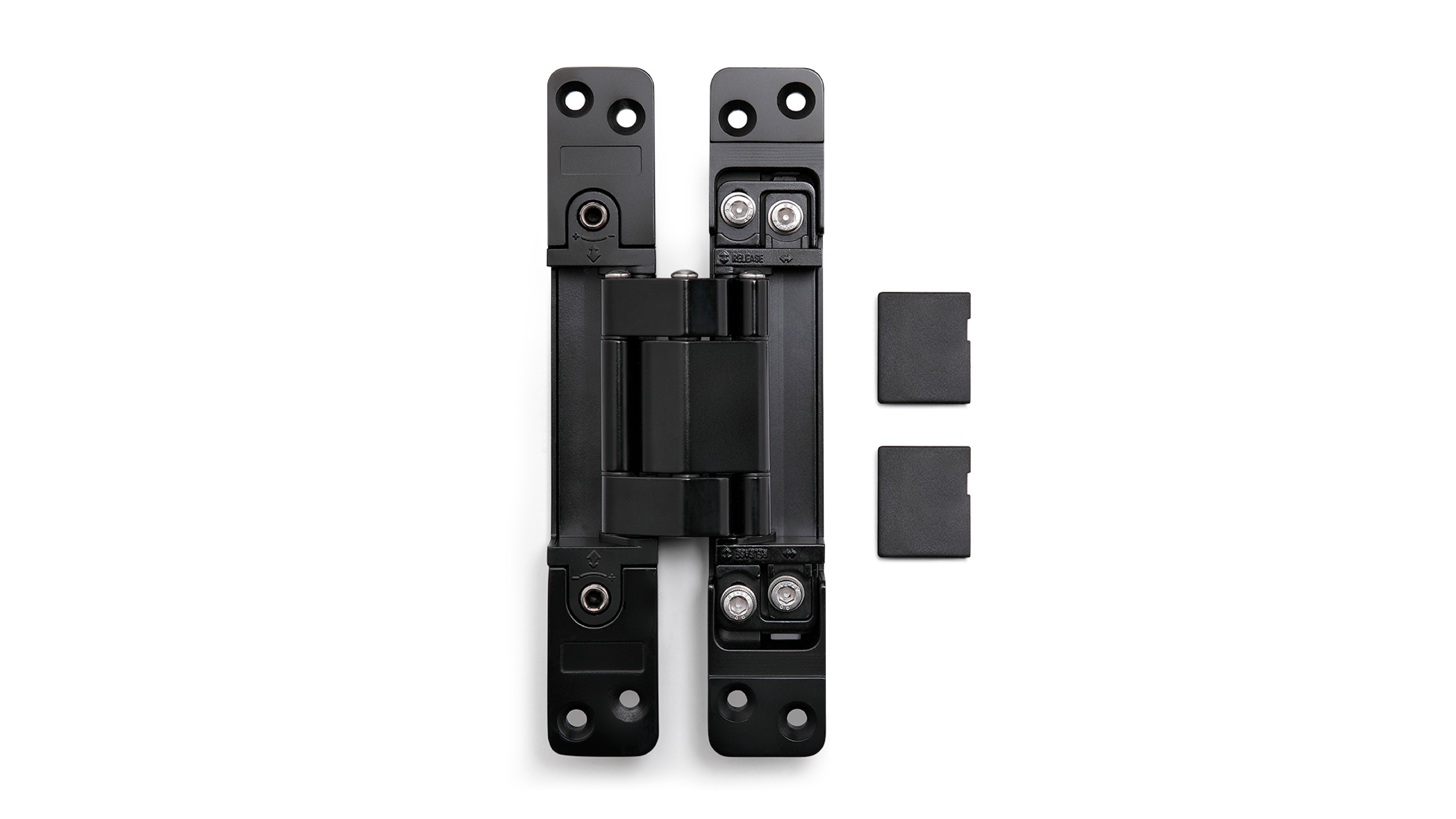

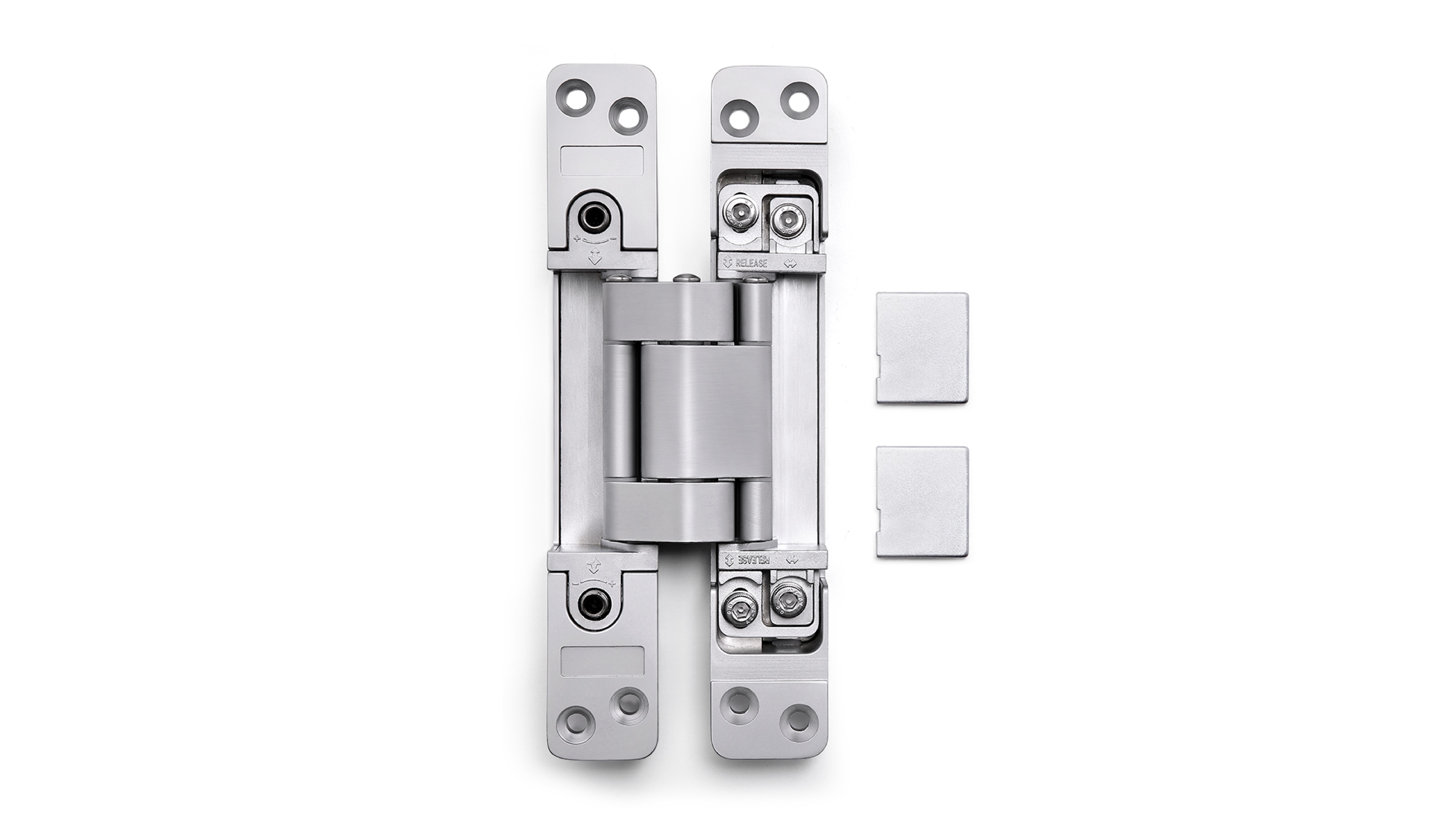

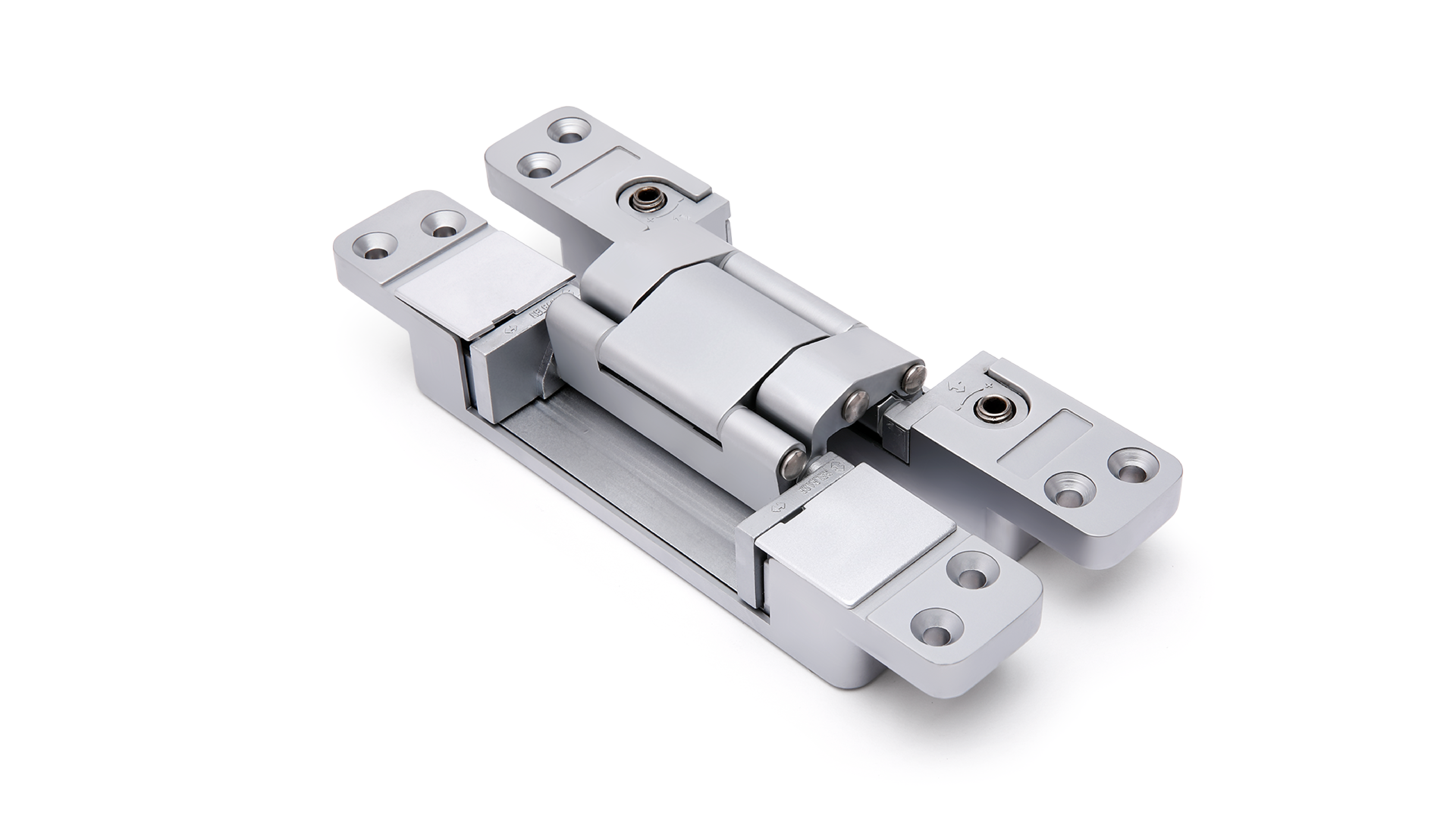

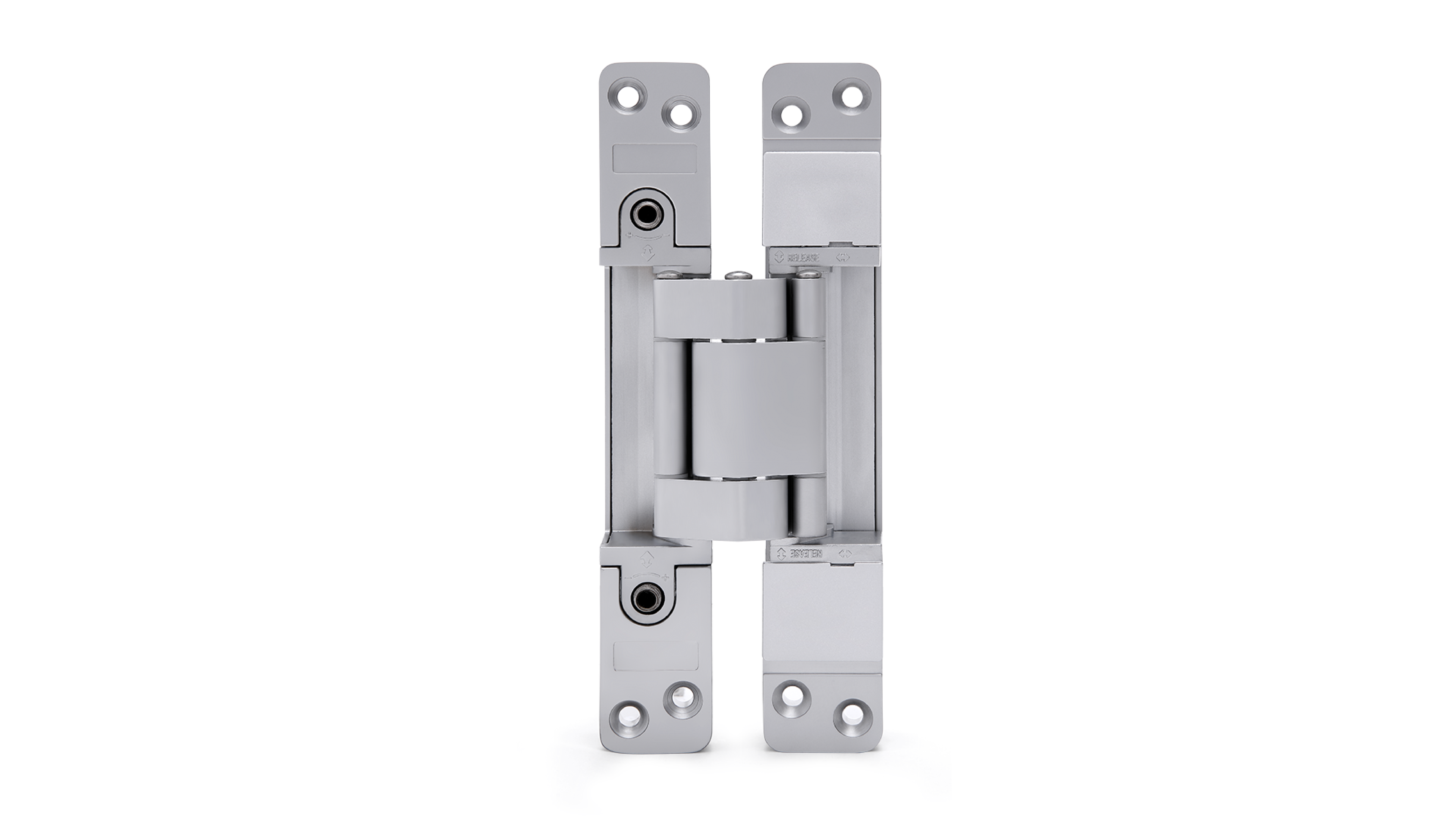

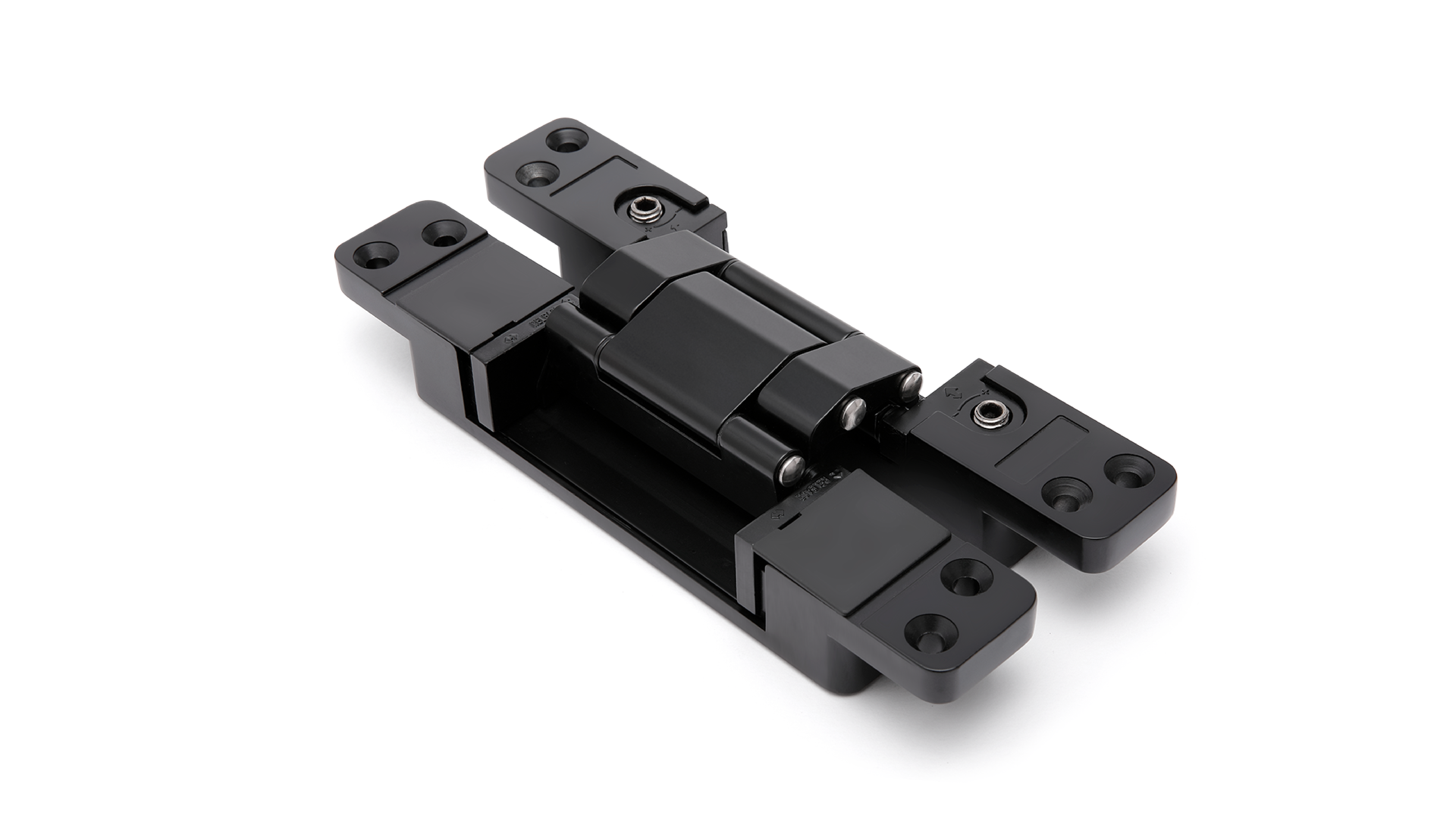

The C211 3D is designed for completely concealed installations on flush commercial doors and residential doors. It requires a minimum door panel thickness of 36 mm (1.417 inches) and offers a load capacity of up to 80 kg (176 lbs) with 2 installed.
80 kg (176 lbs) with 2 installed

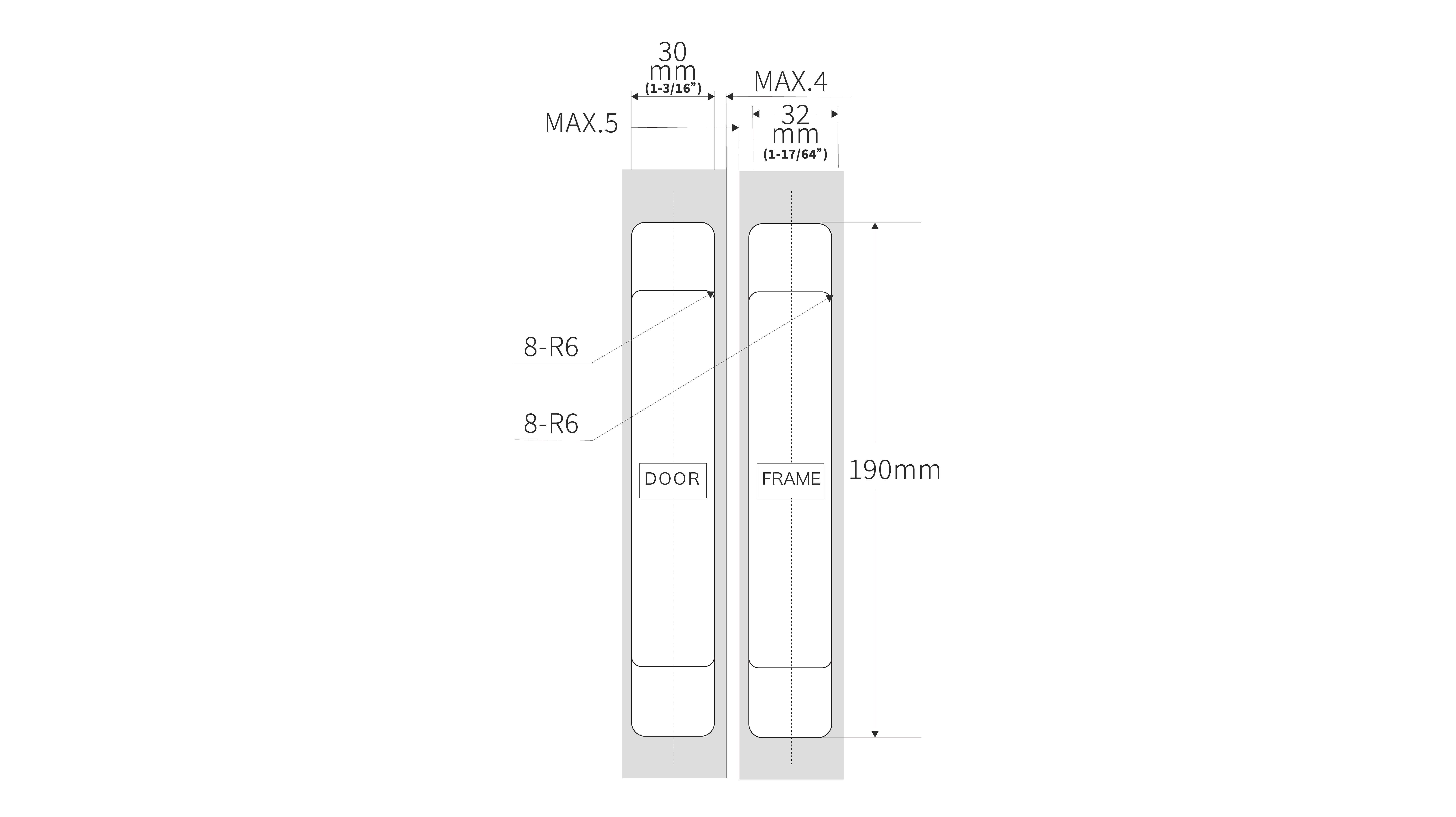

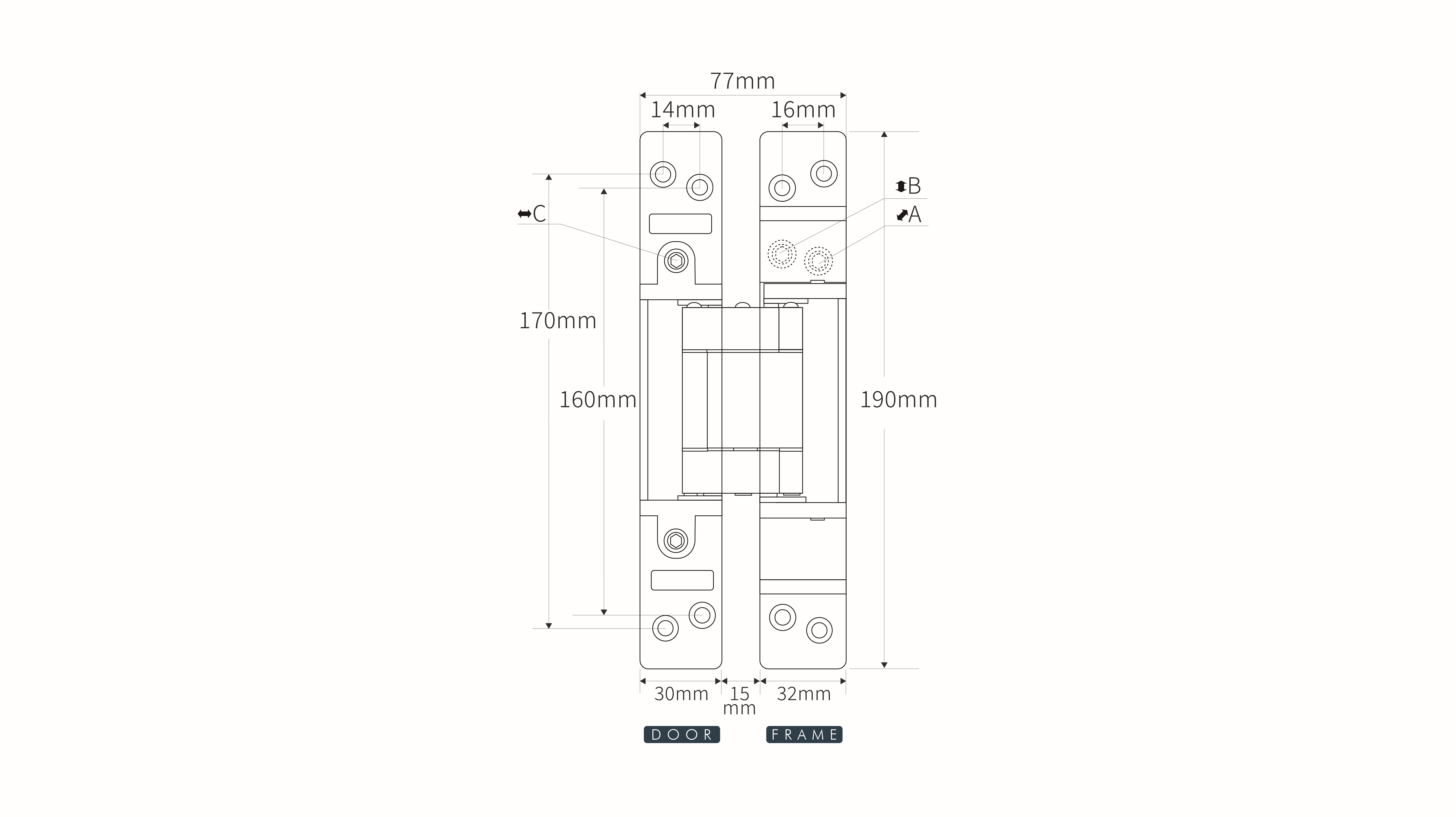

190 mm (7.480 inches)

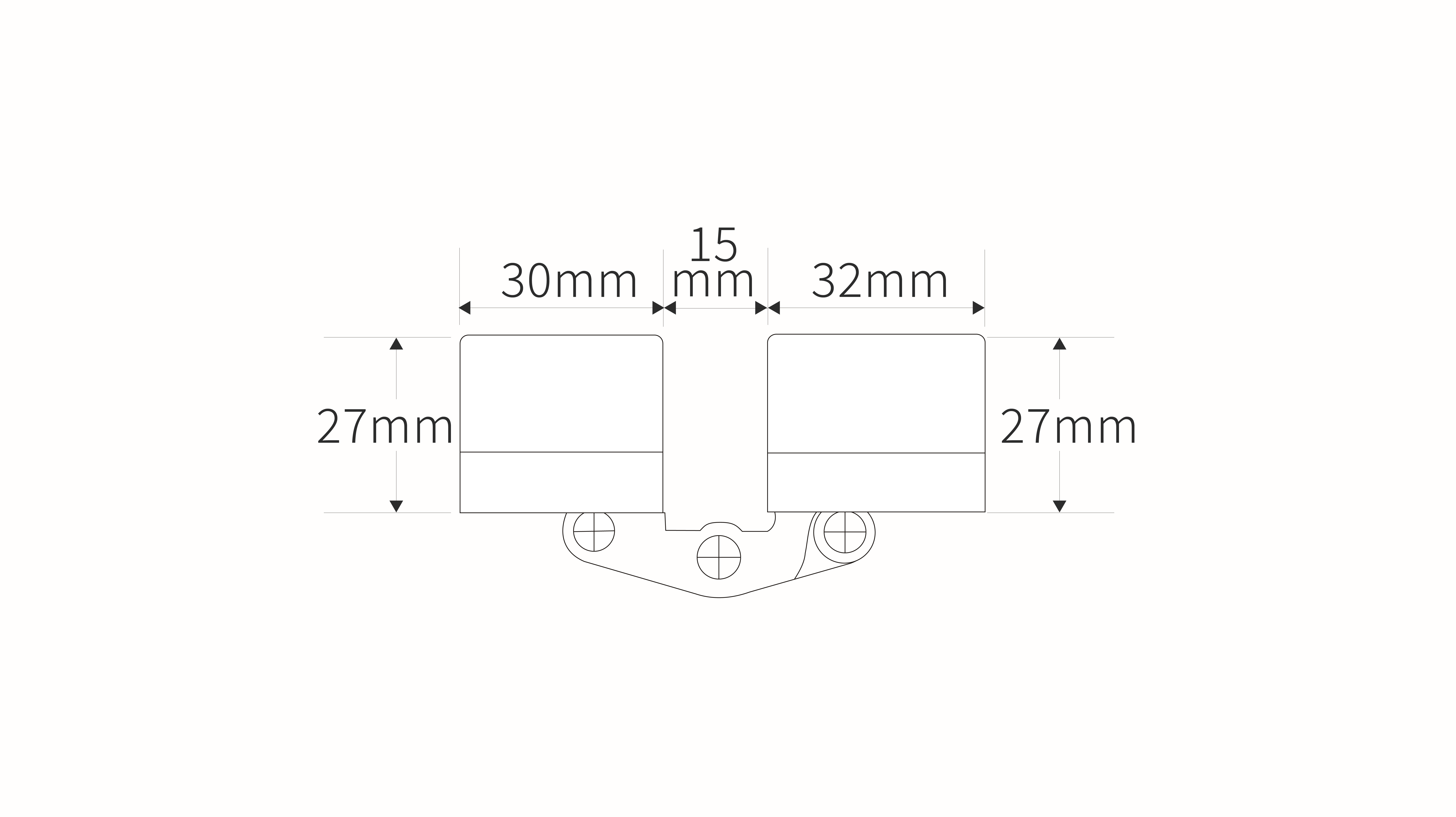

Frame: 32 mm (1.259 inches) / Leaf: 30 mm (1.181 inches)
Frame: 27 mm (1.062 inches) / Leaf: 27 mm (1.062 inches)
36 mm (1.417 inches)
32 mm (1.259 inches)
180°
For wood, casing, steel and aluminum frames
Made in zinc alloy
Allows for easily continuous adjustment in 3 dimensions
Height: + /– 6 mm
Depth : + /– 2 mm
Side: + /– 4 mm
