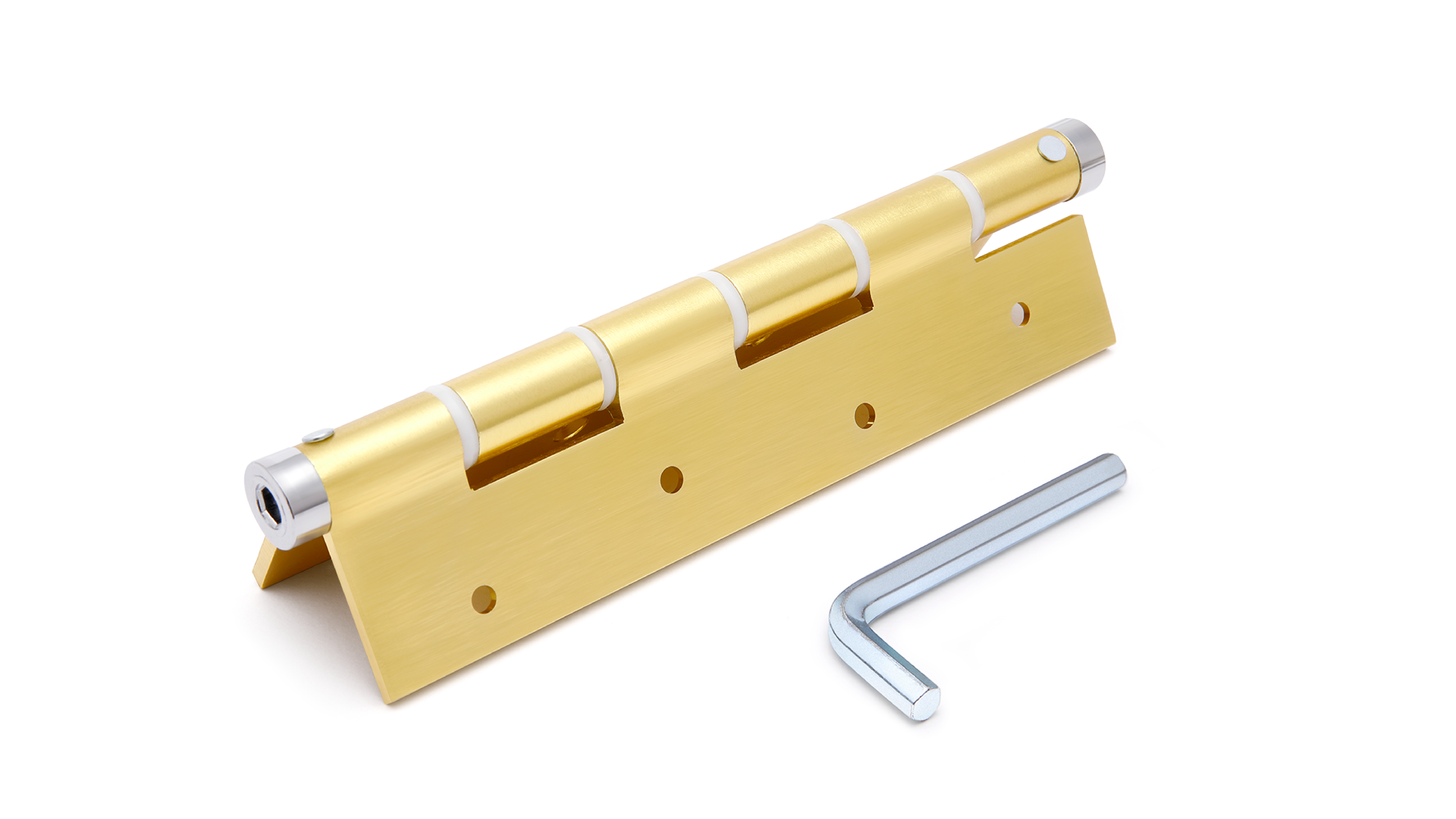

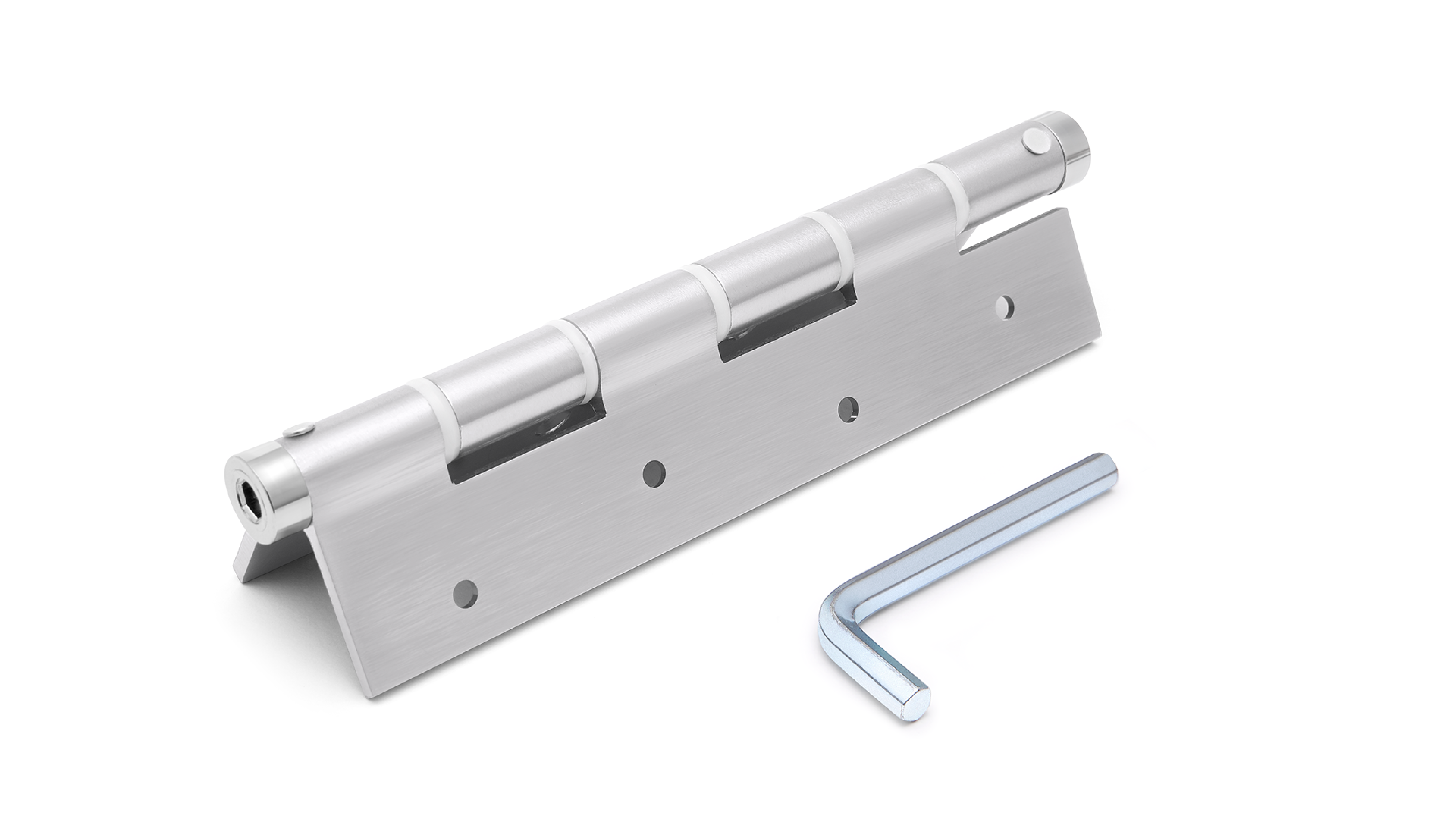

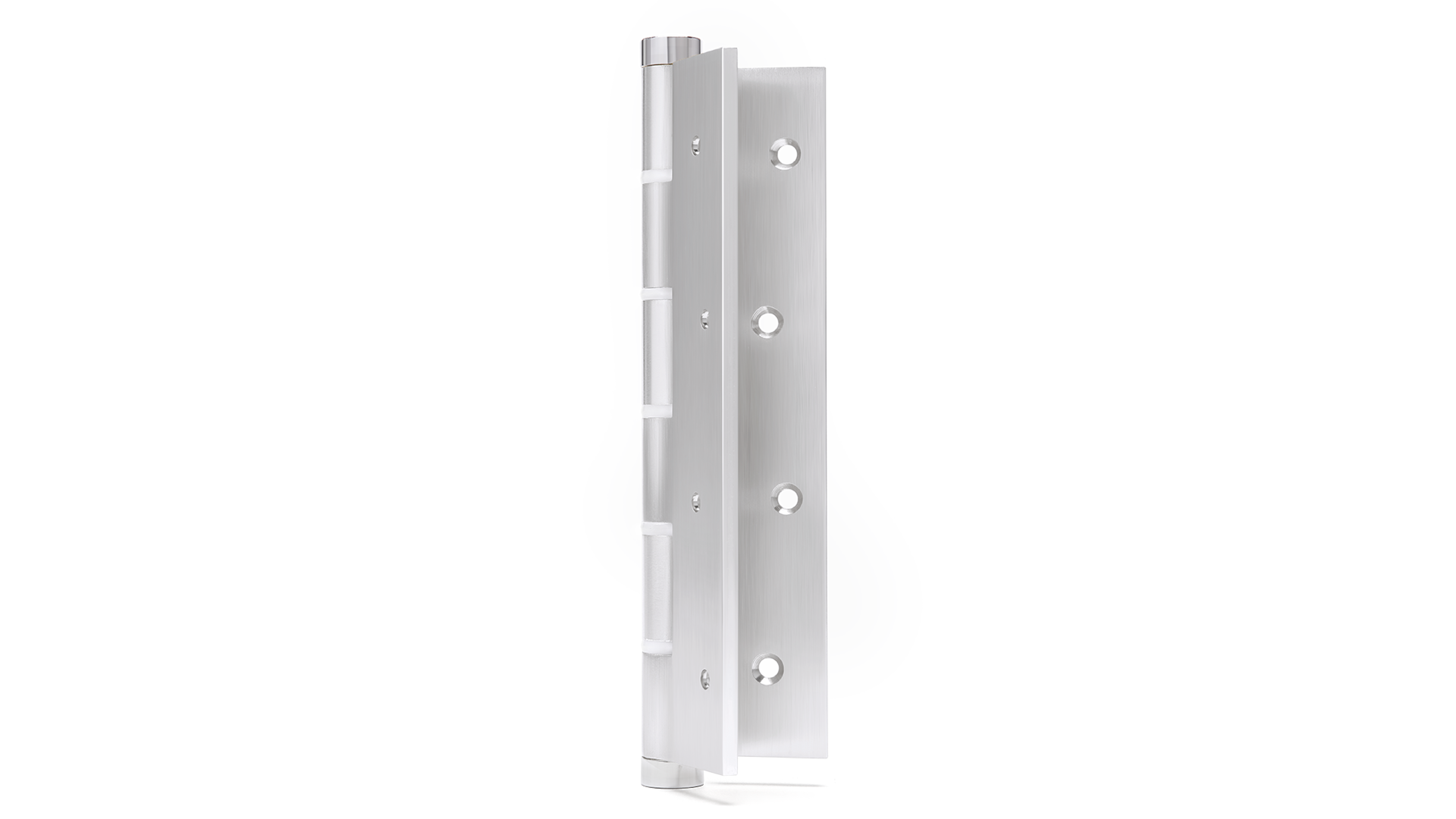

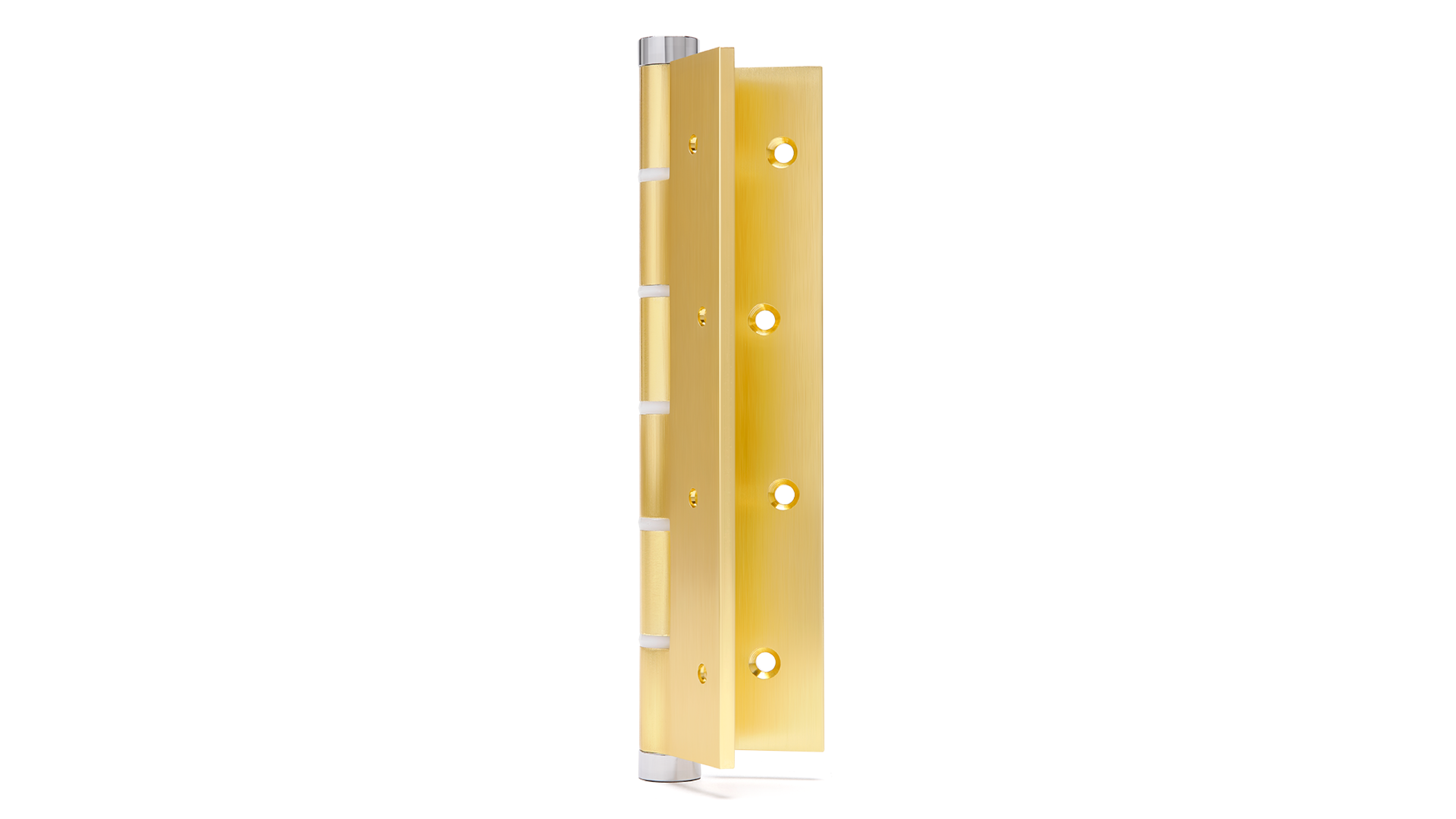

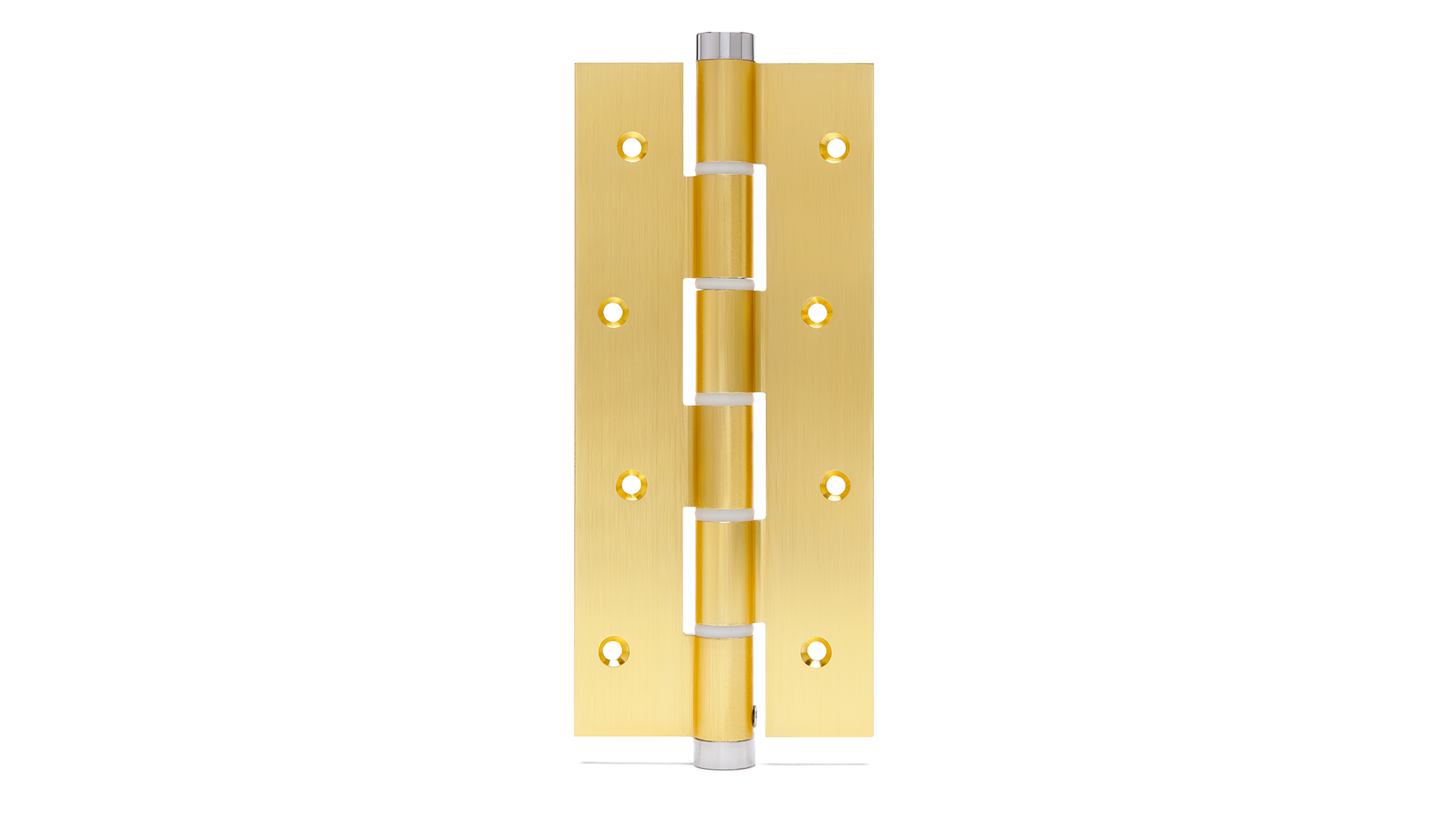

The C168 is crafted from lightweight aluminum alloy, delivering exceptional corrosion resistance and high load capacity, making it ideal for both indoor and outdoor humid environments. It offers surface-mounted installation, along with adjustable closing force and an automatic return feature, providing enhanced convenience and customization for users.
55 kg (121 lbs) with 2 installed

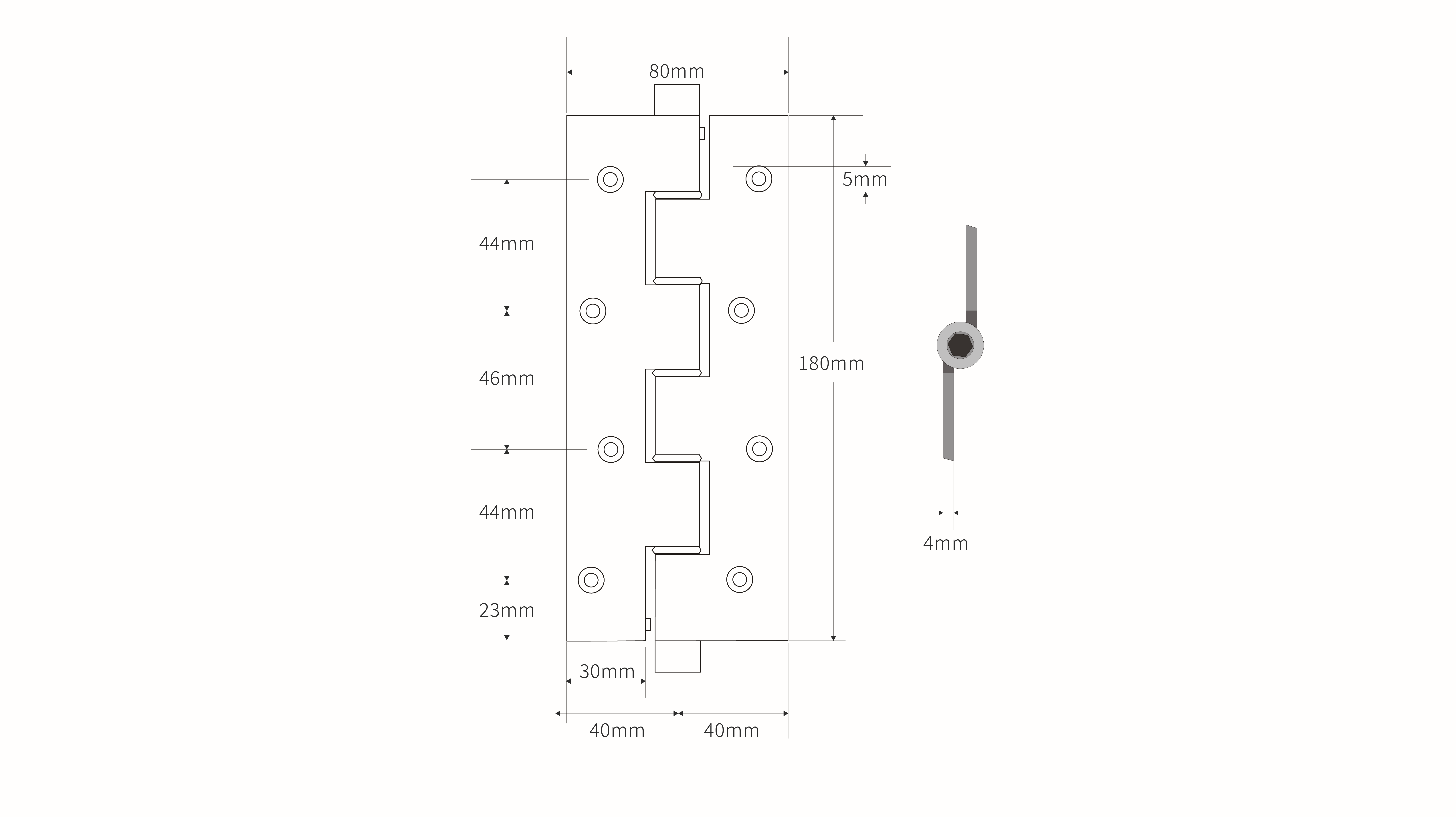

180 mm (7.086 inches)
Frame: 4 mm (0.157 inches) / Leaf: 4 mm (0.157 inches)
36 mm (1.417 inches)
180°
For wood, casing, steel and aluminum frames
Made in aluminum alloy
Working cycles: up to 200,000
Automatic return:✓

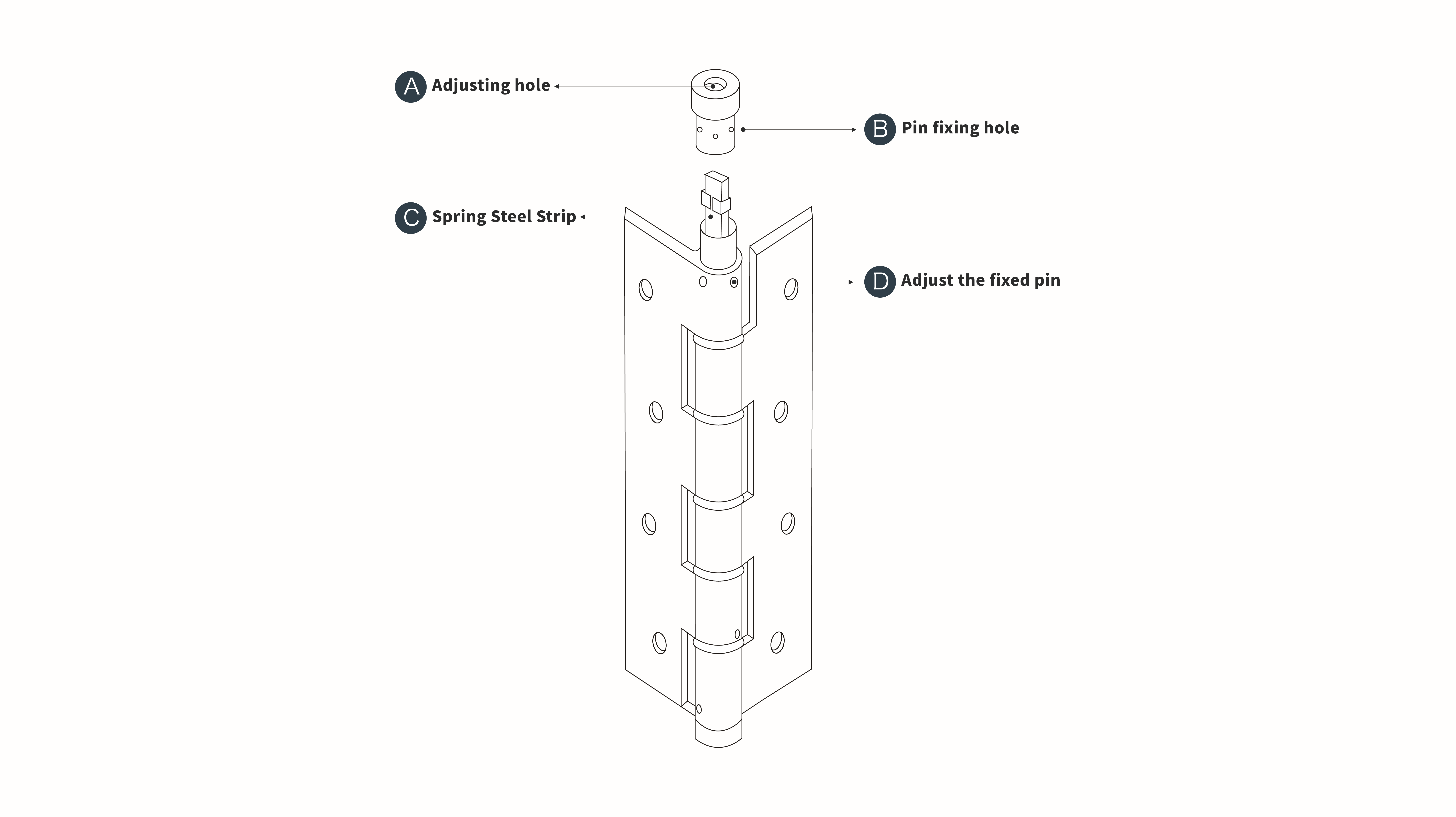

Adjustable return power:✓
