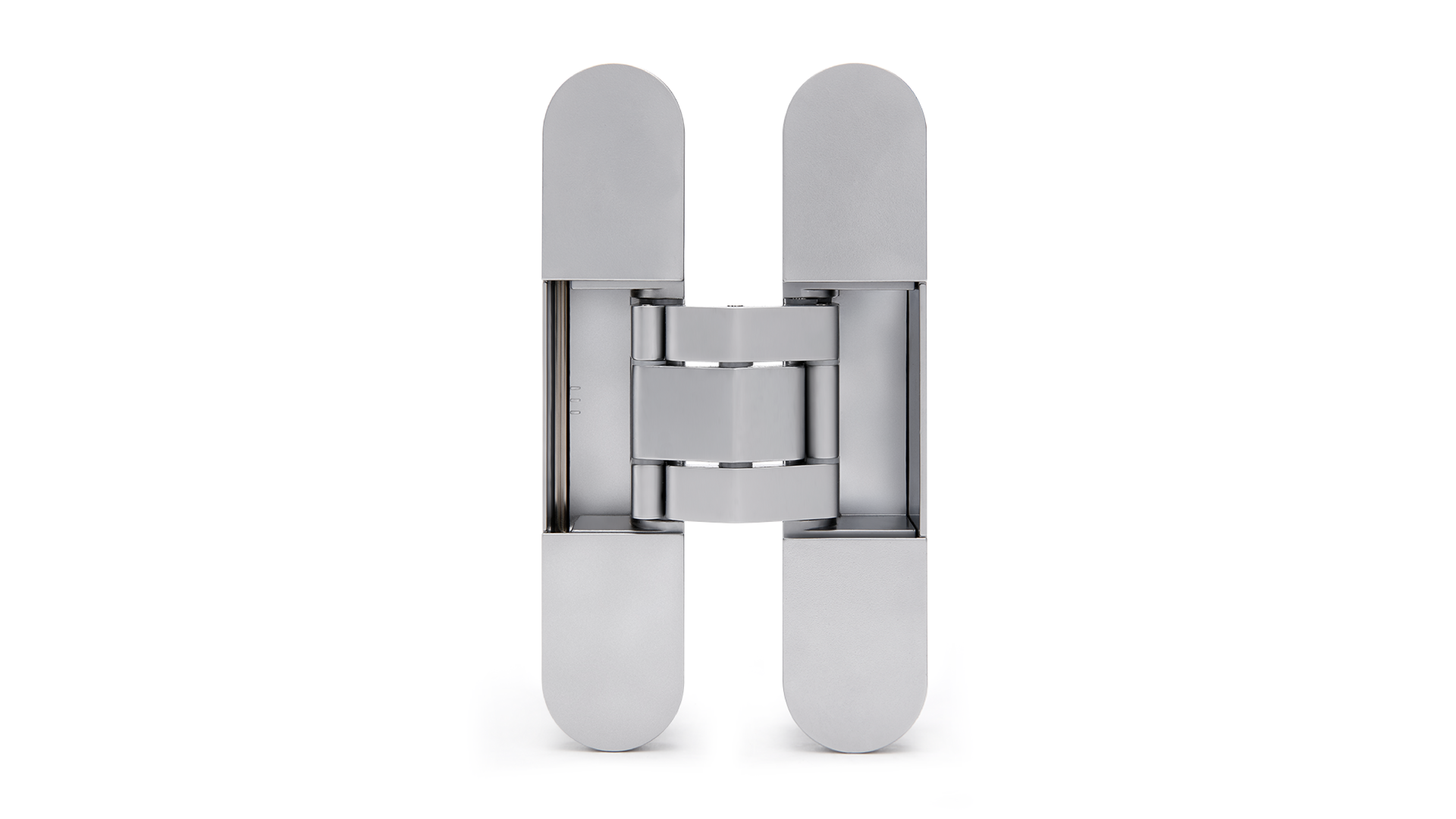

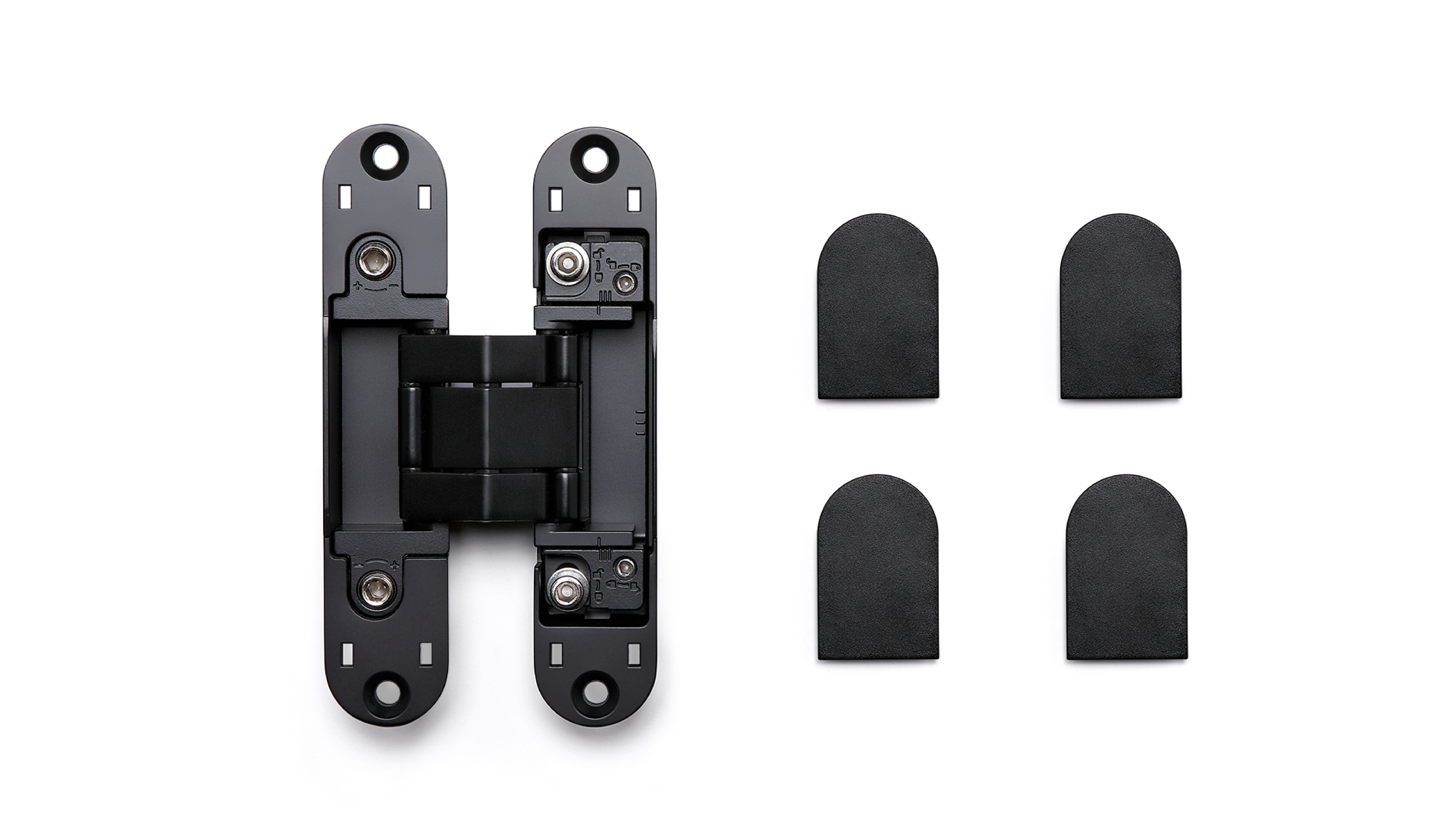

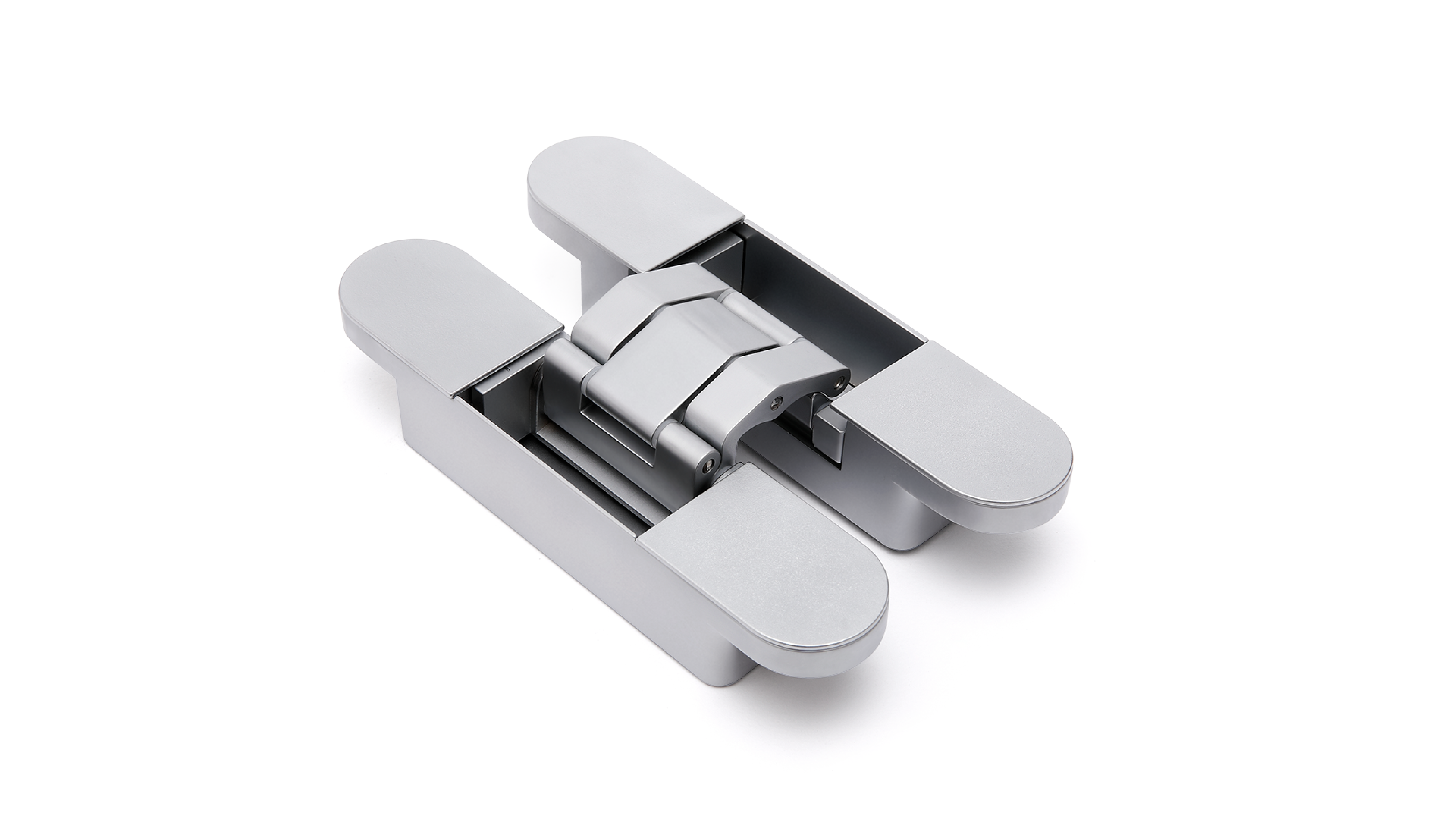

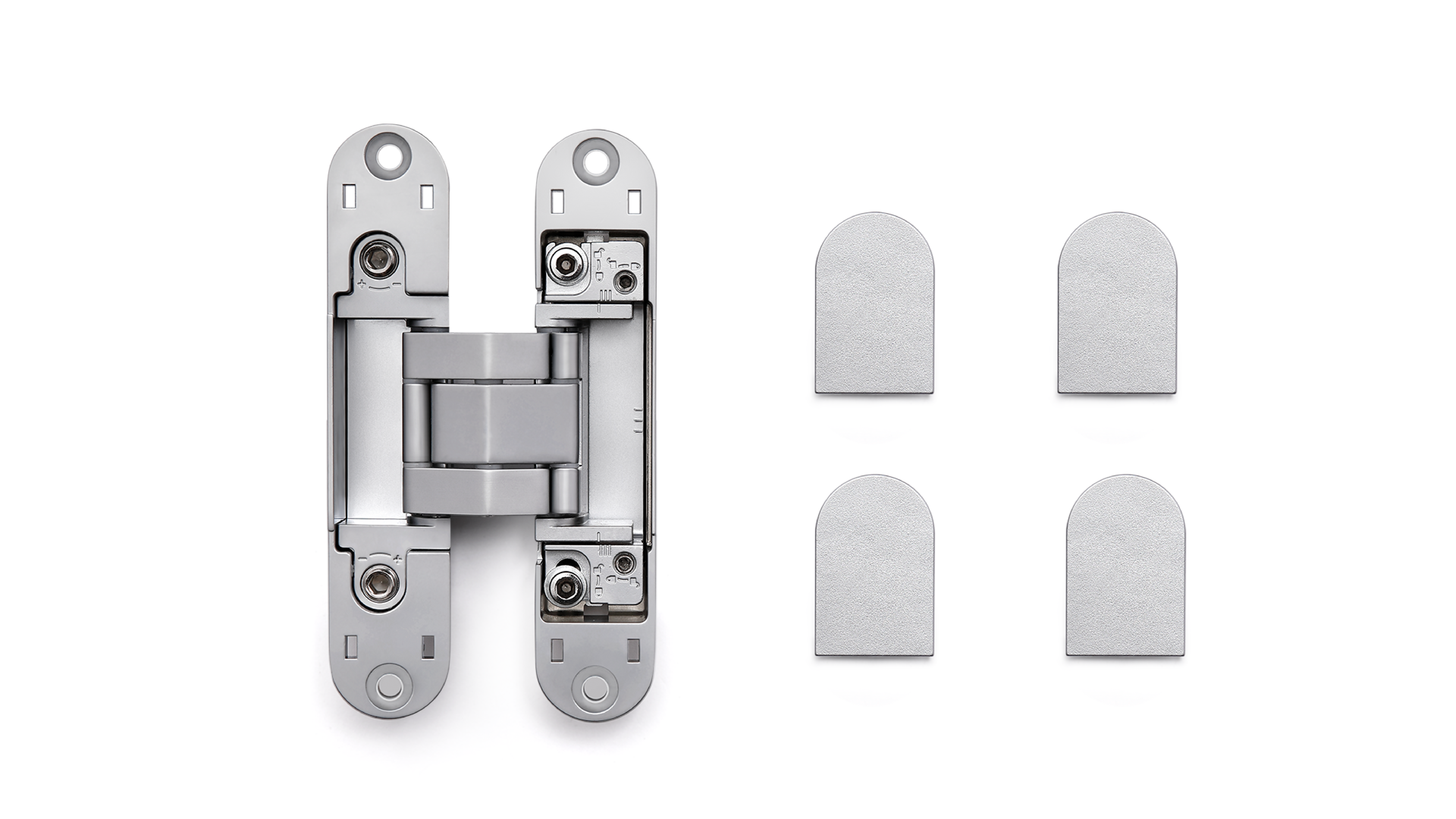

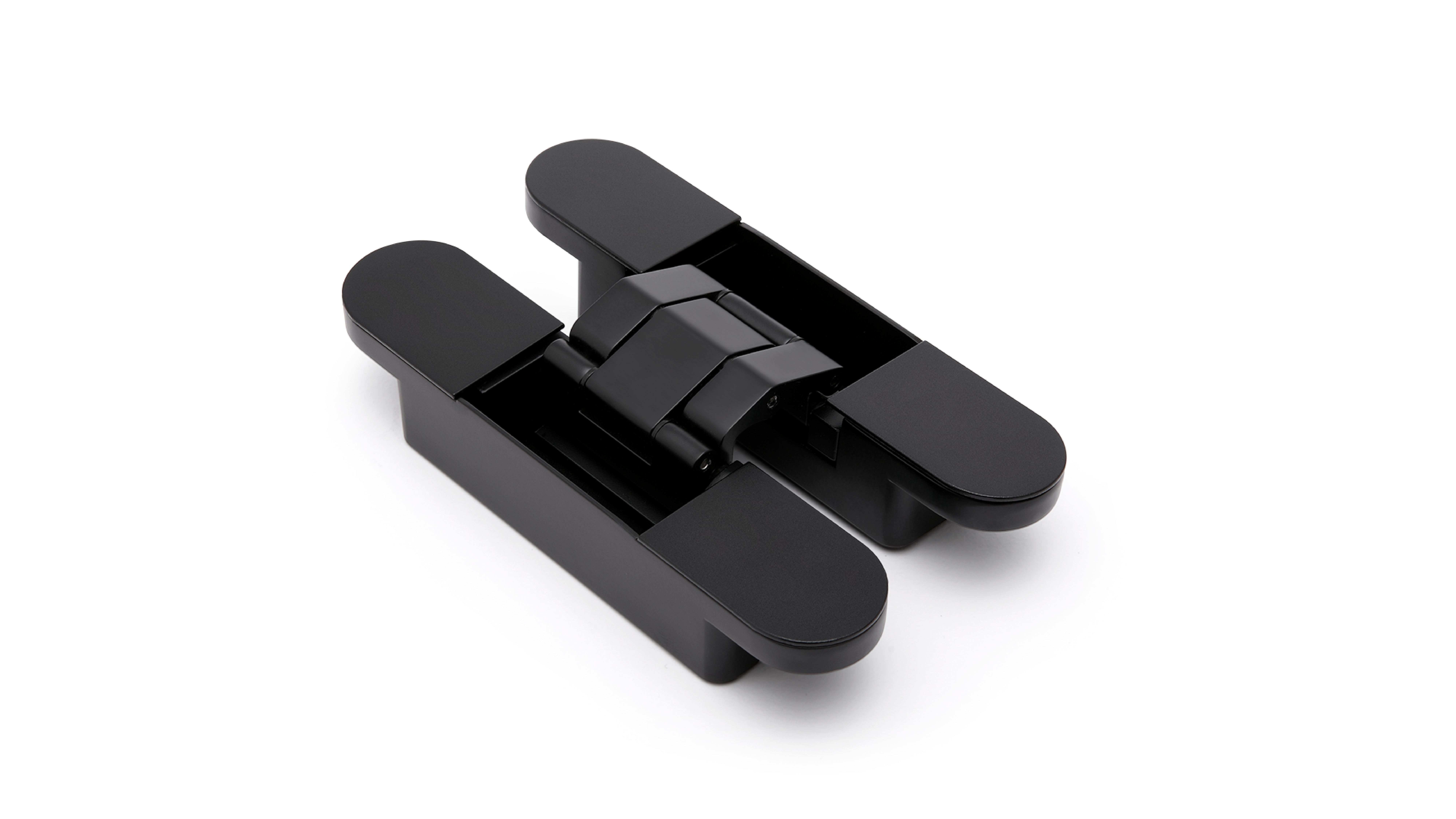

The C135 3D is designed for completely concealed installations on flush residential doors. It requires a minimum door panel thickness of 36 mm (1.417 inches) and offers a load capacity of up to 60 kg (132 lbs) with 2 installed.

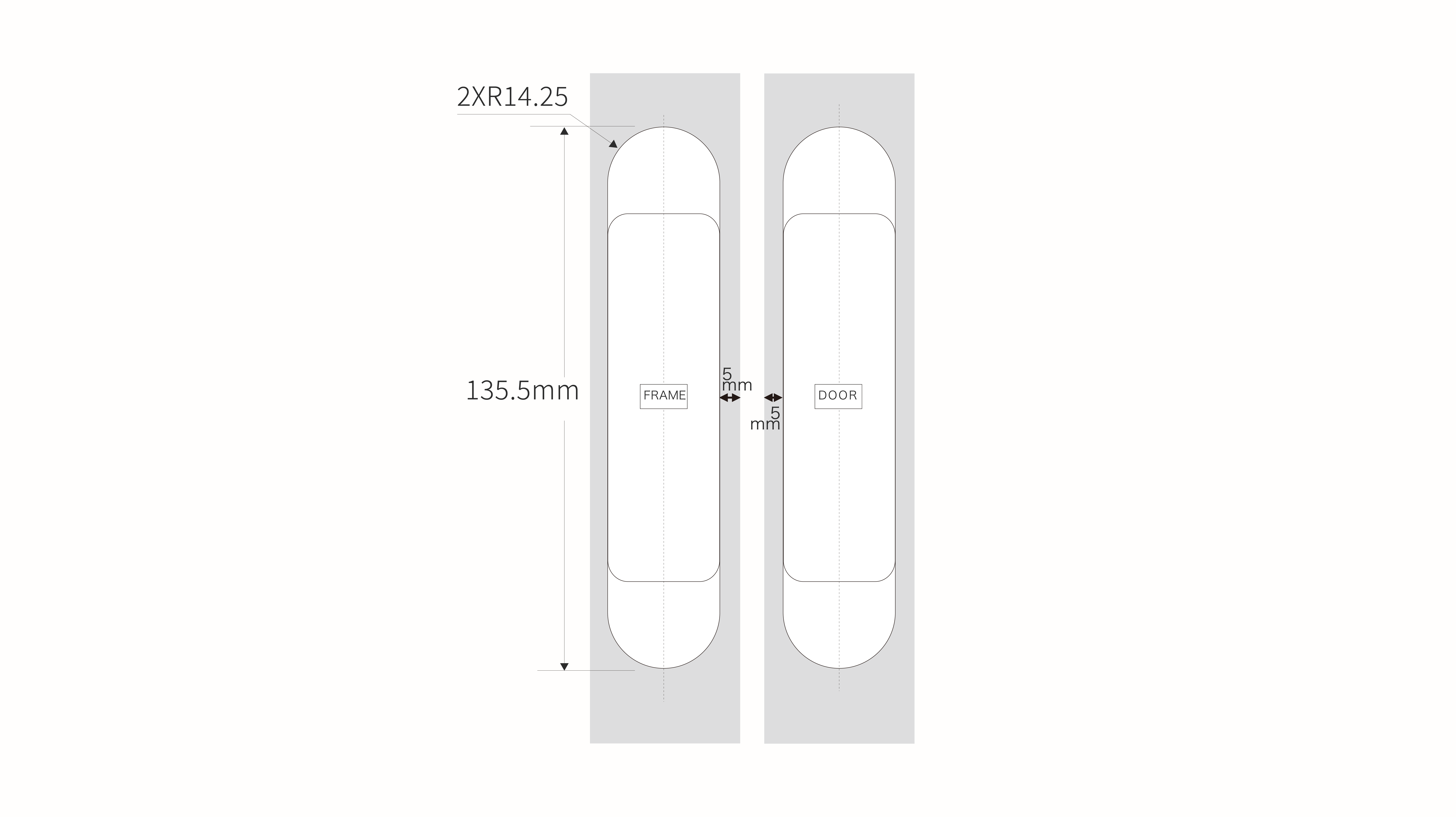

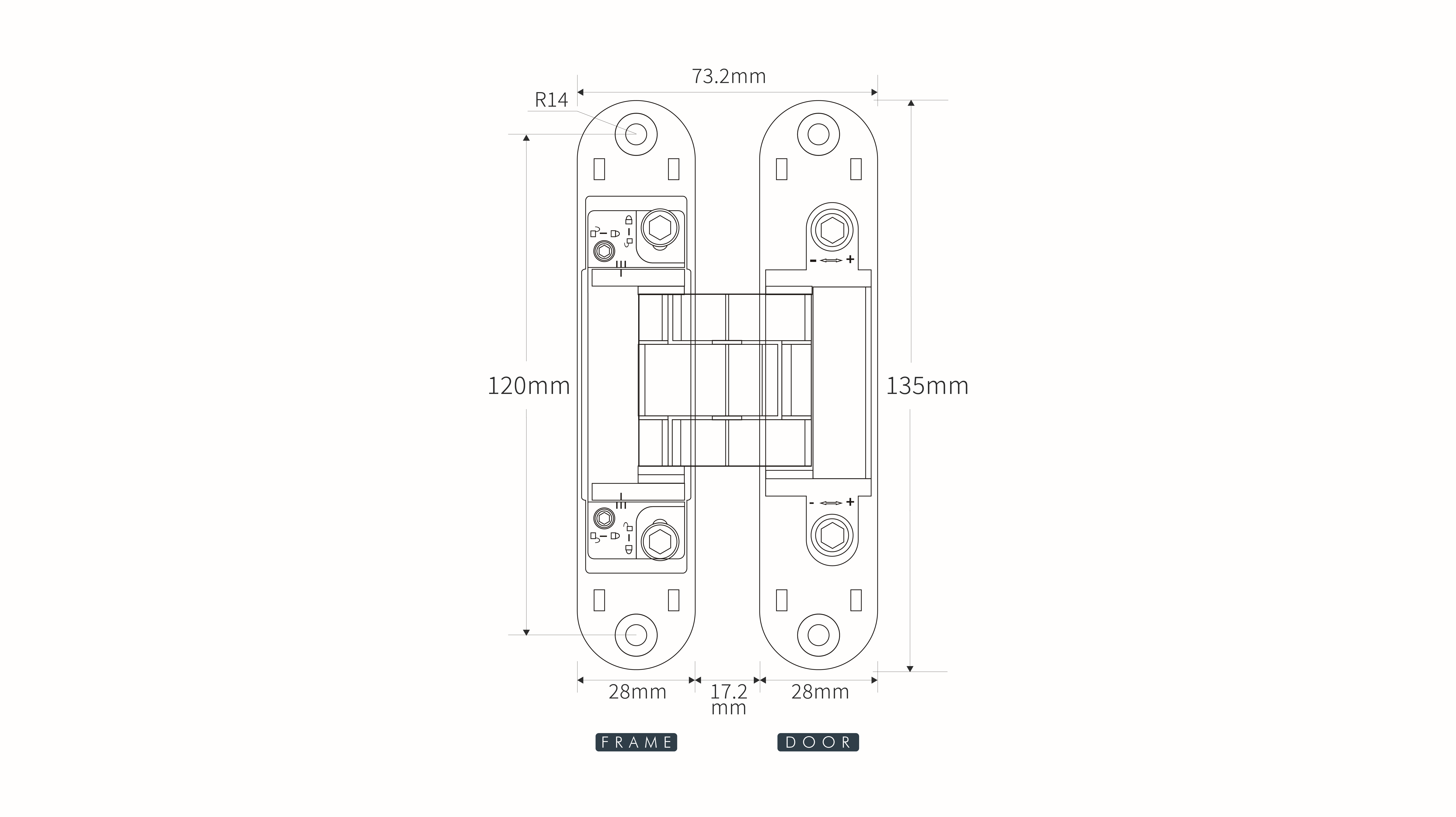

135 mm (5.314 inches)

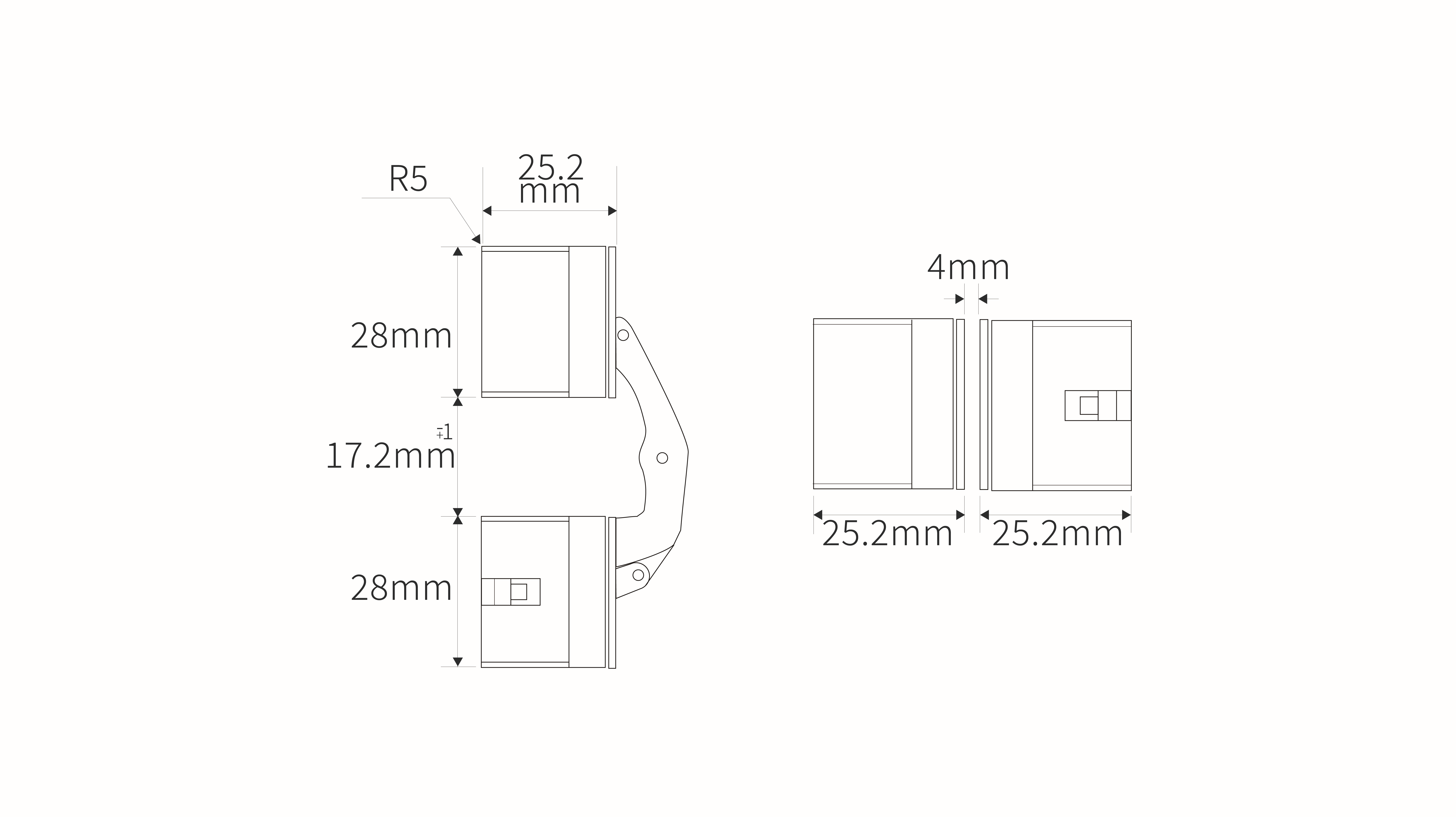

Frame: 28 mm (1.102 inches) / Leaf: 28 mm (1.102 inches)
Frame: 25.5 mm (1.003 inches) / Leaf: 25.5 mm (1.003 inches)
36 mm (1.417 inches)
28 mm (1.102 inches)
180°
For wood, casing, steel and aluminum frames
Made in zinc alloy

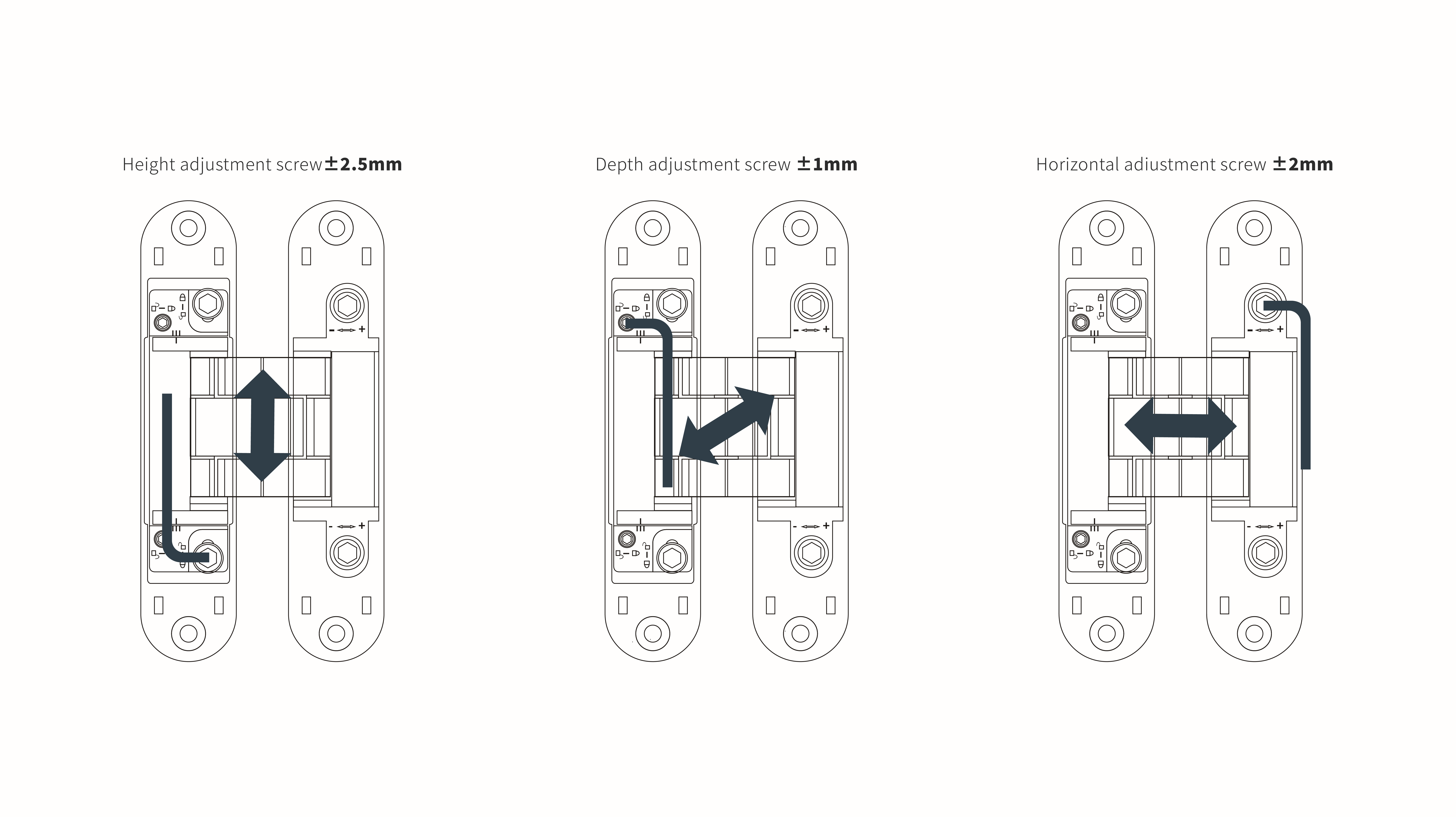

Allows for easily continuous adjustment in 3 dimensions
Height: + /– 2.5 mm
Depth : + /– 2 mm
Side: + /– 2 mm
