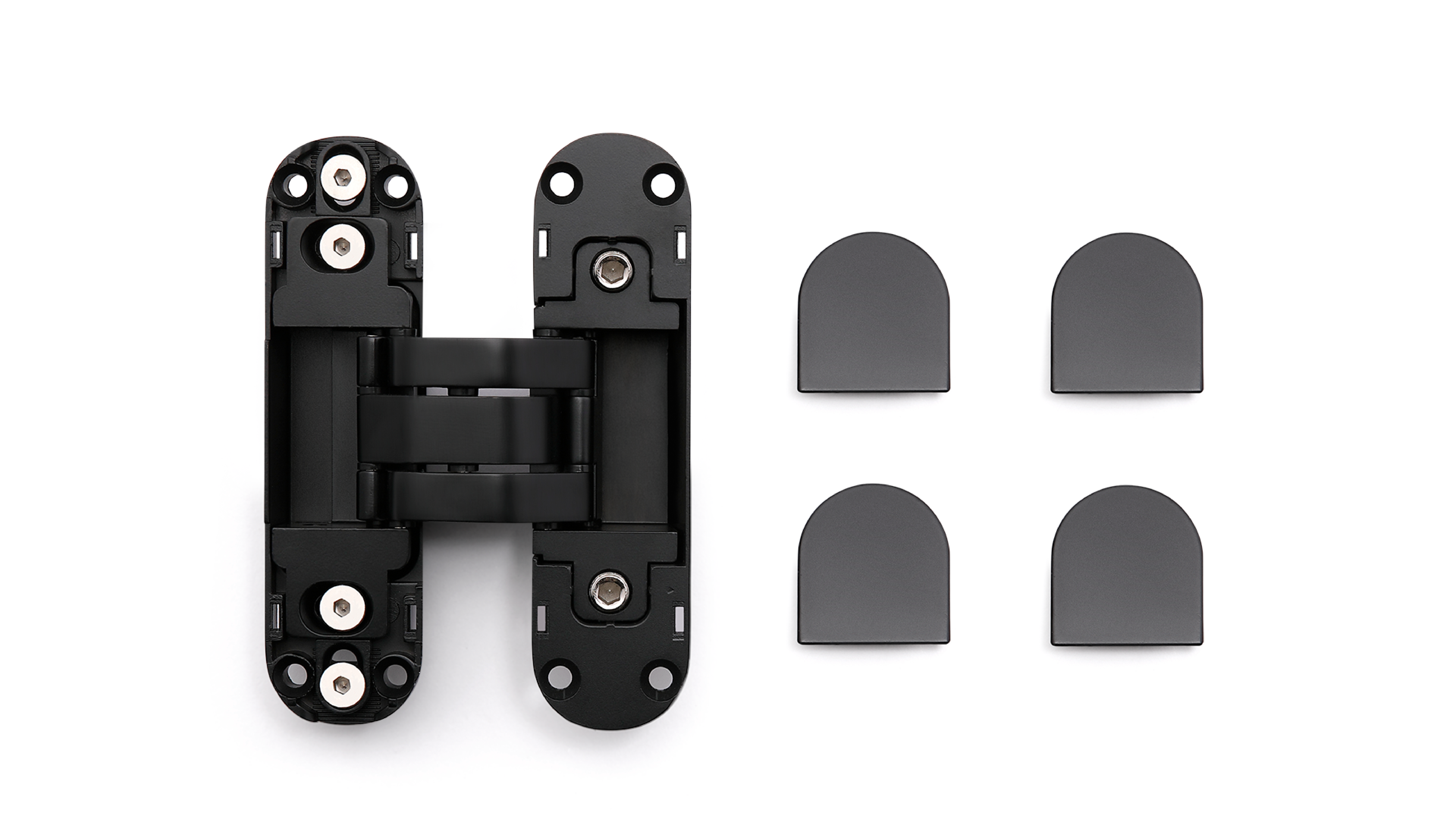

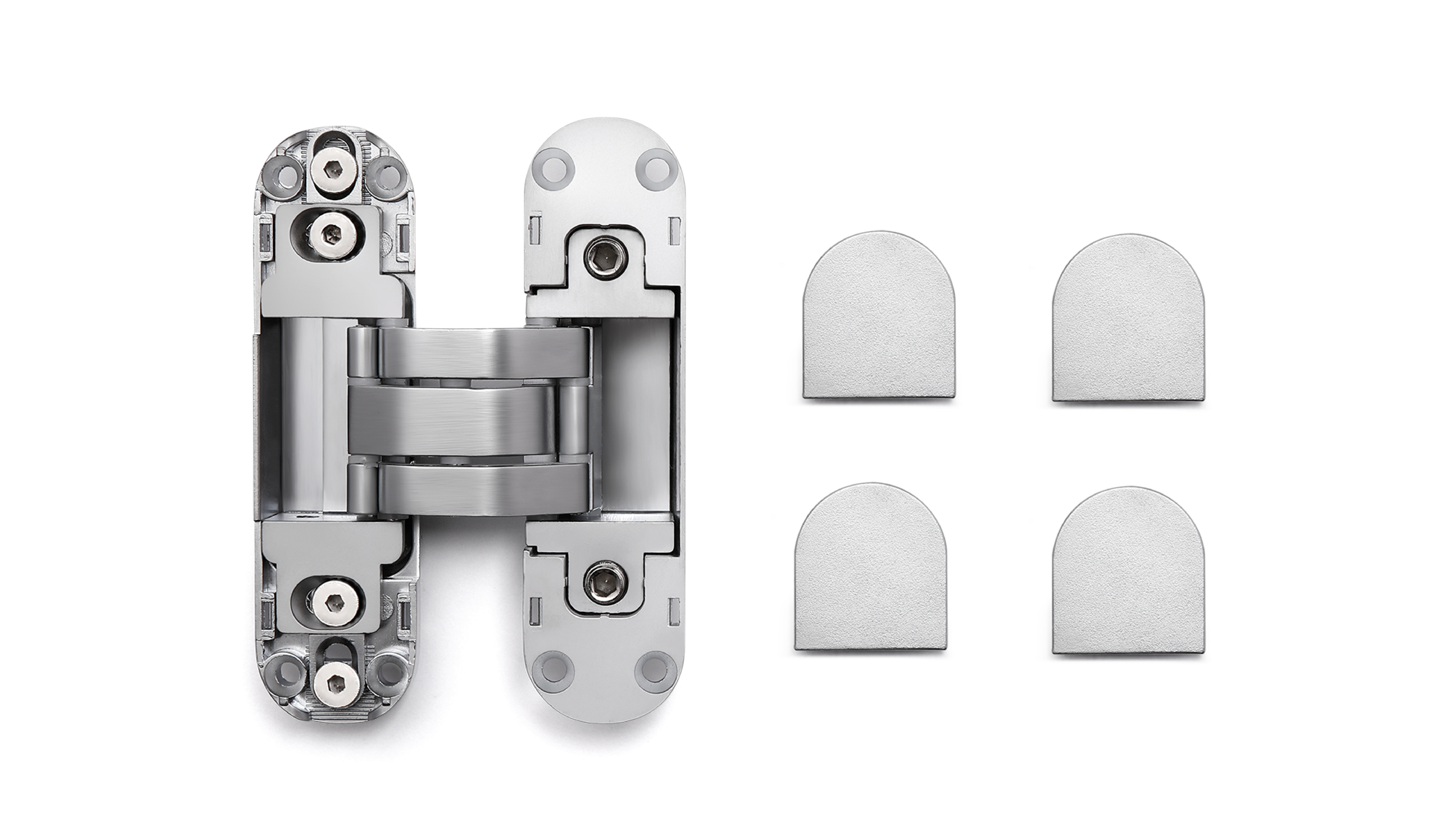

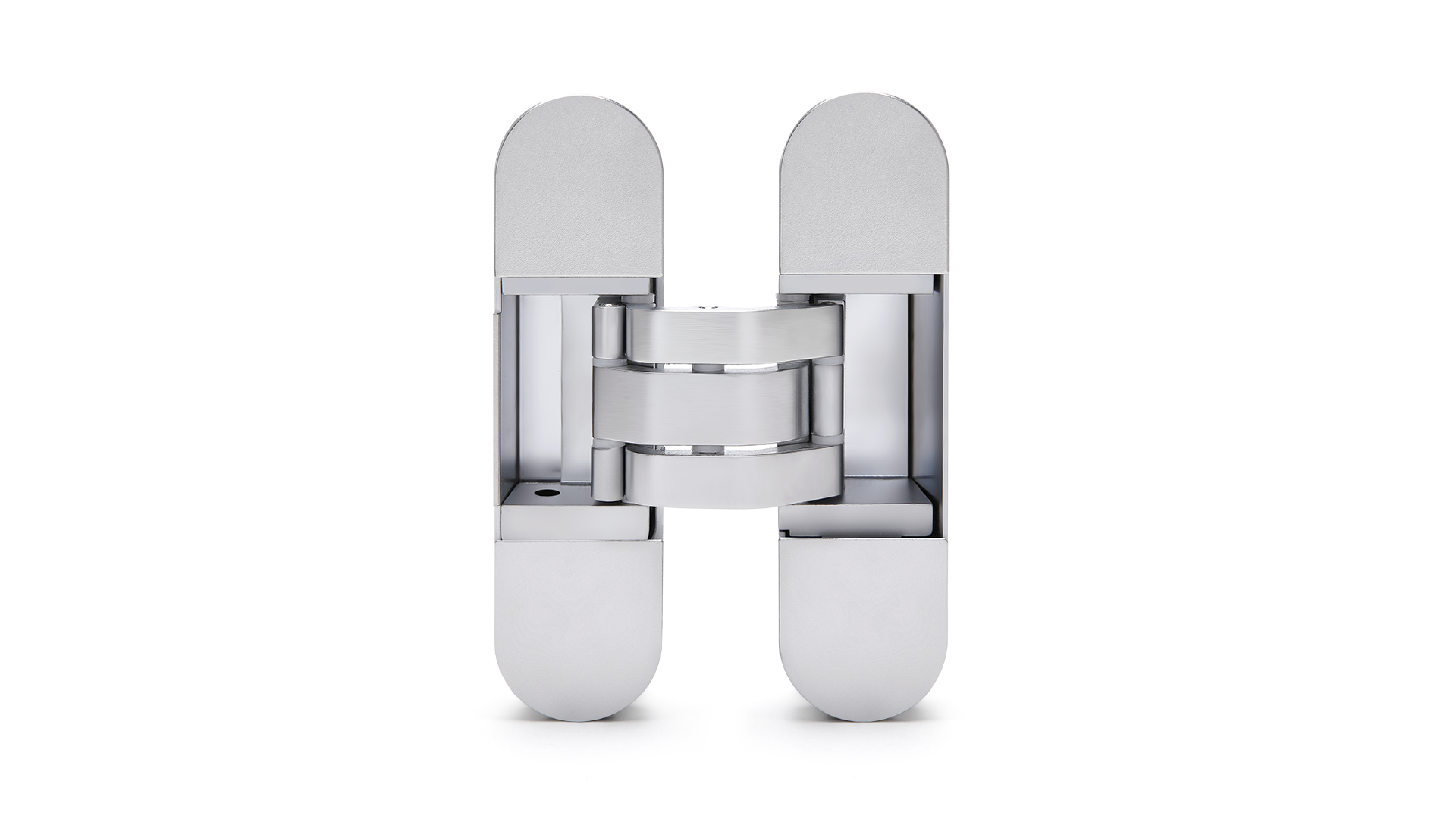

The C128-113 3D is designed for completely concealed installations on flush residential doors, both unrebated and rebated. It requires a minimum door panel thickness of 36 mm (1.417 inches) and offers a load capacity of up to 60 kg (132 lbs) with 2 installed.

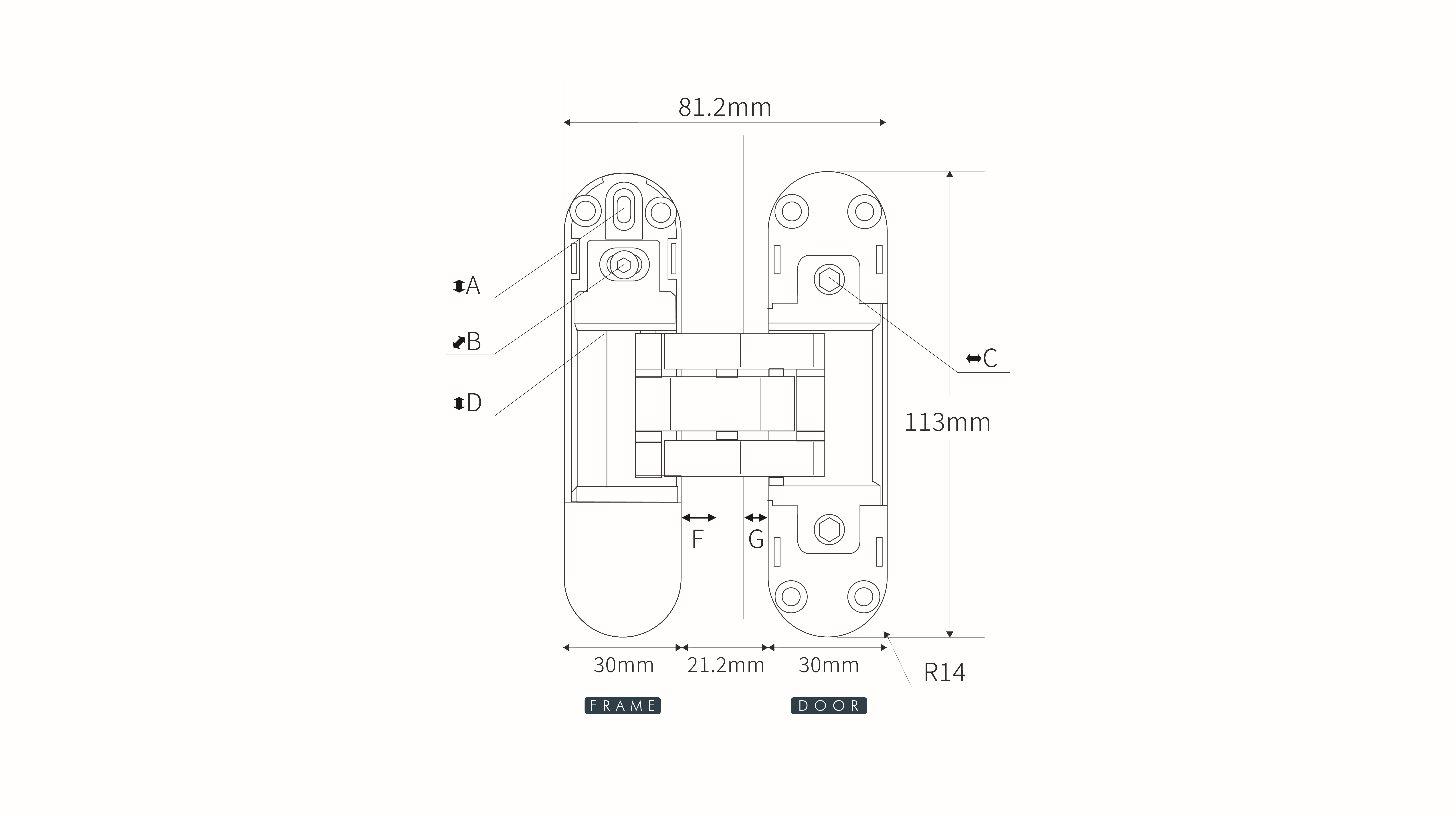

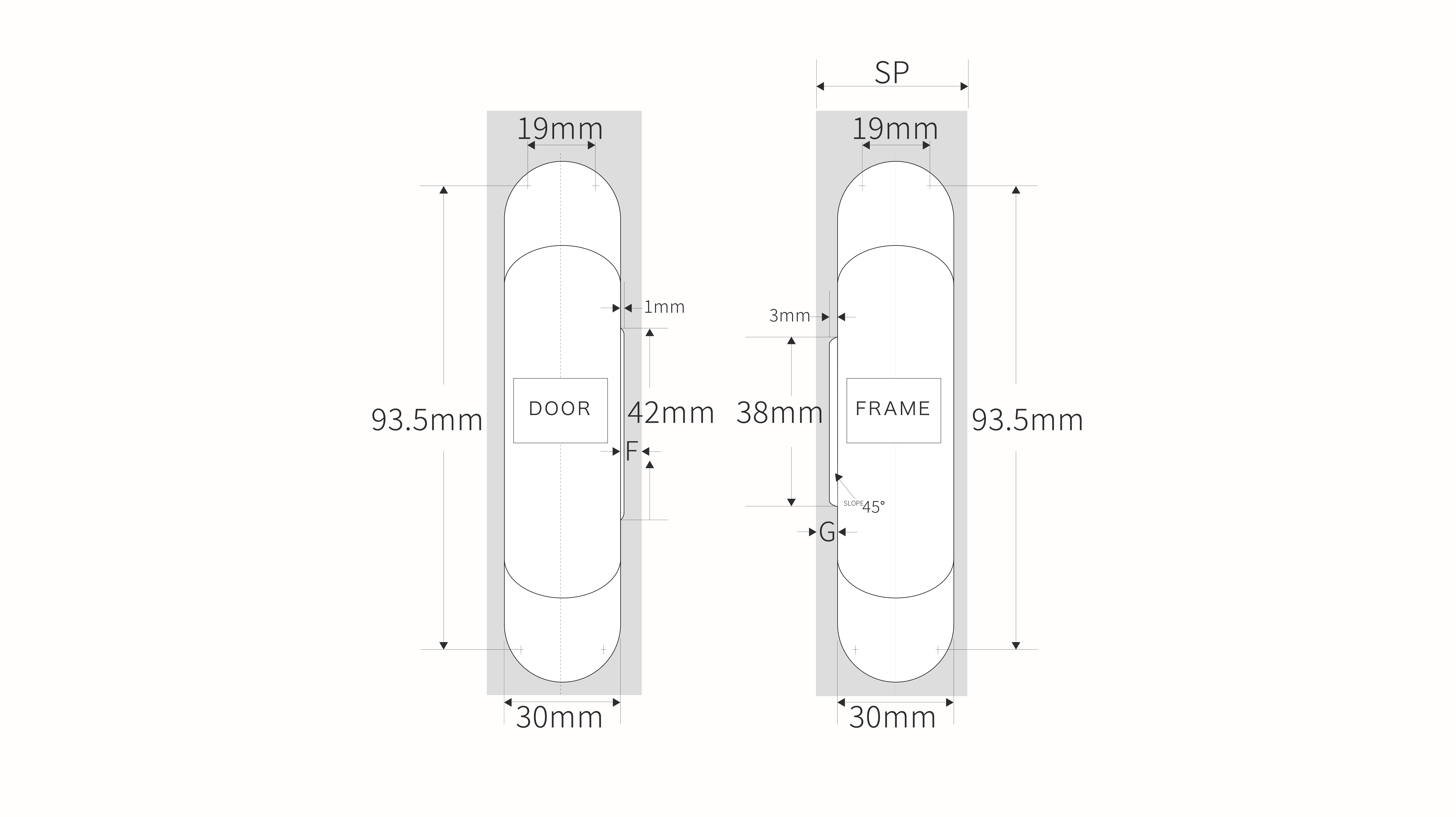

113 mm (4.448 inches)

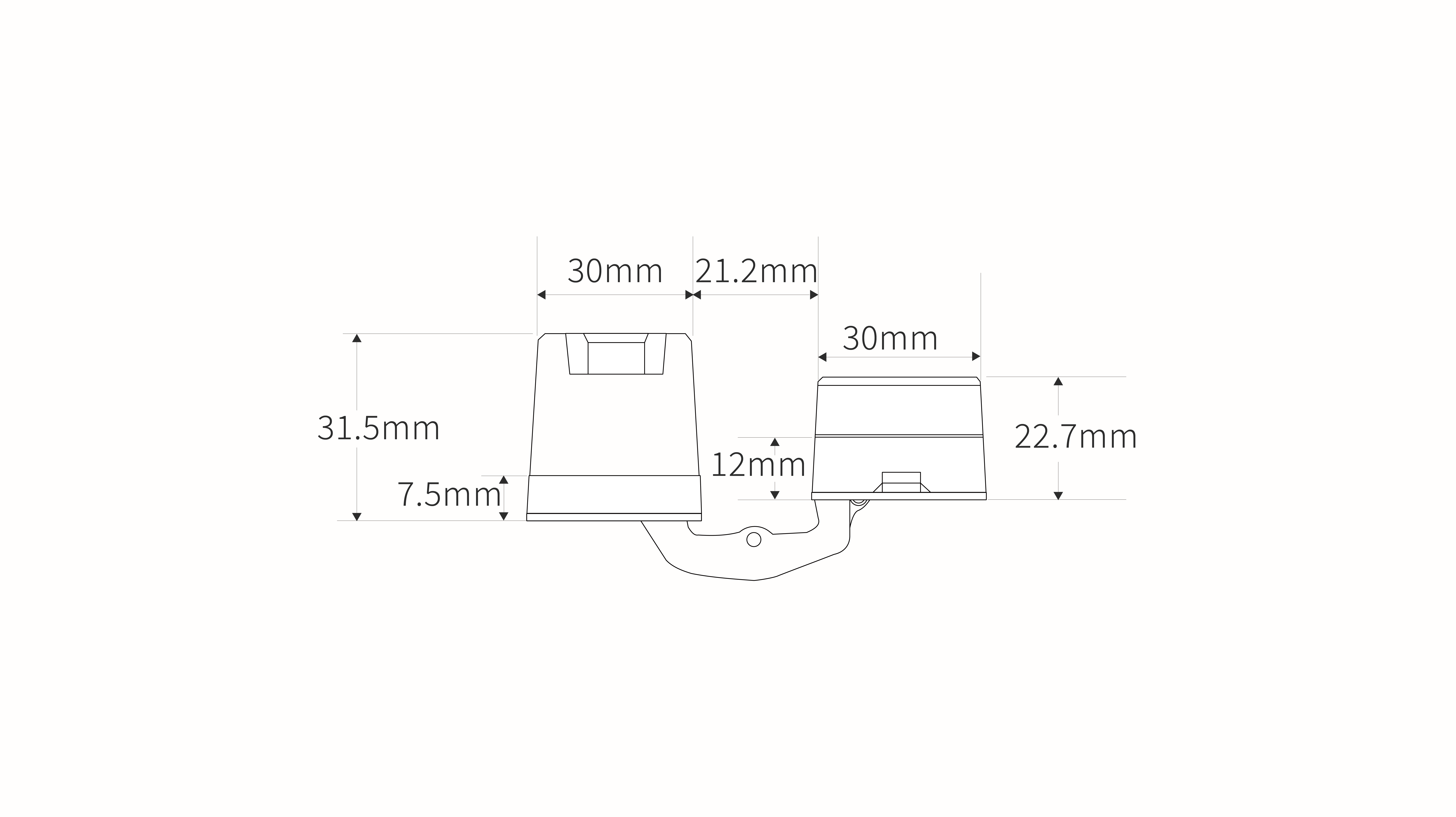

Frame: 30 mm (1.181 inches) / Leaf: 30 mm (1.181 inches)
Frame: 22.5 mm (0.885 inches) / Leaf: 32 mm (1.259 inches)
36 mm (1.417 inches)
28 mm (1.102 inches)
180°
For wood, casing, steel and aluminum frames
Made in zinc alloy

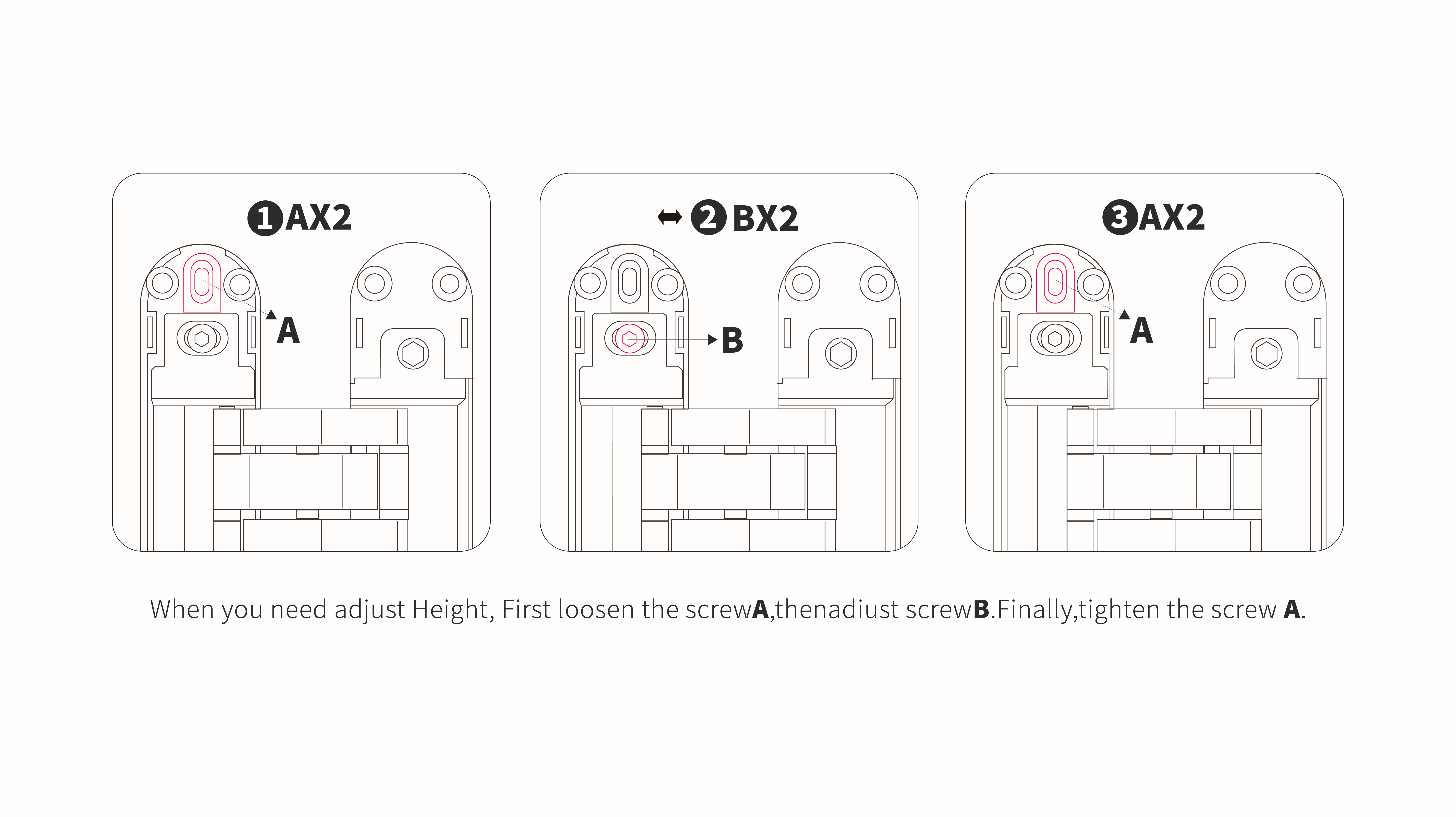

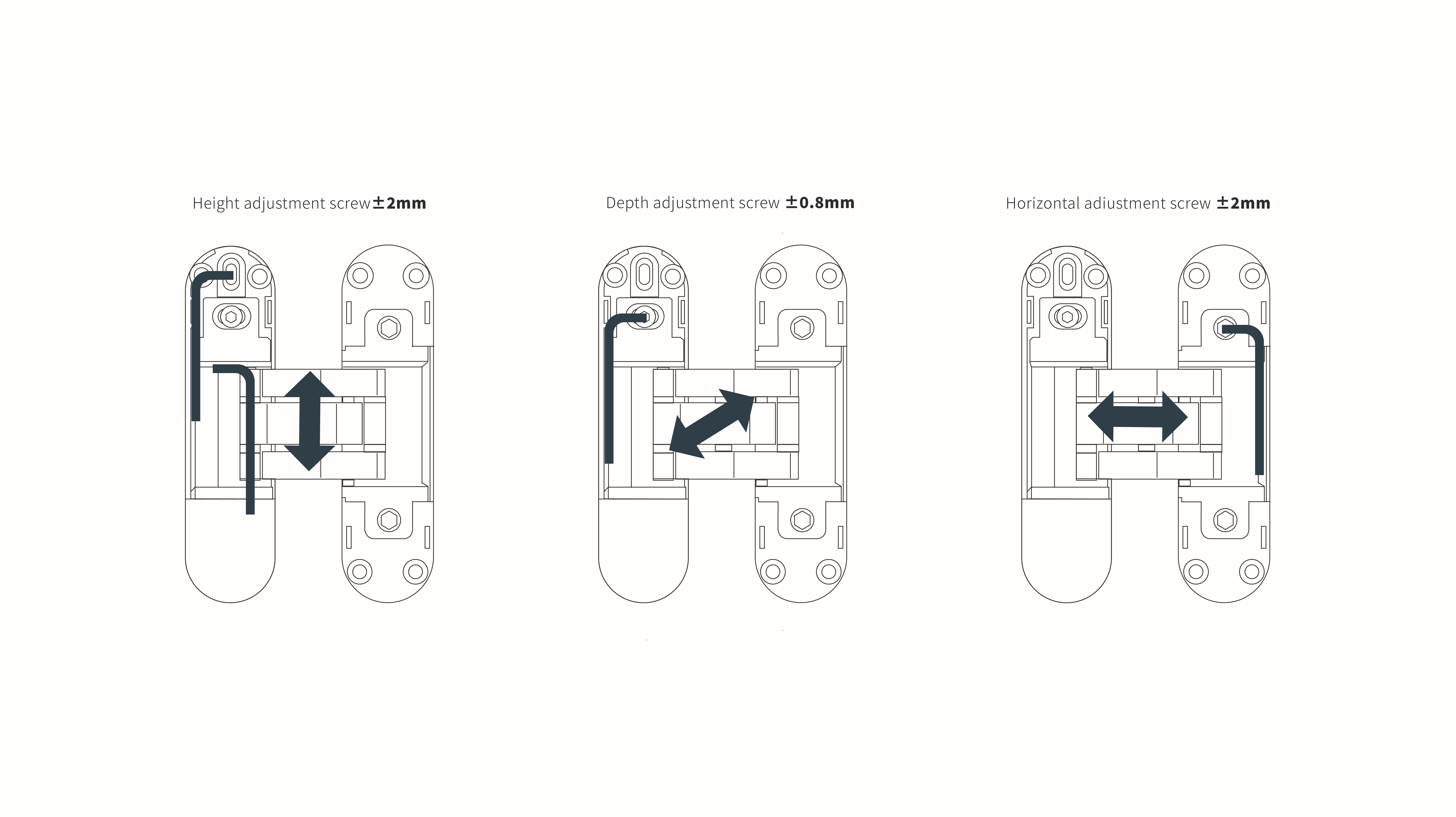

Allows for easily continuous adjustment in 3 dimensions
Height: + /– 2 mm
Depth : + /– 0.8 mm
Side: + /– 2 mm
