When it comes to heavy-duty doors—whether in commercial buildings like hotels and office lobbies or residential spaces with grand entryways—ordinary hinges often fall short. These doors require hardware that can support extreme weight, ensure smooth operation, and adapt to flexible design needs. As a seasoned door hinge manufacturer established in 2003, with ISO 9000 certification and a leading position in China’s industry, We at SMED understand this challenge deeply.
Why 360-Degree Rotation Matters for Heavy-Duty Doors
For heavy-duty doors, flexibility in movement is just as important as weight support—and 360-degree rotation delivers exactly that. Traditional hinges limit doors to a fixed opening angle (usually 90 to 180 degrees), which can be restrictive in spaces that need seamless traffic flow, like commercial lobbies or residential great rooms. The TD006-A’s full 360-degree rotation eliminates this limitation: it allows the door to swing freely in any direction, making it ideal for one-way, two-way, or even multi-directional traffic areas. For example, in a busy hotel lobby with a large entry door, the 360-degree pivot lets guests enter and exit without struggling with a door that only opens one way.

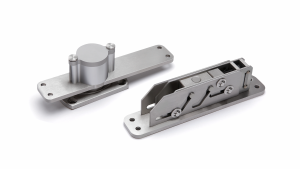

TD006-A’s Heavy-Duty Performance: Weight Capacity and Durability
The TD006-A’s biggest strength lies in its heavy-duty performance—starting with its impressive weight capacity. This hinge can support doors weighing up to 500 kg (1102 lbs), a feat that ordinary hinges can’t match. This makes it suitable for even the thickest, densest doors, including wood doors, framed glass doors, and structural doors commonly used in commercial and high-end residential projects. To achieve this capacity, we engineered the TD006-A with precision: its pivot points (available in side and middle configurations) distribute weight evenly, preventing sagging or sticking—even after years of use. Durability is another key factor: the hinge is built to withstand up to 1,000,000 working cycles, meaning it can handle daily use in high-traffic areas without losing performance.
Flexibility and Ease of Installation: TD006-A’s Practical Advantages
Beyond performance, the TD006-A offers practical advantages that make it a favorite among installers and designers. First, it’s highly flexible in terms of door compatibility: it works with wood doors, framed glass doors, and other common door types, fitting doors with a minimum thickness of 40 mm (1.574 inches) and maximum dimensions of 160 x 39 x 32 mm (6.3 x 1.5 x 1.2 inches). This versatility means it can be used across multiple projects, from a residential pivot door to a commercial entryway. Second, it’s designed for ease of installation: its concealed design creates a sleek, minimalist look (no visible hardware to disrupt the door’s aesthetic), and it includes axial/plumb adjustment of +/- 5 mm—allowing installers to fine-tune the door’s alignment for smooth operation. We also offer free swing and single/double acting options, so clients can customize the hinge to their specific needs. As someone who provides personalized consulting services, we often hear from installers that the TD006-A’s user-friendly design saves them time and reduces frustration on the job.
Conclusion
For anyone working with heavy-duty doors, the TD006-A pivot hinge is more than just hardware—it’s a solution that combines strength, flexibility, and durability. Its 360-degree rotation, 500 kg weight capacity, and long-lasting performance make it ideal for both residential and commercial applications, while its easy installation and versatile design simplify projects for installers and designers. Backed by our professional after-sales support, the TD006-A aligns with our vision to improve human living scenarios by providing reliable, comprehensive door hinge solutions.
